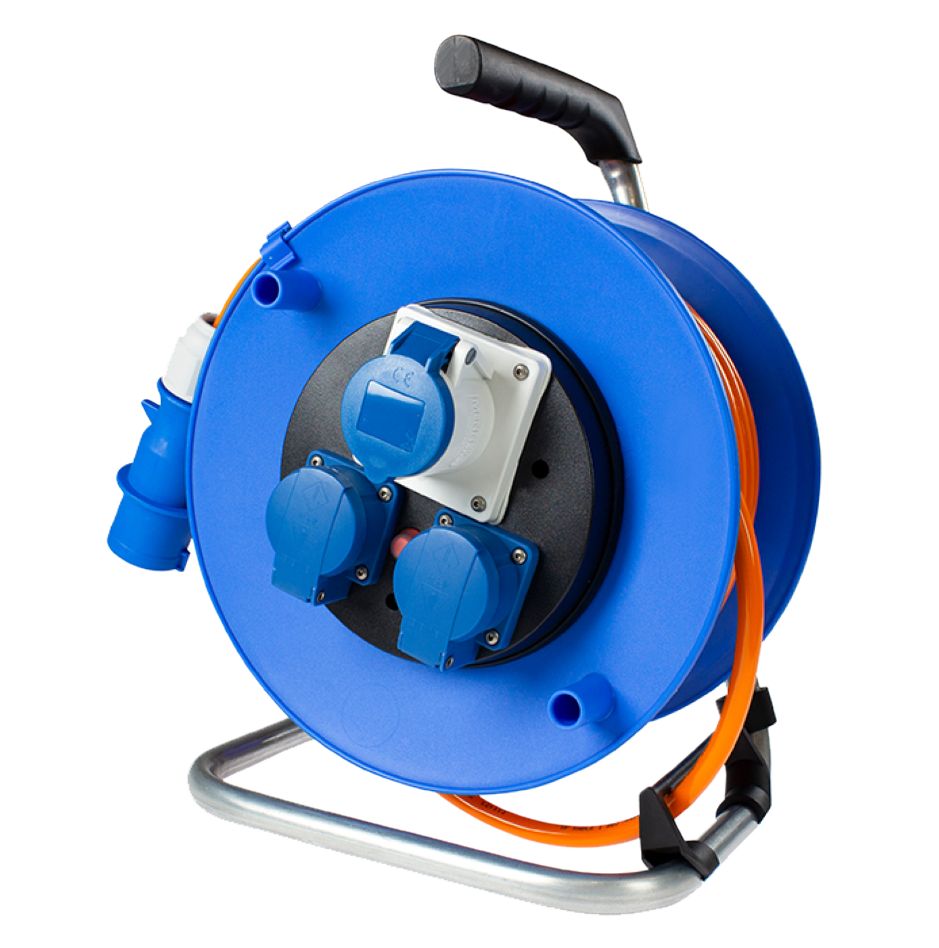

Schwabe 10170 CEE Camping Powerlight Cable Reel 230V/16A IP44 H07BQ-F 3G2.5 25m
Reel made of robust, break-resistant plastic. Ergonomically shaped handle and cable guide. Stable, shock-absorbing, and galvanized frame with locking brake. Polyurethane cable is oil-resistant, extremely wear-resistant, for temperatures from -40 to 80 °C. Built-in thermal protection switch, "powerlight" voltage indication: red LED lights up if voltage is present.
Special features
- Cable type: 25m H07BQ-F 3G2.5 orange polyurethane cable
- Connection: CEE plug 230V, 16A, 3-pole with "powerlight" voltage indicator
- Sockets: 1 x CEE 230V/16A 3-pole, 2 x grounded 230V, with hinged covers
- Protection: Built-in thermal protection switch
- Maximum load: 230V/16A, 3500W
- Application: Camping, permanent outdoor use
- IP44: Foreign object and splash-proof
- Tested according to: EN 61242, DIN VDE 0620-2-1, DIN EN 50525-2, IEC 60309
- Dimensions: Ø285 mm
- Weight: approx. 7.5 kg
Technical data
- Cable type: Polyurethane
- Number of conductors: 3
- Conductor cross-section: Ø 2.5 mm²
- Length: 25 m
- Protection class: IP44
- Color: Orange
- Number of CEE poles: 3
- Nominal voltage (V): 230V
- IEC current rating: 16 A
- With cover: Yes
- Number of sockets: 3
- With reel: Yes
