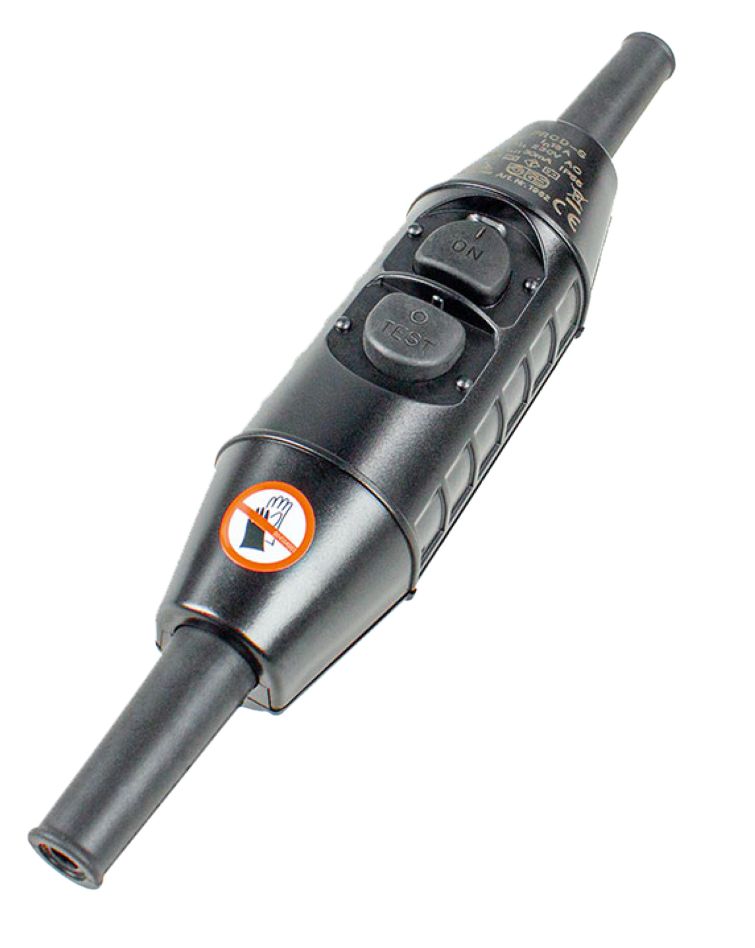

Schwabe 45305 PRCD-S Residual Current Circuit Breaker 230V 30mA
Fixed connection in the power line, cable connections on both sides. Fault currents are detected in a fraction of a second, after which the power supply is interrupted. Reliable protection against dangerous electric shocks.
Special features
- Nominal fault current: 30 mA
- Trip-off time: < 30 ms
- Power: 230 V, 16 A, max. 3,500 W
- Protection class: IP55
- Standard: DIN VDE 0661:1988-04 WARNING: The PRCD-S ON button must be pressed with bare fingers to activate the protection function. Therefore, do not use gloves!
Technical data
- Nominal Voltage (V): 230V
- IEC current rating: 16 A
- Protection class: IP55
- Color: Black
- Number of poles: 2
- Nom. Fault current: 0.03 A
