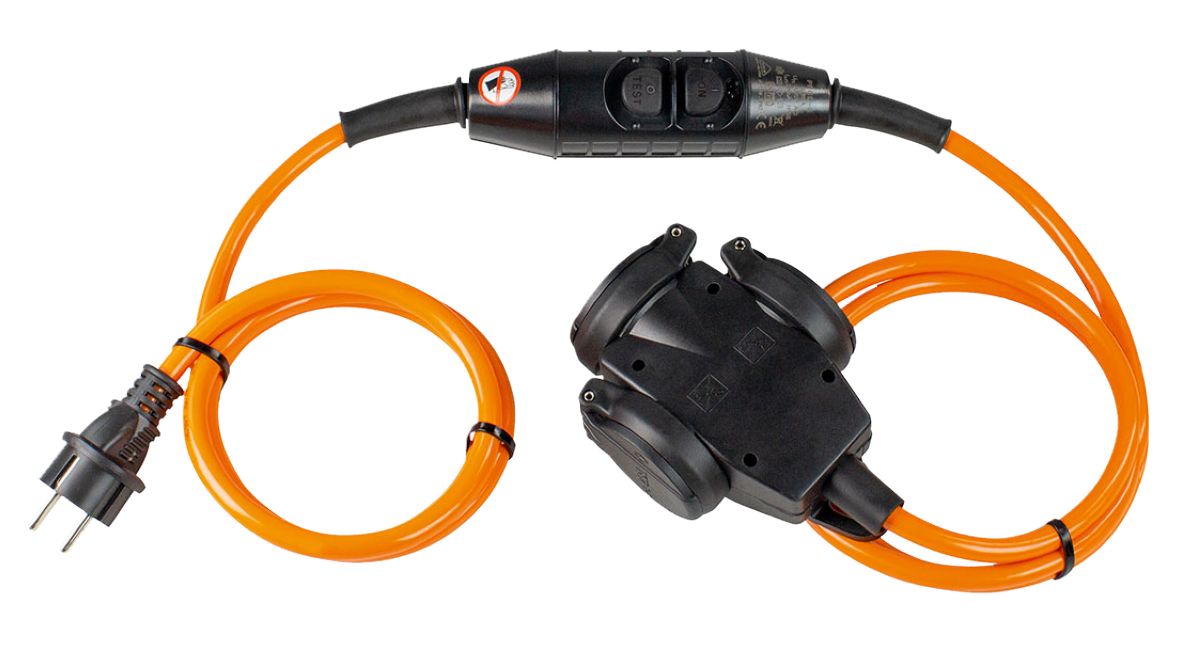

Schwabe 45460 Extension Cable PUR PRCD-S H07BQ-F 3G2.5 3m with Distribution Box 230V/16A IP44 3-way
PRCD-S (Portable Residual Current Device Safety), or: Portable residual current device with earth conductor detection. Protects people against electrical accidents and is connected between the socket and the electrical load. With PRCD-S personal protection switch (article number 45305). Polyurethane is oil-resistant, extremely wear-resistant, and approved for temperatures from -40 to 80 °C.
Special features
- Cable type: 2 x 1.5 m H07BQ-F 3G2.5 with grounded 3-way rubber socket with protective caps
- Connection: 230 V, 16 A, max. 3,500 W
- Standard: DIN VDE 0661:1988-04, DIN EN 50525-2, DIN VDE 0620
- Protection class IP44: foreign object and splash-proof
Technical data
- Number of Sockets with Earthing (Type F): 3
- Nominal Current: 16A
- Color: Black
- Connection load: 3500W
- Protection class: IP44
- Conductor cross-section: Ø 2.5mm²
- Cable length: 3 m
- With cover: Yes
- USB connection: No
- With on/off switch: No
- Overcurrent protection: No
- Overvoltage protection: No
- Residual current device: Yes
- Cable type: Polyurethane
