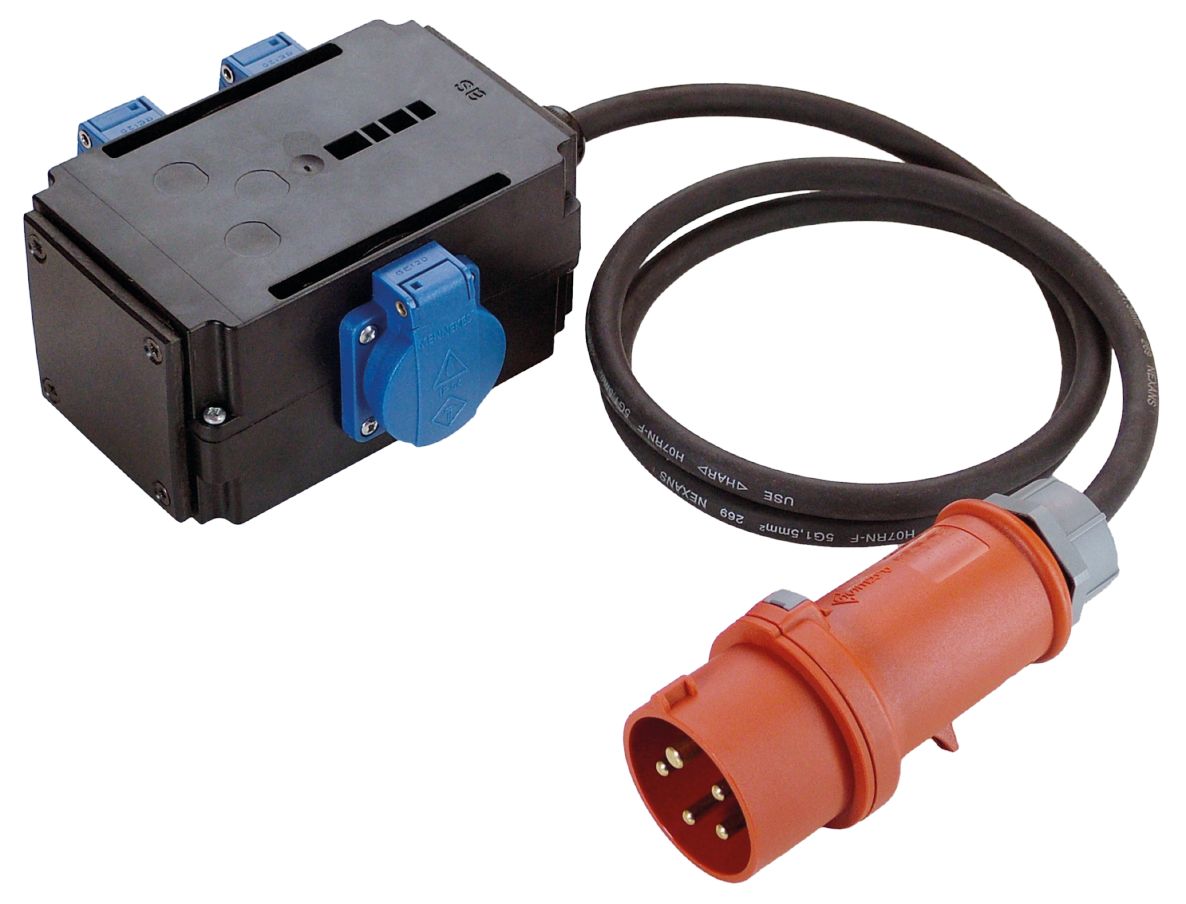

Schwabe 60527 CEE MIXO Adapter 400V/16A IP44 5-pole NAGOLD with cable H07RN-F 5G1.5 1.5m
With their robust housing made of highly break-resistant special plastic and their space-saving design, the MIXO CEE adapters are well-equipped for mobile use on the construction site.
Special features
- Housing made of highly break-resistant special plastic and space-saving construction
- Max. Power: 16 A, approx. 11 kW
- IP44: foreign object and splash-proof
- Tested according to: DIN VDE 0620-1, IEC 60309, RN-F DIN EN 50525-2
Technical data
- Cable type: H07RN-F
- Number of conductors: 5
- Conductor cross-section: Ø 1.5 mm²
- Cable length: 1.5 m
- Protection class: IP44
- Residual current device: No
- Overcurrent protection: No
- Number of 230V/16A sockets: 3
- Number of CEE poles: 5
- Maximum current (A): 16
- Maximum power (W): 11000W
- Input: CEE 400V/16A, 5p
- Fuse: None
