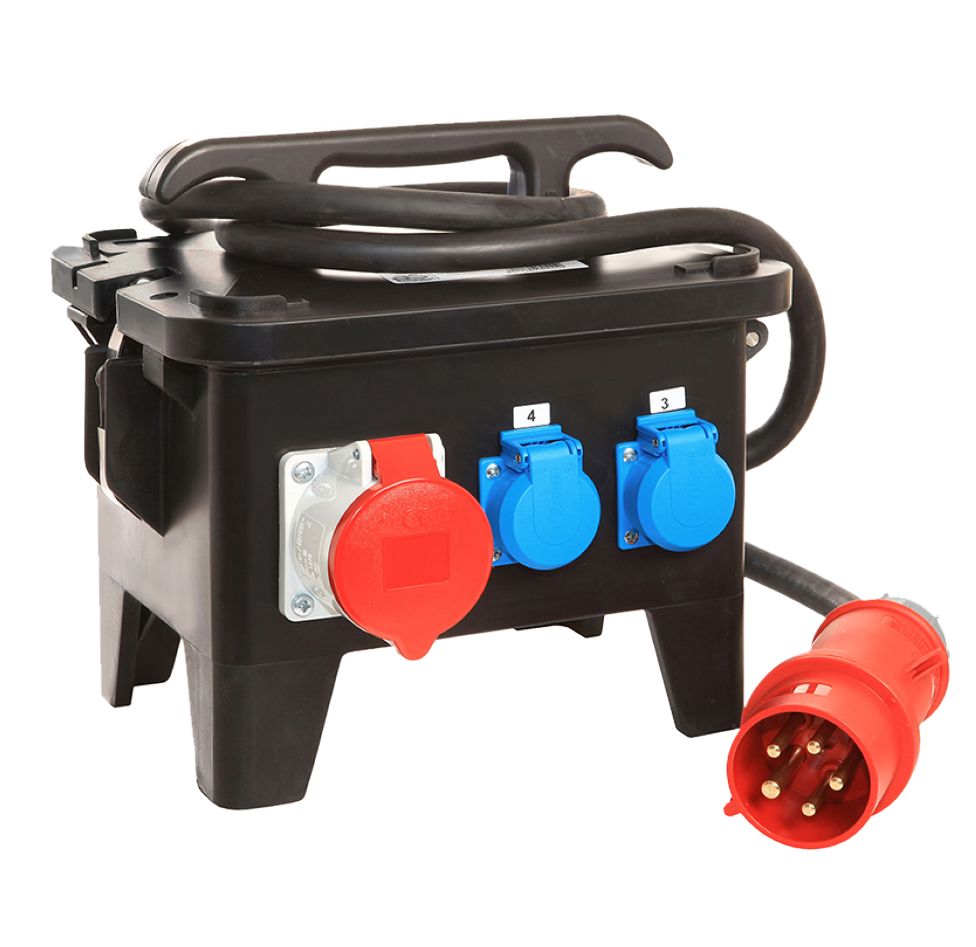

Schwabe 60555 CEE Mobile Power Distributor M4 400V/32A IP44 H07RN-F5G6 2m
With their excellent quality, dimensional stability, and durability, solid rubber power distributors are designed for rough use on construction sites. They are also stackable.
Special features
- Housing made of robust solid rubber, stackable and therefore space-saving to store
- Closed lower part of the housing with 77 mm ground clearance prevents water ingress
- Easy socket replacement
- Housing cover with stainless steel quick-release fasteners
- Safe to touch, even with the cover open - according to BGV A2
- Specially protected fuses, integrated into housing
- Max. Power: 32 A, approx. 22 kW
- IP44: foreign object and splash-proof
- Tested according to: DIN VDE 0620-2-1, IEC 60309, EN 61439-4, DIN EN 50525-2
Technical data
- Cable type: Neoprene
- Conductor cross-section: Ø 6.0 mm²
- Cable length: 2 m
- Mains connection: CEE 400V/63A, 5p
- Number of CEE 400V/16A, 5p sockets: 2
- Number of CEE 400V/32A, 5p sockets: 1
- Earthed socket (type F) 230V/16A: 3
- USB Connection: No
- Maximum current (A): 32
- Maximum power (W): 22000W
- Overcurrent protection: Yes
- Residual current device: Yes
- Protection class: IP44
