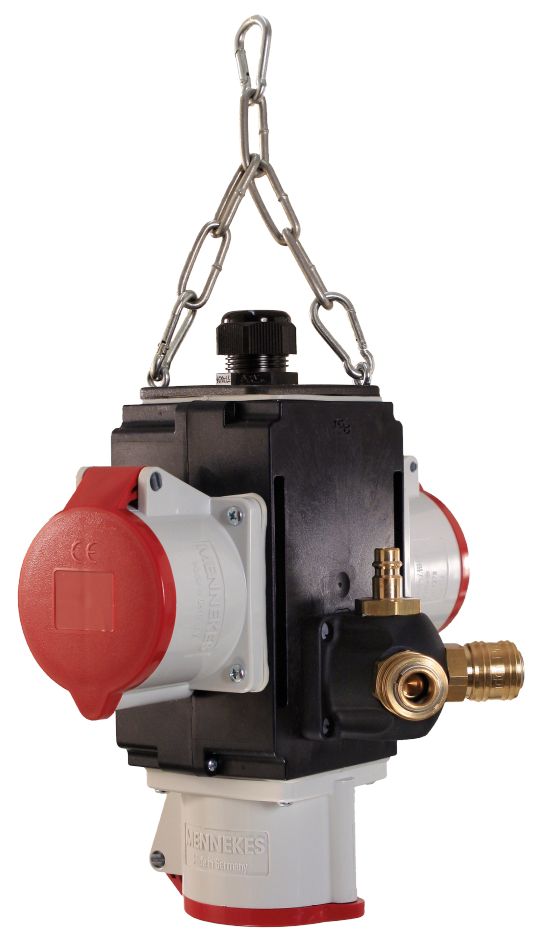

Schwabe 60730 MIXO Wall-mounted Distribution Panel V+ 3x CEE 400V/32A 5-pole
Housing made of highly break-resistant special plastic. Wired and ready for connection. Includes cable entry with screw lock and chain with carabiner.
Special features
- For cable diameters 5x4 mm² to 5x6 mm²
- NW 7.2 compressed air connection
- Connection: 400 V, 32 A
- IP44: foreign object and splash-proof
- Weight: 1.3 kg
- Standard: DIN VDE 0620, IEC 60309
Technical data
- Number of CEE 400V/32A, 5p sockets: 3
- Mains connection: CEE 400V/32A, 5p
- Protection class: IP44
- IEC current rating: 32 A
- Residual current circuit breaker: No
- Overcurrent protection: No
- With compressed air connection: Yes
- With data connection: No
