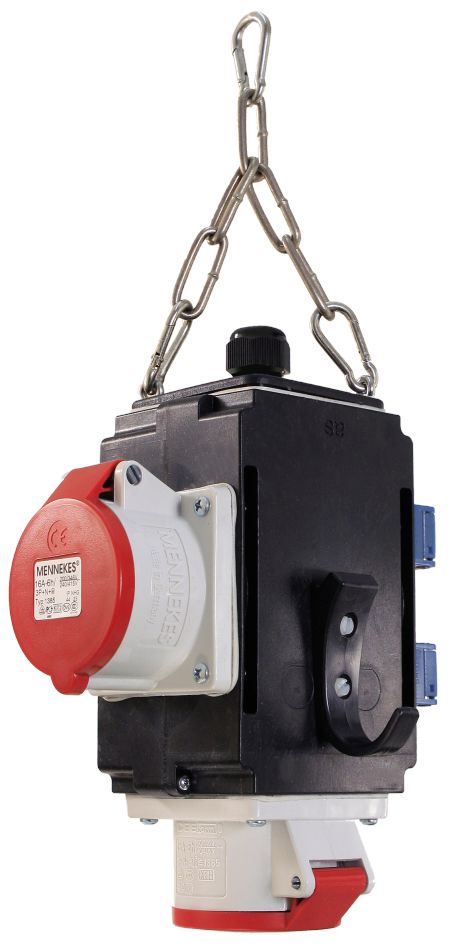

Schwabe 60735 MIXO Wall-mounted Distribution Panel III 2x 230V/16A, 2x CEE 400V/16A 5-pole
Housing made of highly break-resistant special plastic. Wired and ready for connection. Includes cable entry with screw lock and chain with carabiner.
Special features
- For cable diameters 5x2.5 mm² to 5x4 mm²
- Connection: 400 V, 16 A
- IP44: foreign object and splash-proof
- Weight: 1.3 kg
- Standard: DIN VDE 0620, IEC 60309
Technical data
- Number of CEE 400V/16A, 5-pin sockets: 2
- Number of sockets with earth connection (Type F): 2
- Mains connection: CEE 400V/16A, 5-pin
- Protection class: IP44
- IEC current rating: 16 A
- Residual current circuit breaker: No
- Overcurrent protection: No
- With compressed air connection: No
- With data connection: No
