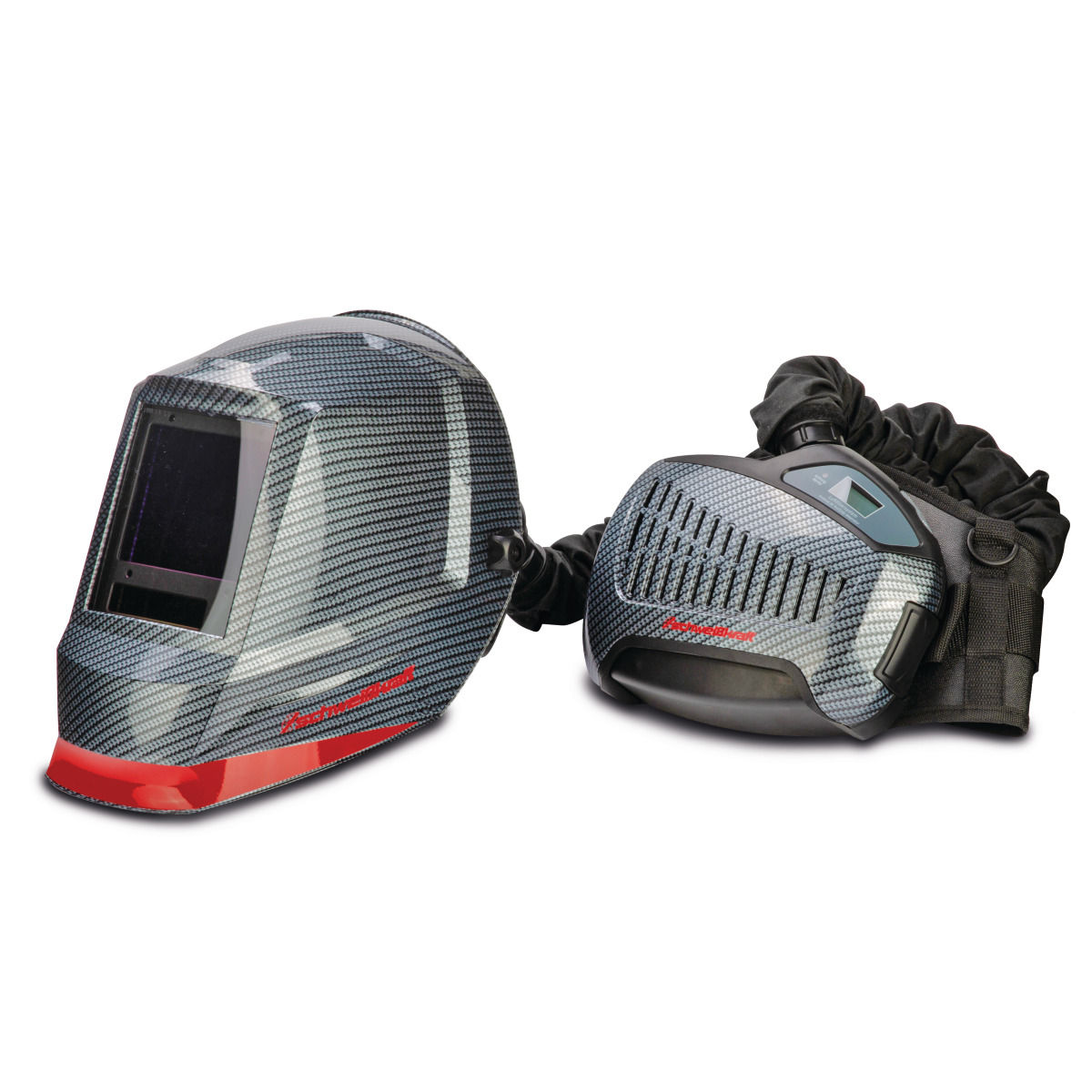

Schweisskraft VARIOPROTECT-TC Automatic welding helmet 100x83mm with air filter
Special Features
- Automatic welding helmet with external air filter and 'True Color' color display.
- Suitable for all welding processes (MIG, MMA, TIG), plasma cutting, oxy-acetylene welding, spot welding, and grinding.
- Complete protection against radiation, sparks, and, thanks to the air filter, also against all harmful welding fumes, vapors, and grinding dust.
- All control knobs on the inside of the helmet
- DIN value 5-13: wide range of brightness levels
- Sensitivity and delay infinitely adjustable
- Power source: solar cells + replaceable button cells (CR2450)
- 4 sensors for detection of arc
- Glossy lacquered finish for easy cleaning
- Cap made of flexible and unbreakable nylon
- Air flow 170-200-200 l/min
- Battery operating time 8-6-4h
- Filter level TH3P R SL
Benefits
- Viewing window 100 x 83.4 mm
- Filter of the highest optical class: 1/1/1/1
- Exceptionally high viewing comfort thanks to the True Color Cassette. The display of the working environment in true colors makes it possible to continue welding longer and more efficiently without eye strain.
- Efficient air filter and air supply system provides the welder with clean and filtered air, thus preventing the inhalation of dangerous and harmful particles and welding fumes.
- TH3 filter level with high filtration efficiency: 99.996% of all particles up to a size of 0.185 µm are filtered out of the air
- Air filter with three ventilation levels
- The air supply ensures an even air distribution in the helmet
- Filter with an operating time of up to 8 hours, thanks to the Li-ion battery
Technical data
- Viewing window mm 100x83.4
- Power from solar cells and button cells
- On/off Automatic
- DIN value DIN 4-13
- Switching response time (light to dark) s 1/25000
- Optical class 1/1/1/1
- Grinding function Yes
- Battery alarm Yes
- Test function No
- MIG Yes
- TIG Yes
- MMA No
- Grinding Yes
- Delay s 0.08
- Operating temperature °C -5 to +55
- Sensors 4
- Protection DIN 16
- Weight kg 2.50
- Dimensions (lxwxh) mm 194x245 x334
Scope of delivery
- In box
- Welding helmet
- Air filtration system with waist belt and double shoulder strap
- Breathing hose with cover 1 m
- Rechargeable Li-ion battery 14.8V / 2.6 Ah
- Battery charger
- Black carrying case
