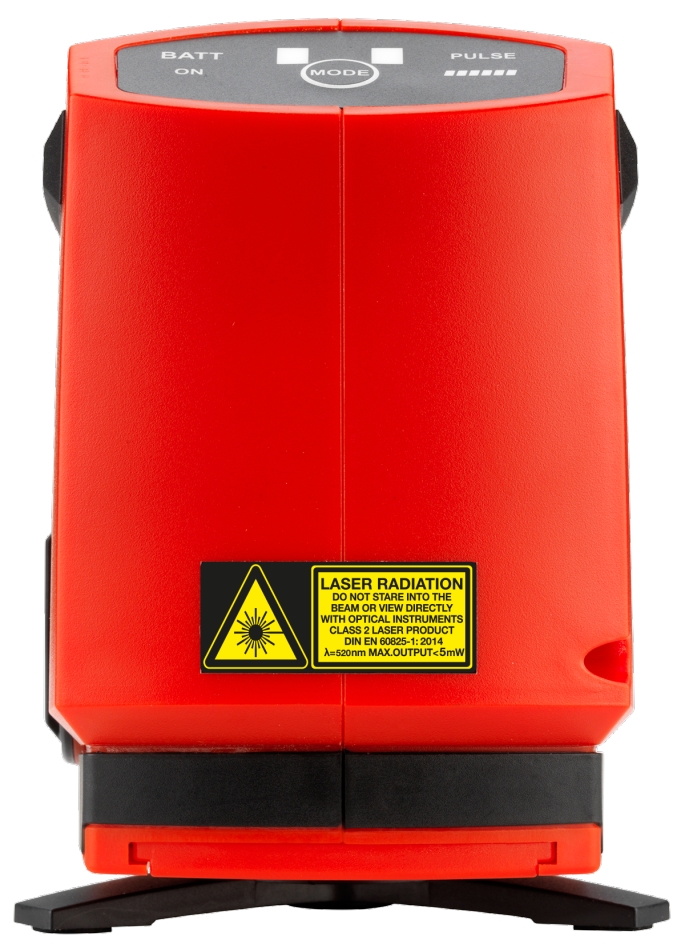

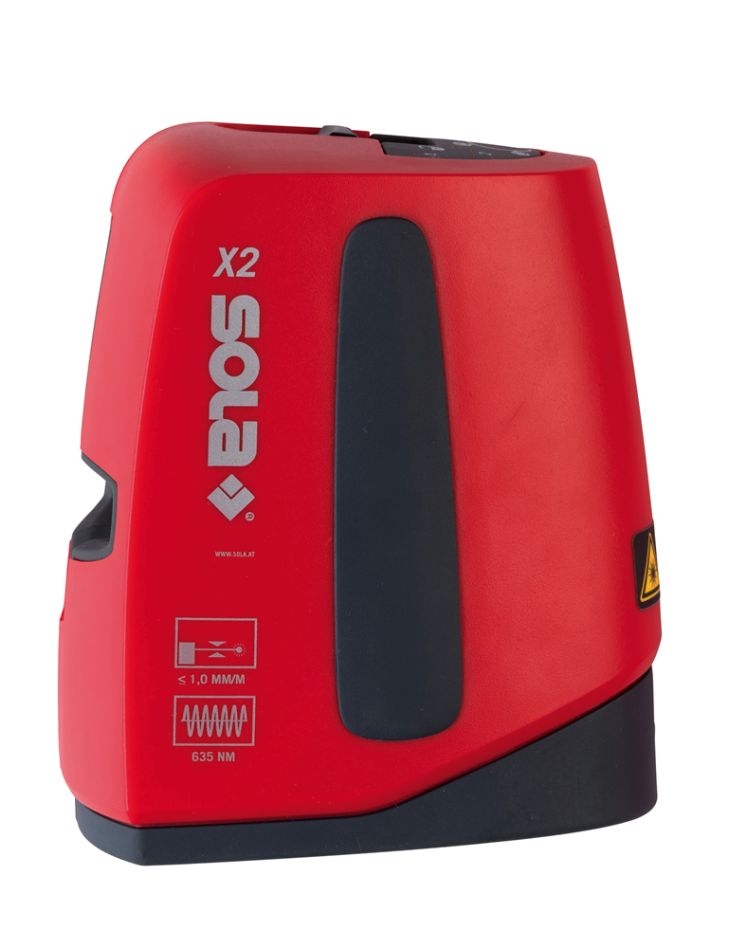

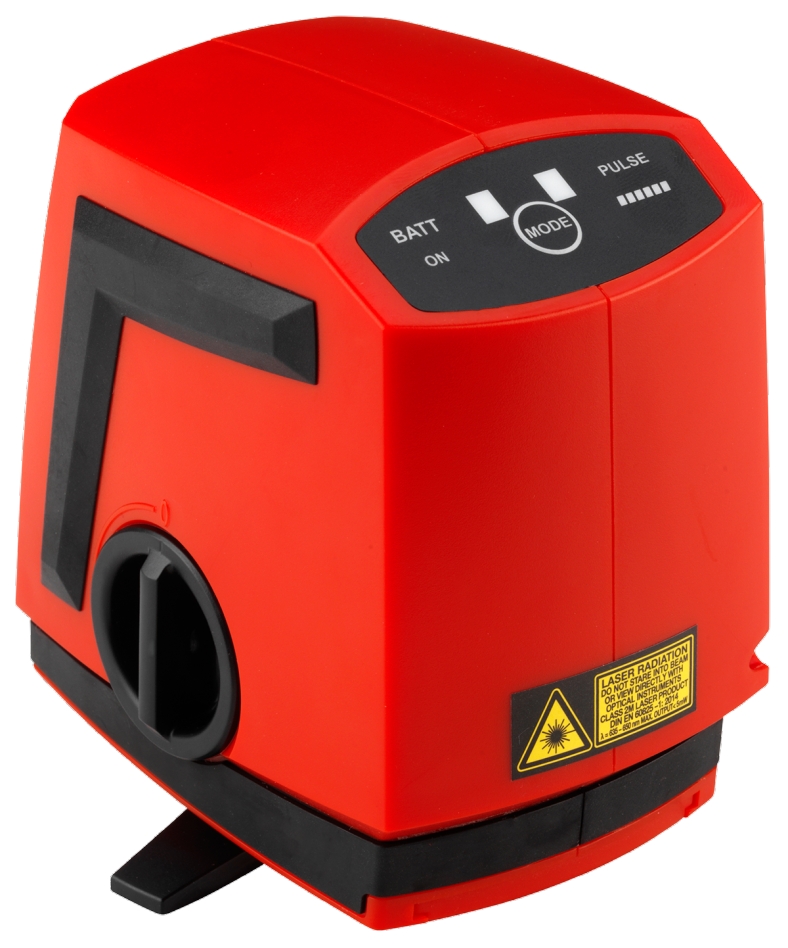

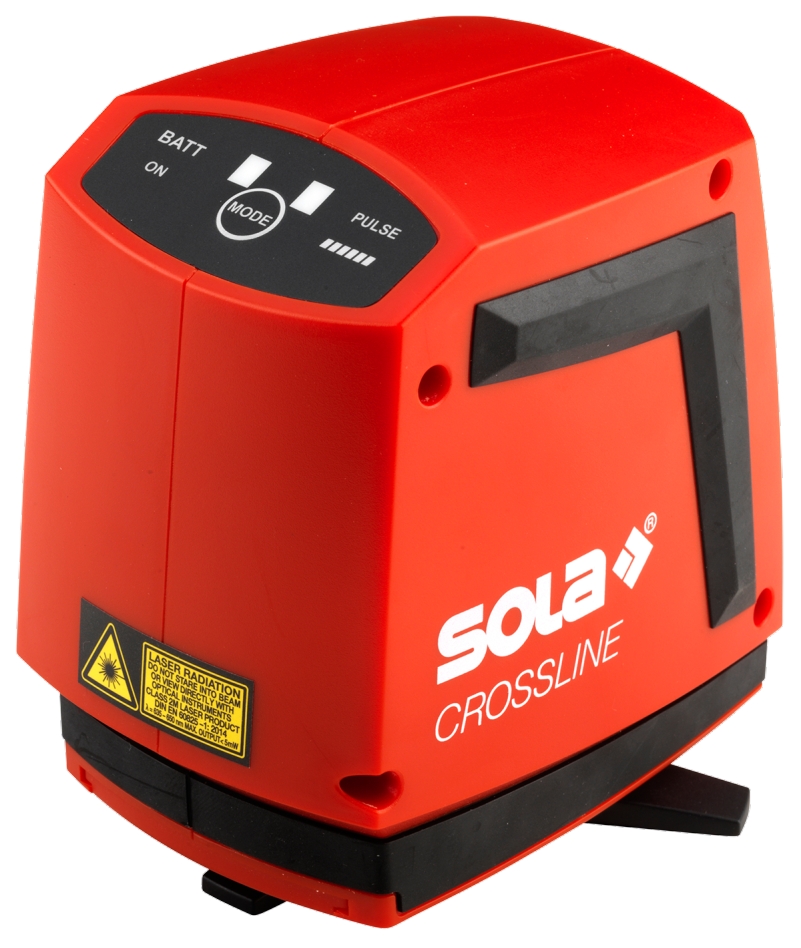

Sola CROSSLINE Line Laser
Special features
- High accuracy
- Compact, lightweight, and handy
- Bright, highly visible laser lines
- Rotatable base for easy and quick alignment of the line panorama
- Pulse function for use with the optional REC LRD0 handheld receiver in poor visibility
Features
- Measurement tolerance ±0.20 mm/m
- Range without handheld receiver (radius) 20 m*
- Range with handheld receiver (radius) 80 m*
- Horizontal leveling
- Manual slope
- Vertical leveling
Technical data
- Dimensions : 120 x 65 x 105 mm
- Leveling: self-leveling
- Measurement tolerance: ±0.20 mm/m
- Self-leveling range: ±4°
- Range without handheld receiver (radius): 20 m*
- Range with handheld receiver (radius): 80 m*
- Operating temperature: -10 °C to +50 °C
- Tripod mount: 1/4
- Protection class: IP54
- Power supply: 3 x 1.5 V (AA) batteries
- SOLA Li-Ion battery (5200 mAh)
- Operating time (at 20°C): 10 hours 3 x 1.5 V (AA) batteries
- 48 hours SOLA Li-Ion battery (5200 mAh)
- Laser class : 2M, DIN EN 60825-1 : 2014
- Output power :< 5.0 mW
- Wavelength : 635 nm
Supplied as standard
- 3 x 1.5 V (AA) batteries
- Battery adapter BA
- Magnet holder MH
