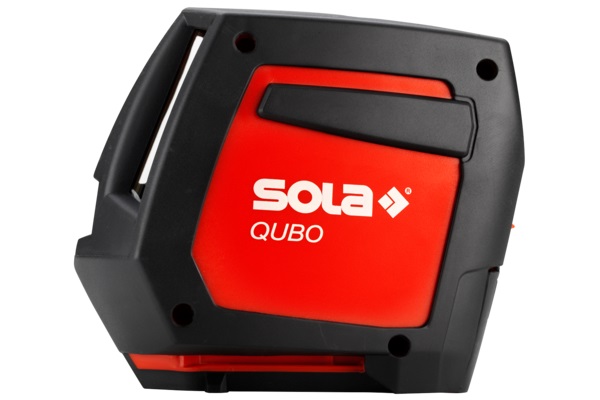

Sola QUBO BASIC Line and point laser
Special features

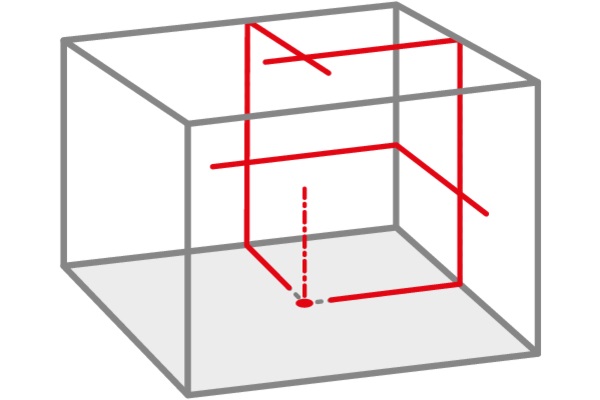

- Easy operation: just one switch - all laser lines immediately visible

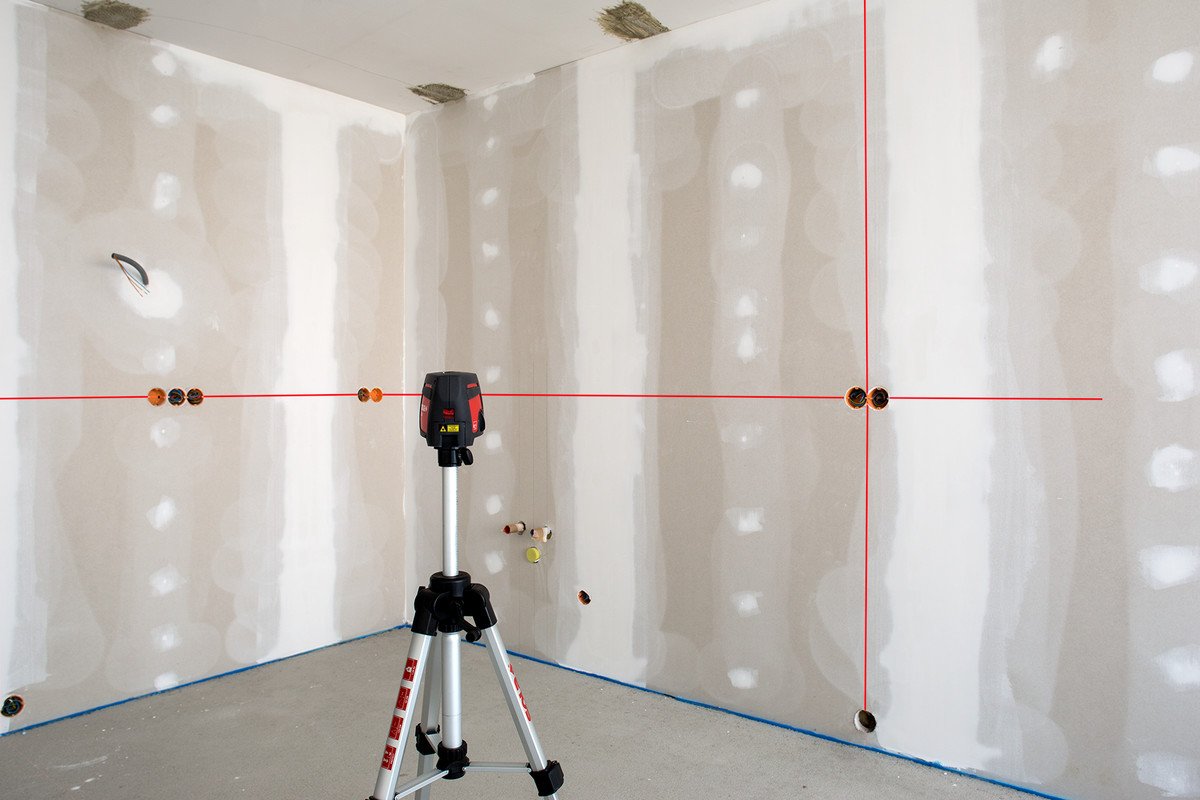

- Fast and accurate checking of right angles and flatness of floors and walls

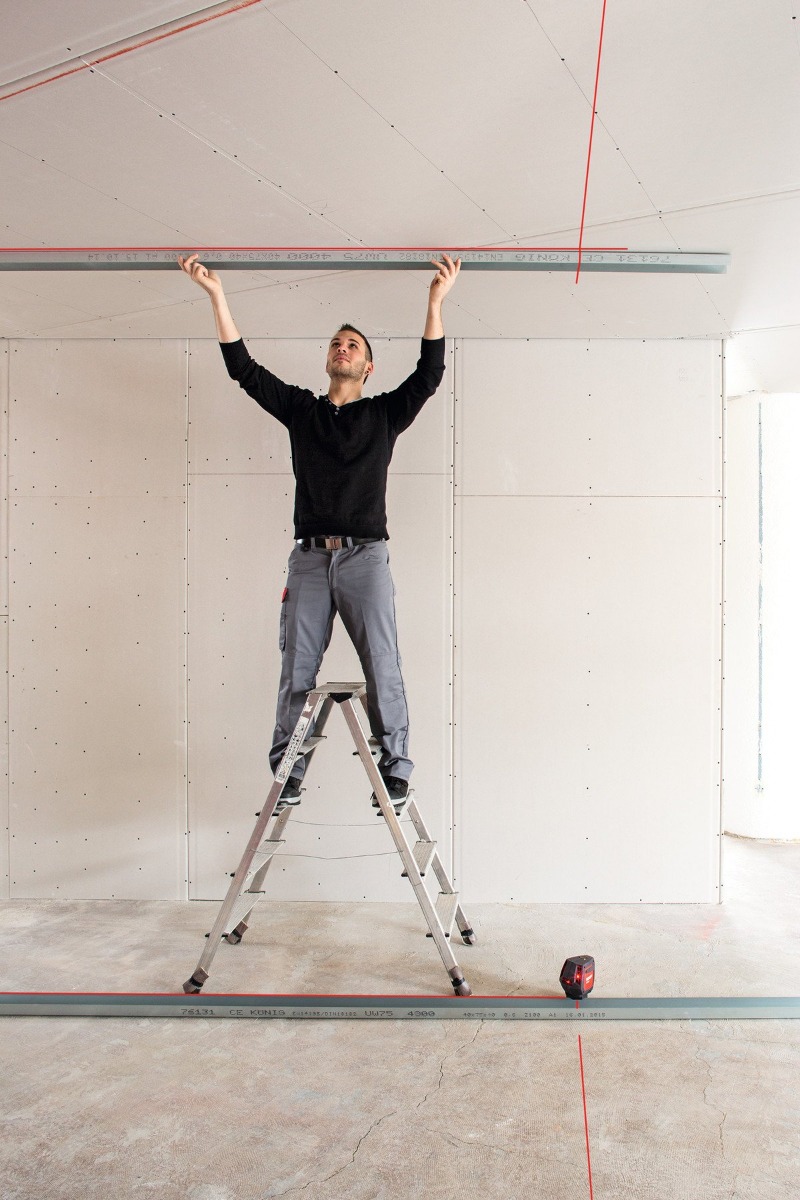

- Sturdy, magnetic attachment to floor rails for drywall construction
- 360° rotatable around the plumb point for easy and quick adjustment. Plumb point always on the edge of the profile
- Pulse function for use with the optional REC LRD0 handheld receiver in poor visibility
Features
- Measurement tolerance ±0.20 mm/m / ±0.30 mm/m (plumb point)
- Range with handheld receiver (radius) 80 m*
- Horizontal leveling
- Manual slope
- Vertical leveling
- Adjust to 90°
- Sounding
Technical data
- Dimensions : 115 x 103 x 135 mm
- Leveling : self-leveling
- Measurement tolerance : ±0.20 mm/m / ±0.30 mm/m (plumb point)
- Self-leveling range : ±4°
- Range without handheld receiver (radius) :
- Range with handheld receiver (radius) : 80 m*
- Operating temperature : -10 °C to +50 °C
- Tripod mount : 1/4 + 5/8"
- Protection class : IP54
- Power supply : 3 x 1.5 V (AA) batteries
- SOLA Li-Ion battery (5200 mAh)
- Operating time (at 20°C) : 12 hours 3 x 1.5 V (AA) batteries
- 28 hours SOLA Li-Ion battery (5200 mAh)
- Laser class : 2, DIN EN 60825-1 : 2008
- Output power: < 1.0 mW
- Wavelength: 3 x 635 nm/1 x 650 nm
Supplied as standard
- Dry construction adapter TBA
- Battery adapter BA
- 3 x 1.5 V (AA) batteries
