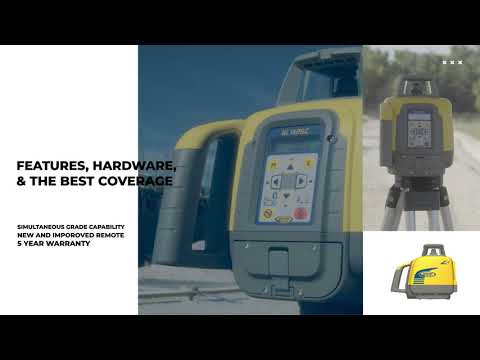

Spectra GL1425C Dual Slope Laser
Features
- The automatic self-leveling Spectra Precision GL1425C dual slope laser is the most robust, cost-effective laser capable of performing three tasks: leveling, slope, and vertical alignment. Even under harsh working conditions, the GL1425C delivers consistent, reliable, and accurate performance, allowing you to work faster and smarter.
- The GL1425C has built-in Bluetooth so it can work with the Spectra Precision Laser Remote App if the remote control is dead, not nearby, or lost. The laser can be controlled with your smartphone or the optional RC1402 remote control. The GL1425C rotates at 300, 600, or 900 RPM, is highly robust and waterproof, and is suitable for all construction site conditions. This strength, combined with full weather and dust resistance, reduces downtime and lowers repair costs over the product's lifespan.
- The GL1425C comes optionally equipped with the advanced HL760 digital receiver with mm display and offers automatic Grade Match, allowing unknown slope values to be measured quickly between two points, eliminating the need for time-consuming slope calculations. PlaneLok automatically locks onto an existing elevation or vertical alignment point, eliminating any drift or risk of errors due to incorrect calibration or weather conditions, up to distances of 100m from the laser.
- The self-heating process had various consequences for the Y- and X-axes with the old models; one axis was always close to maximum accuracy – the GL1425C has more margin in both axes for level accuracy. The specifications for accuracy at room temperature are the same as for the GL422N. Specification for accuracy at other temperatures will be even higher.
- For more convenience on the construction site, Spectra has developed the Laser Remote App. The Laser Remote app was developed with simplicity and functionality in mind, and the ultra-intuitive user interface gives you total control over your Spectra laser from your phone. You receive all alerts in real-time on your phone, and thanks to the improved Bluetooth function, the communication range between your laser and the app or your laser's remote control has also been improved. The Laser Remote app is available for free on both iOS and Android.
Technical data
- Laser beam color Red
- Laser diode 630 – 643 nm less than 5mw
- Laser class 2
- Accuracy ± 0.5 mm/10m
- Rotation speed Up to 900 RPM
- Slope 2-axis fully automatic
- Slope range ± 9% at spirit level ± 15% at pre-tilt
- Automatic slope measurement Yes
- Mask mode Yes
- Horizontal self-leveling Yes
- Vertical self-leveling Yes
- Automatic alignment Yes
- Range with receiver 400m
- Power supply Batteries 4x D-cell, Rechargeable battery (NiMH)
- Rechargeable Yes (NiMH)
- Operating time > 40 hours
- Removable battery Yes
- Self-leveling range ± 5°
- Tilt/tilt protection Stops rotating
- Tripod connection 5/8"
- Dust and splash water protection IP66
- Operating temperature -20°C to + 50°C
- Storage temperature -20°C to +70°C
- Dimensions (LxWxH) 280 x 180 x 240 mm
- Weight 3.49 kg
Scope of delivery
- RC1402 Remote control
- Battery
- Charger
- Case
