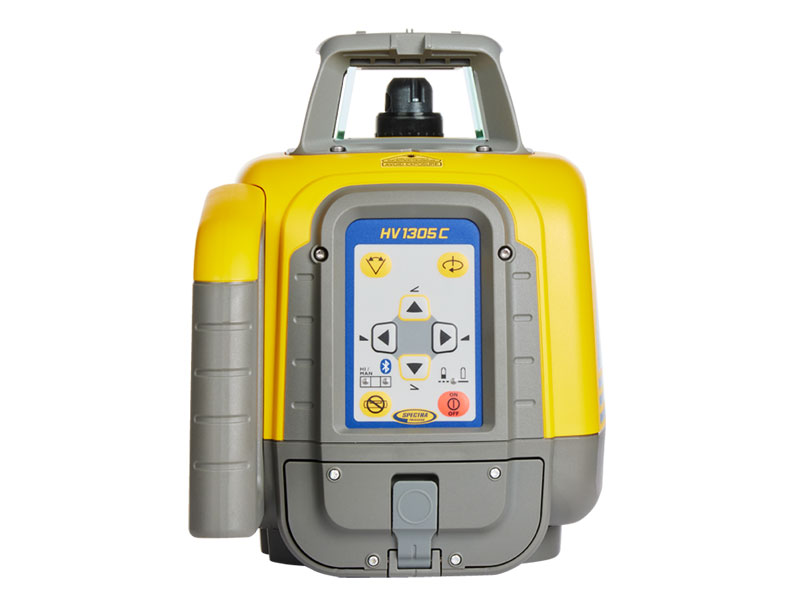

Spectra HV1305C Horizontal/Vertical Red Construction Laser
Features
- The HV302 from Spectra Precision, the most versatile construction laser from the American inventor of the rotating laser, has received a successor. The revolutionary HV1305C is intended to make this multifunctional construction laser forgotten. And it is up to you to decide whether Spectra has succeeded.
- Spectra Precision finishing lasers are embraced en masse worldwide for their extraordinarily bright beam. And naturally, this is no different with the new HV1305C. Even in brightly lit conditions, the laser beam remains clearly visible at all times. And with the help of the optional Spectra HL760 radio receiver, this multifunctional laser can also be used outdoors.
- Whatever you plan to do with a rotating laser, you can always rely on the HV1305C. This multifunctional construction laser is designed so that anyone can get started with it immediately. You set it up and can begin right away. With this construction laser, you can not only perform horizontal and vertical measurements, but also execute 90° and plumb beam projections. The Spectra HV1305C is therefore the number 1 choice for interior and exterior use, light to medium commercial use, and residential construction. A new feature is its use in the prefabrication industry, allowing you to use the HV1305C to position a ready-made wall perpendicular to the foundation. A major advantage of the new HV1305C, as the successor to the popular HV302, is its increased range. The bright beam is visible up to 100 meters. Also new is the Bluetooth functionality. Download the free Spectra app from the Google Play Store or Apple's App Store to control all the important functions of this multifunctional laser with your smartphone. That makes a huge difference, because you don't have to keep walking back to the laser to adjust the rotation speed, for example. And in combination with the separately available HL760 radio receiver, the diameter range is even increased to no less than 1200 meters.
- The HV1305C is also equipped with the latest housing for Spectra construction lasers. This is specially designed for the toughest conditions on the construction site. The entire housing can therefore withstand a significant impact. For instance, a fall of up to 1 meter onto concrete won't bother it at all. Does the HV1305C fall over, tripod and all? No problem either, because this multifunctional construction laser is shock-resistant against falls of up to one and a half meters. The most important part of the laser – the rotating head that emits the laser beam – is protected behind a glass casing. Completely dust and waterproof, therefore! Moreover, this so-called glass casing is placed in a rubber gasket, making it virtually unbreakable, even in the event of a fall of one and a half meters. Additionally, the glass panes of the glass cabinet are angled, allowing rainwater to drain away quickly and preventing any inconvenience during use in a rain shower.
Technical specifications
- Weight 3.49 kg
- Material Tempered plastic
- Length 280 mm
- Height 240 mm
- Width 180 mm
- Color Yellow, Grey
- Protection class IP66
- Drop resistance 1 meter onto concrete
- Tripod connection bottom ☐ ☐
- Tripod connection front ☐ ☐
- Remote control Bluetooth, Optional with radio remote control RC1402 Remote control type RC1402N
- Laser beam color Red
- Laser class 3A/3R
- Laser beam type Indoor visible
- Visible diameter range 100 meters
- Rotation speed 0, 10, 100, 200, 300, 600 rpm
- Diameter range with receiver With HL760: 1200 meters
- Accuracy 1.5 mm over 30 m (max., in practice per 100 meters)
- Horizontal self-leveling Yes
- Vertical self-leveling Yes
- Self-leveling range 8.7 %
- Out-of-range warning Off-level light flashes
- Operating temperature -20 C to 50 °C
- Slope mode Manual
- Slope on 1 axis Yes
- Slope on 2 axes Yes
- Slope range -10 to + 15 %
- Scanning Yes
- Loading Yes
- Applications Industry Finishing, Construction
- Type of work Installing ceilings and walls, Construction
- Use Indoor, Outdoor
- Use with receiver Optional
- Laser functions via optional remote control Mask mode Yes PlaneLok Yes Automatic slope measurement Yes Slope mode Yes
- Power supply Battery pack, 4 x D-cell batteries
- Rechargeable Yes
- Battery runtime 45 hours
- Alkaline battery runtime 60 hours
- Charger 230V Spectra charger
Scope of delivery
- Charger
- Battery
- Laser target plate magnetic red
- Laser glasses red
- Manual
- Case
