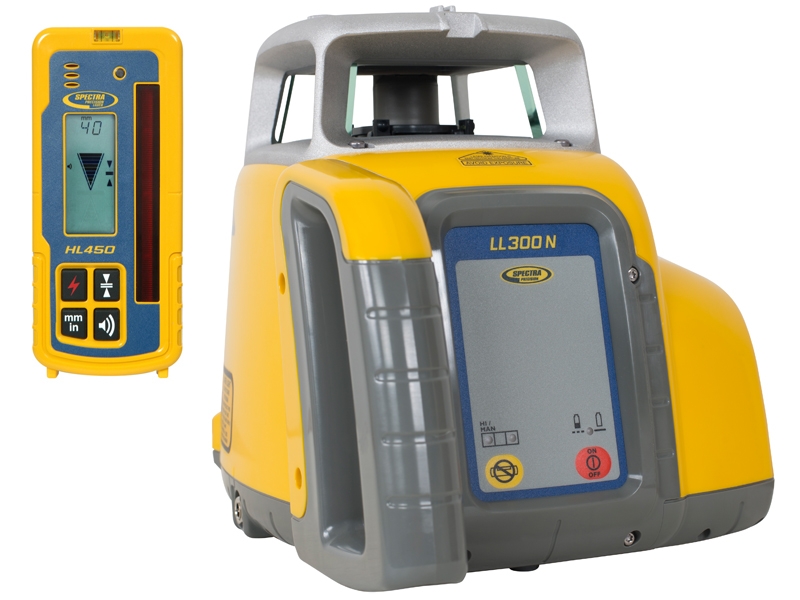

Spectra LL300N Rotating construction laser (rechargeable)
The automatic, self-leveling Spectra Precision® LL300N construction laser from Trimble is the most robust construction laser available, strong enough to be used for numerous standard and concrete jobs. Even under the harshest conditions on the construction site, the LL300N laser delivers consistently reliable and accurate performance, allowing you to work faster and more efficiently.
Features
- The robust LL300N construction laser can withstand a drop of up to 1 meter onto concrete or the tipping over of a tripod (1.5 m).
- This drop resistance, combined with complete water and dust resistance, reduces downtime and lowers repair costs over the entire lifespan of the product.
- Thanks to the self-leveling capability of the LL300N construction laser and the optional RC601 remote control, excellent accuracy and ease of use are guaranteed.
- Because the LL300N levels itself immediately upon switching on, startup is easier than ever, with fewer checks to perform.
- The RC601 remote control offers you the ability to level slopes to switch or level.
- This also offers single-axis slope including HI warning control, while the other axis self-levels.
Applications
- General height determination
- Height control and setting for small to medium-sized construction sites
- Leveling structures and substrates
- Estimating excavation/backfill work
- Excavations
- Simple slopes for roads and driveways
- The most robust construction laser you will ever own LL300N
- Automatic self-leveling
- Accuracy 2.2mm @ 30 m
- Diameter range 500 m
- One-button operation for a quick start ‘Instrument Height (HI) warning - the unit stops rotating upon impact to prevent inaccurate measurements
- Manual single-axis tilt mode (with RC601 remote control)
- Complete construction laser package available: a case with tripod and leveling staff
- Extremely durable and portable 5-year warranty
Key features
- Easy to transport, carry, and store
- Energy-efficient design offers long battery life
- Very durable!
Technical data
- Accuracy +/- 2.2 mm over 30
- Diameter range 500
- Self-leveling Yes
- Self-leveling range +/- 5 degrees
- Out-of-range warning Yes Laser stops with rotation
- Tripod mount 5/8" (brass!)
- Power supply 4x D-Cell Battery and Rechargeable Battery Pack
- Rechargeable via mains power Yes
- Water and dustproof IP66
- Carrying case Yes
- Slope Yes Manual
- Dimensions 27.2 x 19.7 x 20.1 cm
- Weight 2.7 kg
- Operating time 90 hours batteries / 45 hours rechargeable battery
- Shock resistant Yes Drop onto concrete 1 m
Standard included
- Case
- HL450 receiver
- Rechargeable battery pack incl. charger
- Clear, Dutch-language user manual
