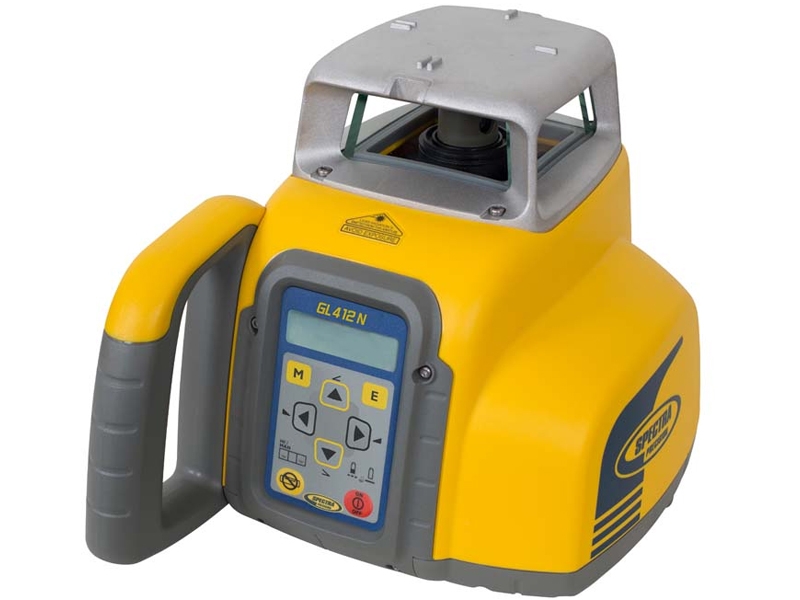

Spectra GL412N Single Slope Laser (rechargeable)
Features
- Looking for a slope laser to create slopes?
- Then the GL412 N from Spectra Precision is an excellent purchase.
- This latest creation from the world market leader in construction lasers can withstand the toughest conditions on the construction site.
Completely newly developed
- The GL412 N is the completely new version of the well-known GL412 from Spectra.
- All parts have been redeveloped and/or improved.
- This slope laser was the first to receive a new look.
- This means that this slope laser is even more resistant to damage from drops and impacts.
- In addition, the diameter range has been increased.
- This allows you to work on a slope at an even greater distance.
Single slope
- The GL412 N is a versatile and competitively priced slope laser.
- This construction laser is perfect for creating a slope on one side of the axis.
- With this slope laser, you can set a slope to within a thousandth of a percent with a percentage of -10 to +15%.
- Steep slopes? No problem at all, because the GL412 N from Spectra Precision makes the impossible possible!
Complete with RCN402N remote control
- This slope laser comes complete with the latest remote control from Spectra Precision: the RC402 N.
- This new radio remote control allows you to set the slope by yourself.
- So a second person is not needed—calculate your savings!
- With this remote control, you can take over the slope from a distance of up to a guaranteed 100 meters.
Highly advanced receiver

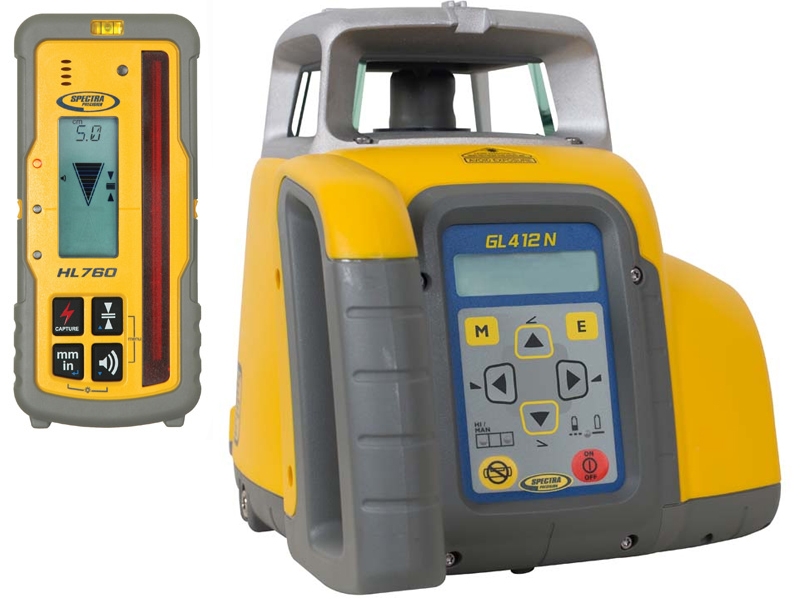

- The GL412 N slope laser comes standard with the new HL760, the most advanced handheld receiver on the market.
- Unique to the HL760 is that it establishes a radio connection with the laser.
- This technology opens the door to a whole new range of functions.
- For example, PlaneLok is very handy, allowing you to automatically lock the laser to an existing elevation or vertical alignment point.
- This prevents deviations or measurement errors.
- The Grade Match function enables automatic slope transfer for measuring unknown height differences between two points over unknown terrain and eliminating time-consuming slope calculations.
- The "Fingerprint" function ensures that only the laser beam from the laser to which the HL760 is connected is picked up.
- And that is very convenient on a large construction site, where multiple lasers are often used.
- Also vertical The GL412 N can be used not only horizontally but also vertically.
- The possibilities are endless with this.
- Think, for example, of installing anchor bolts, leveling formwork, sloping walls, and system walls.
- Additionally, it is possible to electronically switch off up to three sides of your choice.
- This prevents other employees from being disturbed by laser beams or the signal from extending outside your work area.
Technical specifications
- Use Outdoor
- Slope Single Automatic
- Diameter range with receiver 800 meters
- Slope range -10 to +15 %
- Accuracy ± 1.5 mm over 100 m
- Self-leveling Yes
- Self-leveling range ± 5 degrees
- Rechargeable Yes
- Power supply Battery pack, 4 x D-cell batteries
- Battery runtime 35 hours
- Alkaline battery runtime 50 hours
- Laser class 2
- Out of range warning LCD indications and LED flashing
- Tripod mount 2 x 5/8" (brass)
- Protection class IP66
- Drop resistance 1 meter onto concrete
- Dimensions (LxWxH) 272 x 197 x 201 mm<

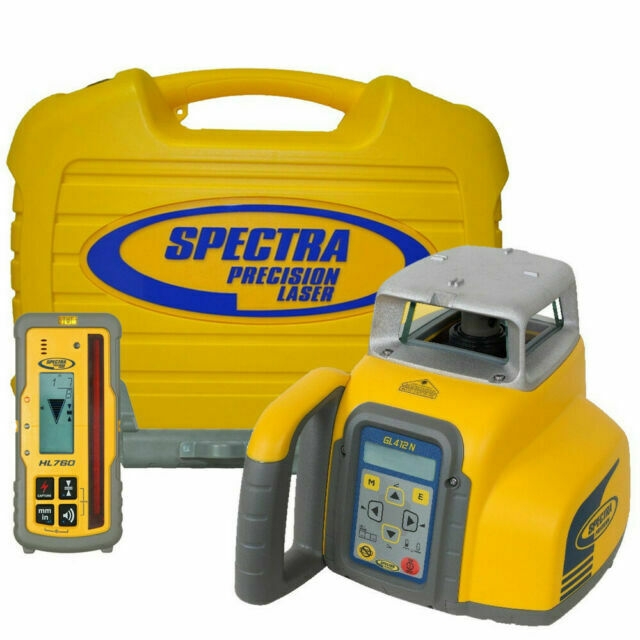

Scope of delivery
- GL412N slope laser
- Case
- Receiver HL760
- Remote control
- Battery pack
- Charger
- Manual
- Calibration certificate
