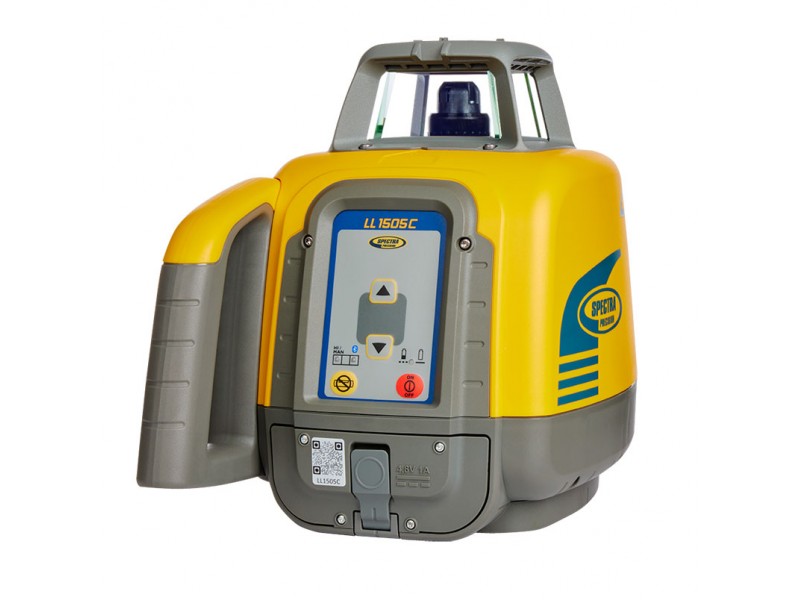

Spectra LL1505C Horizontal/Vertical Red Construction Laser + HL450 Receiver
Features
- The LL1505C is a rotating laser from Spectra with a few extra features. This all-rounder is the advanced brother and successor to the LL300S. Not only has the diameter range been increased to no less than 1200 meters, but you can also easily set the slope on a single axis. With the optional RC1402 radio remote control, this is possible even from a distance of up to 100 meters.
- The LL1505C has been designed by Spectra so that anyone can use it immediately. Because this construction laser is fully self-leveling, the LL1505C takes all the work off your hands. You switch it on and can get to work right away. All functions can be operated with just three buttons. The LL1505C comes standard with an external charging plug, ensuring that work can always continue while charging in the event of empty batteries.
- The LL1505C was launched in 2025 and is fully prepared for the future. Unique to this new series of construction lasers is that they are equipped with a Bluetooth mode. This is convenient, as it allows you to easily and quickly pair this rotating laser with the free downloadable app on your smartphone or tablet. This makes it possible to quickly operate all functions remotely.
- This laser from Spectra is the most robust laser on the market. It is therefore suitable for numerous standard and concrete works. Moreover, this construction laser is the ideal rotating laser for the civil engineering sector. No matter how tough the conditions on the construction site, the LL1505C holds its own! This construction laser consistently delivers reliable and accurate performance. This allows you to work even faster and more efficiently. This newly developed construction laser is designed so that a drop of up to 1 meter onto concrete will not cause any damage. Even if it falls onto the metal hood, the housing remains intact. And that makes working much more pleasant! If your tripod with the LL1505C suddenly tips over, this rotating laser will survive a fall of up to one and a half meters onto concrete. A major advantage of the LL1505C is that it is equipped with a very easy slope mode. Because this construction laser automatically levels upon startup, starting up is easier than ever. You no longer need to perform any checks. The control panel of the Spectra LL1505C is equipped with two separate buttons for setting the slope. By using the new HI-alert function, you can very easily create a ramp with a controlled slope setup.
Technical data
- Weight 3.49 kg
- Material Hardened plastic
- Length 280 mm
- Height 240 mm
- Width 180 mm
- Color Yellow
- Protection class IP66
- Drop resistance 1.5 meters onto concrete
- Tripod connection bottom ☐ "
- Tripod connection front ☐ "
- Remote control Optional Remote control type RC1402
- Laser beam color Red
- Laser class 2
- Laser beam type Non-visible
- Rotation speed 300, 600 or 900 rpm
- Diameter range with receiver With HL450: 800 meters With HL760: 1200 meters
- Accuracy 1.5 mm over 30 m (max., in practice per 100 meters)
- Self-leveling horizontal Yes
- Self-leveling vertical No
- Self-leveling range 8.7 %
- Out-of-range warning Laser stops rotating
- Operating temperature -20 to 50 °C
- Laser functions Slope mode Manual Slope on 1 axis Yes Slope on 2 axes No Slope range -10 to +15 % Scanning No Plumbing No
- Applications Industry Construction, Landscaping Type of work Paving, Gardening, Construction
- Outdoor Use
- Use with receiver Yes
- Laser functions via remote control Mask mode No PlaneLok No Automatic slope measurement Yes (in combination with HL760) Slope mode Manual
- Power supply Battery pack, 4 x D-cell batteries
- Rechargeable Yes
- Battery runtime 55 hours
- Alkaline battery runtime 60 hours
- Charger 230V Trimble charger
Scope of delivery
- Charger
- Battery
- HL450 receiver
- Manual
- Case
