Stabila 18044 LA 180 L Multi-line Laser

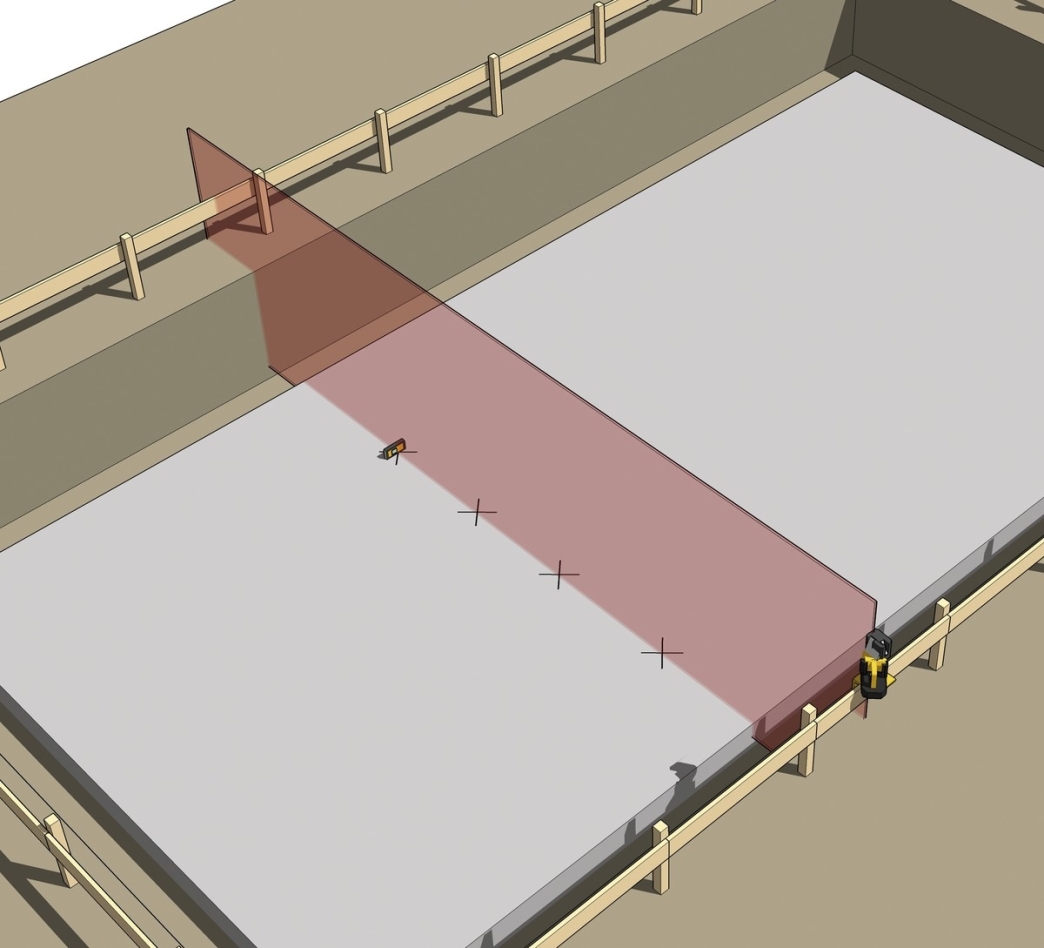

Creating right angles is a challenging task. And measurement errors cost not only time, but often a lot of money as well. The self-leveling multi-line laser LA 180 L can be used to quickly and accurately create right angles and align axes. Thanks to STABILA’s AUTO ALIGNMENT technology, the REC 410 Line RF receiver automatically controls the fine alignment of the LA 180 L laser via wireless frequency. Very simply by pressing a button. This laser is STABILA's answer to the challenges of the construction industry.
Special features
- Self-leveling multi-line laser for extremely precise work results - motor control, accuracy of ± 0.07 mm / m.
- AUTO ALIGNMENT function: receiver automatically controls the fine alignment of the laser at distances up to 40 m - fully automatic transmission of axes and application of right angles.
- Accurate alignment without losing the reference point - no measurement errors.
- Pulsed laser lines for exact height measurements with the receiver (maximum 100 m) indoors and outdoors.
- Versatile use: 3 vertical lines, 1 horizontal line, soldering function.
- Particularly sharp, clearly visible lines for fast and effective work directly on the laser line - range up to 20 m indoors.
- Unique housing shape for placement in room corners and over edges (e.g. concrete plate) - quick testing of right angles.
- Shock-absorbing SoftGrip jacket. Comprehensive set of accessories: small and large alignment plate, laser sight glasses, carrying case.
- Optionally available: battery.
Applications
- In metal construction - assembly of metal structures in hall construction, alignment of substructures in facade construction.
- In reinforced concrete construction - move scaffolding axes, mark walls on the base plate.
- For masonry - move scaffolding axes, mark walls on the floor slab, mark bulkheads in the basement.
- For carpentry - tearing and aligning wooden frame walls. In dry construction - move layouts from the floor slab to walls and ceilings, create and attach U-profiles, place partitions, suspend the ceilings.
- During installation work - align clamps, position pipes and heating tubes.
Technical data
- Laser class 2
- Laser wavelength 635 nm
- Self-leveling +/-5 °
- Leveling +/-0.07 mm / m
- Line straightness +/-0.10 mm / m
- Top plumb accuracy +/-0.20 mm / m
- 90 ° angle accuracy +/-0.20 mm / m
- Receiver setting range 100 m
- Visible line range 20 m
- Operating time 20 hours
- Protection class IP 54
- Tripod mount 5/8
Stand included
- Case
- Manual
- Receiver with pole clamp REC410 Line RF
- Laser glasses red
- Guide plate red
