Stabila 19240 Rotating Laser LAR 160 Green, 4-piece set
Is your task the horizontal and vertical leveling of large interior projects?Do you need to work accurately and avoid costly measurement errors and rework?Then the STABILA LAR 160 G with green laser beams is the right rotating laser for you.Quickly ready for use, easy to operate, and interacting with the receiver, the laser shows its power especially at long distances.All in all, a well-manufactured quality product that delivers accurate results.
Special Features
- Fully automatic, motor-driven rotating laser - high leveling accuracy ± 0.1 mm/m, fast self-leveling within 20 seconds.
- STABILA GREENBEAM technology for better visibility of the rotating laser beam - green laser beams are four times more visible to the human eye than red beams.
- Four laser functions for versatile use - horizontal and vertical rotation, plumb function, and right angle (90°) for vertical use.
- Protection class IP 65 - dust and waterproof.
- Shock-absorbing STABILA softgrip cover protects against impacts - the laser optics are also protected by the stable housing head.
- Easy operation via three control buttons - on/off, tilt mode, manual mode.
- Battery tray - easy to replace, even directly on the tripod.
- Large working area with the REC 160 RG receiver set - up to 600 m diameter.
- Two 5/8" threaded connections integrated into the housing.
- Guide plate with magnetic holder and reticle.
- Stable carrying bag.
Examples of application
- For a variety of tasks in drywall construction – for layout work, for installing partition walls, and for suspending ceilings.
- Quickly and easily transfer heights during electrical installation work – aligning sockets, switches, and cable trays horizontally and vertically.
- During installation work in industrial construction – measuring levels and determining alignment for the routing of pipes and conduits.
- In industrial assembly – measuring and aligning racking systems in the logistics sector.
Technical data
- Laser class 2
- current < 1 mW
- Laser wavelength: 510 - 530 nm
- Self-leveling range +/-5°
- Level accuracy +/-0.10 mm/m
- Set receiver working range Ø600 m
- Operating time 30 hours
- Battery type NS
- Protection class IP65
- Tripod mount 5/8"

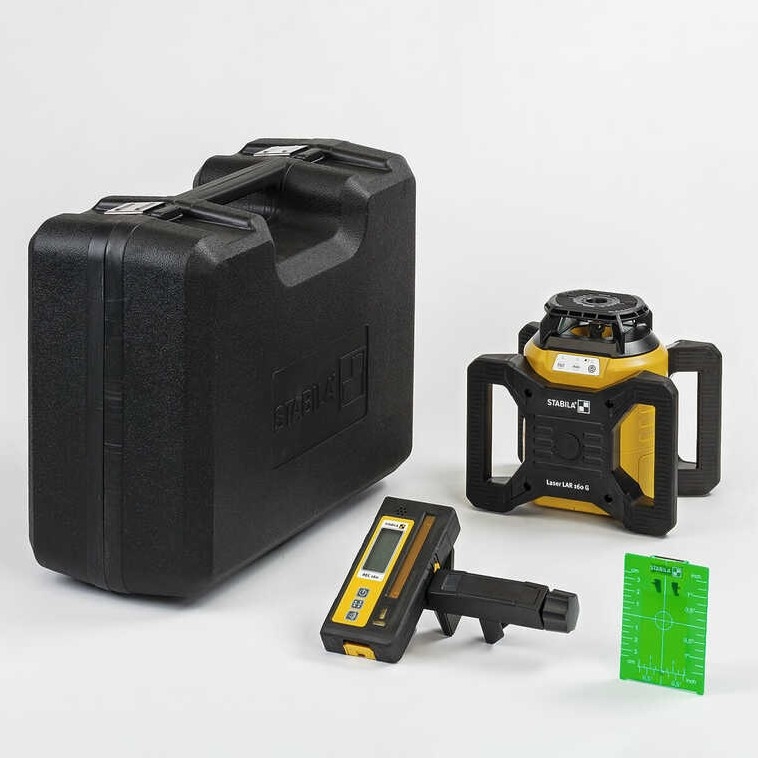

Scope of delivery
- Rotary laser LAR 160 G
- Receiver REC 160 RG
- Guide plate
- Carrying case
- 2 batteries D 1.5 V
- 2 batteries AA 1.5 V
