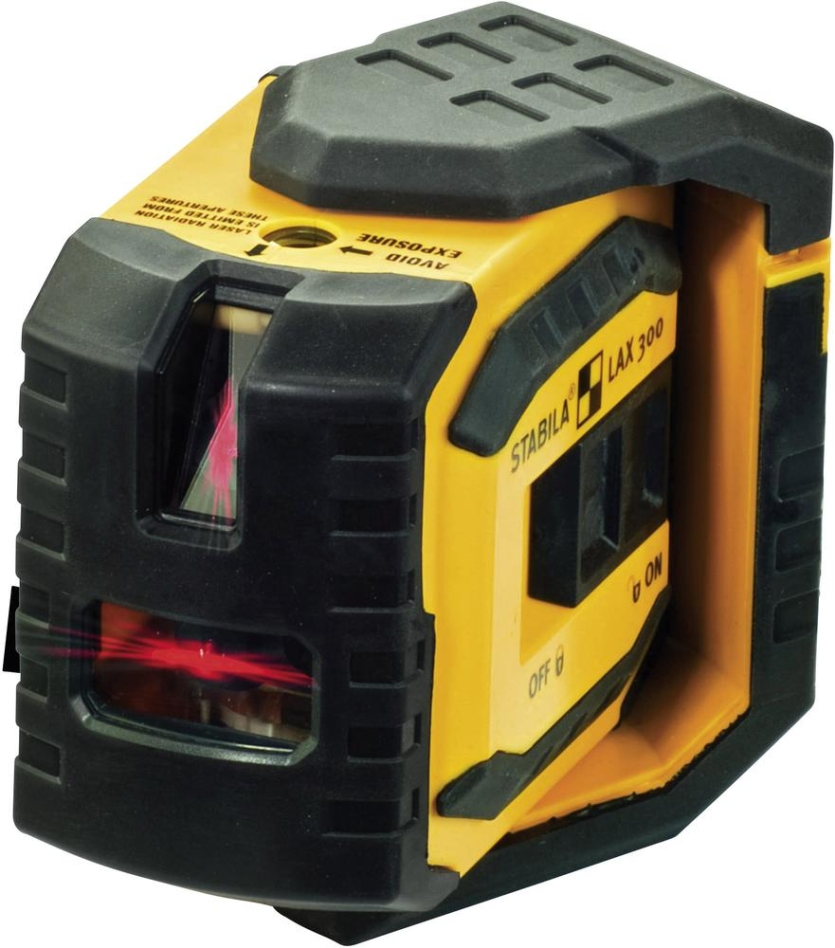

Stabila 18482 LAX300 Cross-line laser + telescopic tripod
Special features

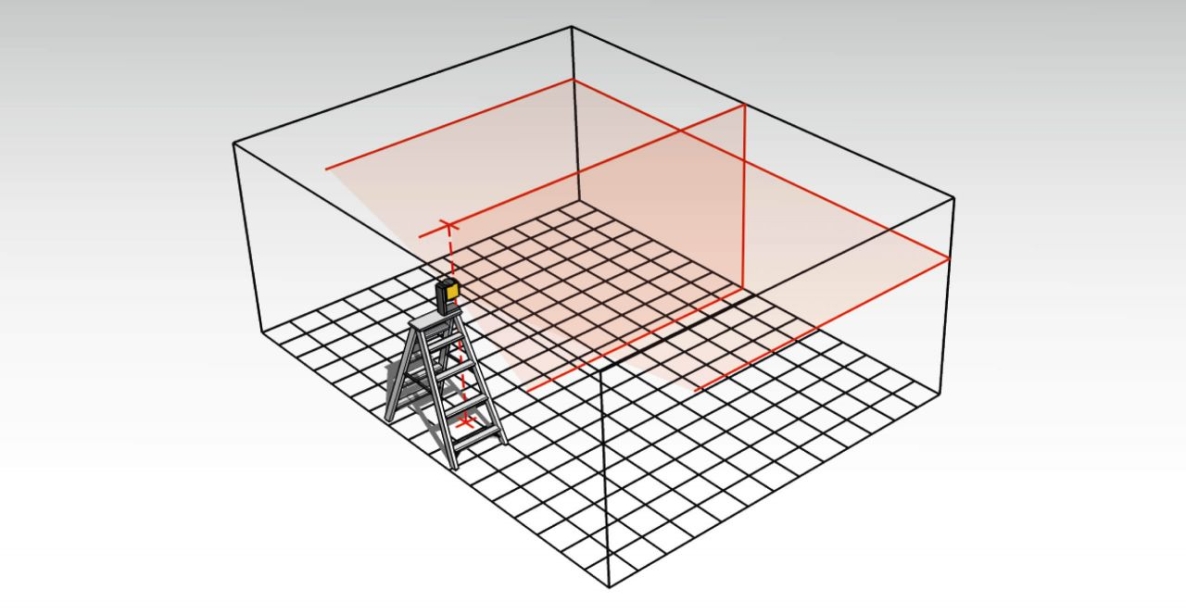

- One horizontal line, one vertical line, vertical points upwards and downwards with extendable base
- Optimal for working directly on the laser lines, for transferring the layout from the floor to the ceiling, for quickly and accurately determining vertical lines
- Very bright, thin, and clear laser lines.
- Visible line range 20 m Vertical vertical line radiating upwards and downwards - clearly visible thanks to extendable base: quick, accurate marking of, for example, ceiling lights
- The laser can be rotated 360° within the housing
- Variable application possibilities: 1. Use directly on the floor. 2. Mounting on a tripod (¼ inch thread). 3. With the neodymium magnets and the V-groove on metal objects or on the wall mount. 4. On the metal eyelets using a strap
- Shock-absorbing STABILA Softgrip casing
- Protection class IP 54 (protection against dust deposits inside.
- Protection against splashing water from all directions)
- Parking position: optimal protection of the optics against dust and scratches by rotating the U-handle
- Operating time of 20 hours with 3 AA batteries
- Thanks to the pulsed laser lines, the LAX 300 can also be used outdoors.
- With the optionally available line receiver REC 210 Line, the range is max. 250 m in a straight direction and up to 35 m at an angle of 45° relative to the device axis.
Technical data
- Line straightness ± 0.2 mm/m
- Accuracy Plumb beam (top/bottom) ± 0.3 / 0.4 mm/m
- Battery runtime: 20 h
- Self-leveling range: ± 4.5 °
- Power supply: 3x AA, 1.5 V
- Levelling accuracy: ±0.3 mm/m
- Visible laser wavelength: 635 nm
- Power: < 1 mW
- Measuring range: 20 m
- Laser class: 2

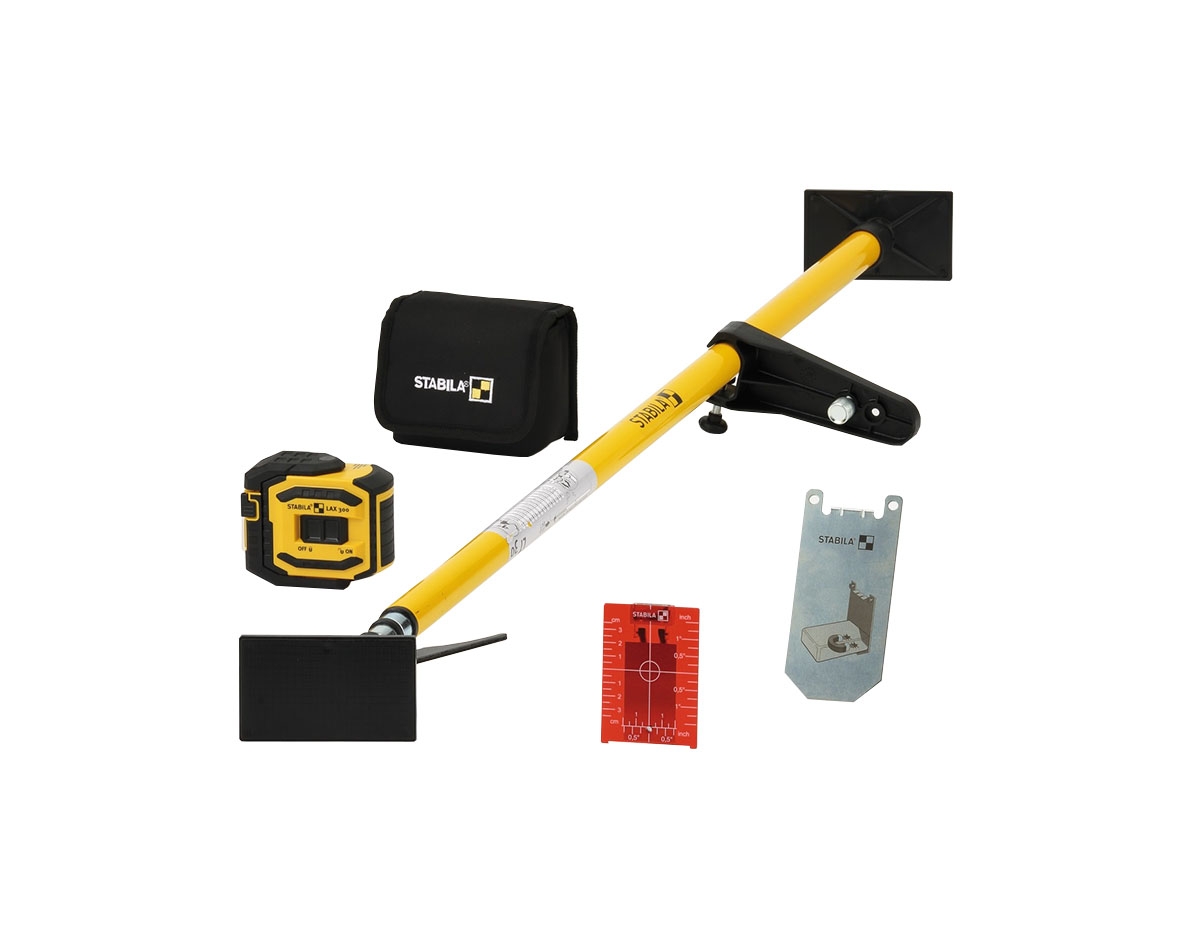

Standard accessories included
- Guide plate
- Belt bag
- Wall mount
- Telescopic tripod 20-365 cm
