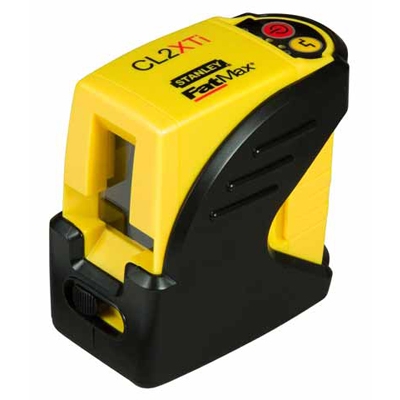

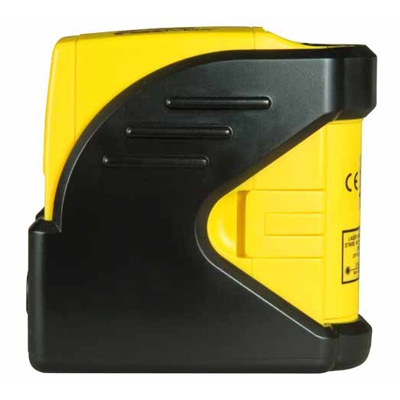

Stanley 1-77-121 CL2XTi Self-Leveling Cross Laser Kit
Special Features
- Cross laser projects 1 horizontal and 1 vertical line
- Supplied with carrying case, receiver, laser target, magnetic base with 1/4” universal thread, tripod, and 3 AA batteries
- Power Supply 3 AA batteries (included)
- Waterproof rating IP54
- Application range 50m (with receiver)
- Leveling range 4°
- Accuracy 3 mm at 10 m
- Laser class 1M
- 1/4” universal thread for mounting the laser on a tripod
- Can be used with receiver
- Shock sensor
- Lockable for transport
- Self-leveling spirit level with magnetic damping
- Warranty 1 year
Technical data
- Accuracy (linear/rotary) 0.3mm@1m
- Levelling range ± 4°
- Levelling time ≤ 3s
- Application range (m) 15m
- Application range with detector (m) 50m
- Battery (Alkaline unless otherwise stated) 3 x AA
- Battery life (h) 12
- Temperature range -10°C > 40°C
- Water and dust resistance IP54
- Adapter thread 1/4"
- Screen 2
- Line directions (Vertical/Horizontal) F/H
- Laser class Class 1M
- Laser diode(s) 635 nm
- Pulse mode ✓”
- Manual mode ✓”
- Laser beam color red
- Type (point/line/rotating) line
- Leveling level type Self-leveling

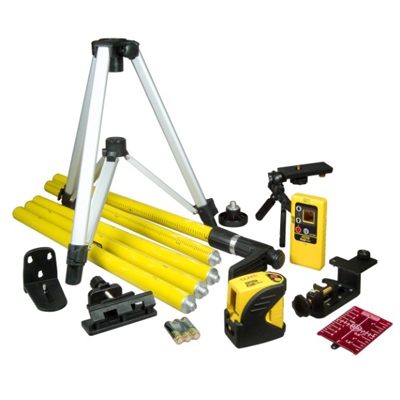

Standard included
- Carrying case
- Receiver
- Laser target
- Magnetic base with 1/4” universal thread
- Tripod
- 3x AA batteries
- Manual
