Topcon RL-H5B + LS-80X Construction Laser + Receiver - Professional Construction Laser
Special Features
- High-accuracy long-range laser. With its large range and accuracy, the RL-H5 series is easy to use for checking heights.
- User-friendly. All you have to do with this electronic self-leveler is press the on/off button to get to work within a few seconds. If the RL-H5B becomes unbalanced during operation, it automatically levels itself. The self-leveling motors are accurate to within ±20 arc seconds.
- Large working range. Do you need to shoot up to 400 m in height from the laser? That is possible without any problems. This instrument has the power and range to handle a work site with a diameter of 400 m.
- Long battery life You can work continuously for 100 hours with 4 (D) cell batteries in the RL-H5B.
- Reliable in all weather conditions The RL-H5B is robust and suitable for all construction sites and is resistant to dust, sudden showers, and even downpours.
Strong points
- Large working range (400 m)
- Smart long-range receiver
- Protection class IP66 suitable for construction sites
- ±20 arc seconds horizontal accuracy
- Self-leveling capability of ±5 degrees
- Battery life up to 100 hours
Benefits
- User-friendly: One-button operation, easy to use
- Reliable: Topcon tests every laser for dust, water, drops, vibrations, and temperature
- Efficient: Large working range prevents frequent repositioning on the construction site
- Long-lasting: Robust housing for long-term use
Applications
- Paving
- Landscaping
- Fence installations
- Foundations
- Earthmoving and leveling
Technical data
- Working range: up to 400 m diameter
- Accuracy: ±1 mm at 10 m
- Self-leveling: within a range of ±5°
- Rotation speed: 600 rpm
- Battery life: up to 100 hours (4x D-cell batteries)
- Weatherproof: IP66 – dust and waterproof
- Laser class: Class 2, red (635 nm)
- Operating temperature: -20 °C to +50 °C
- Weight: 2.5 kg
- Warranty: 5-year Topcon manufacturer's warranty

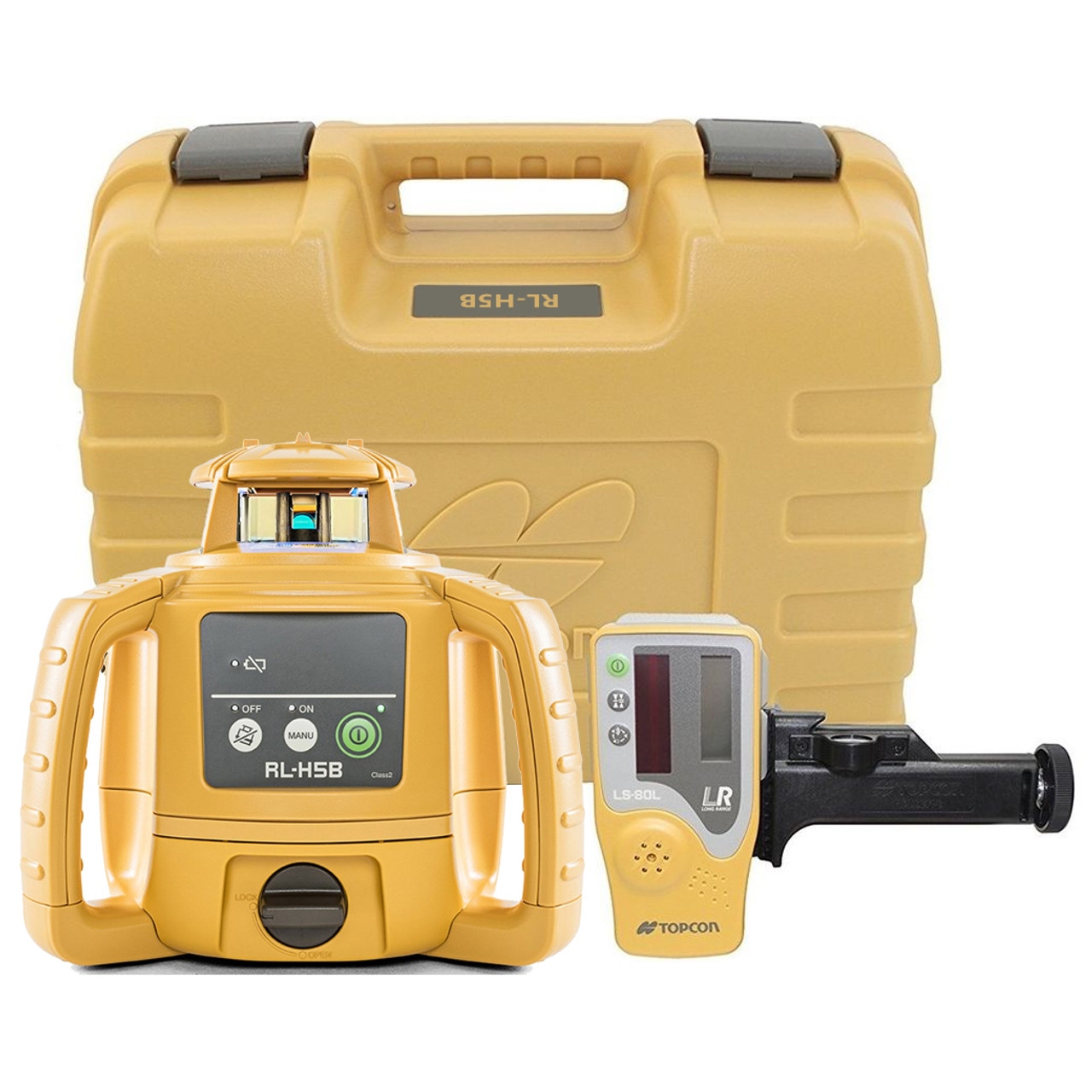

Scope of delivery
- Topcon RL-H5B Construction Laser
- LS-80X Receiver + pole clamp
- Carrying case
- 4x D-cell batteries
- 5-year warranty
