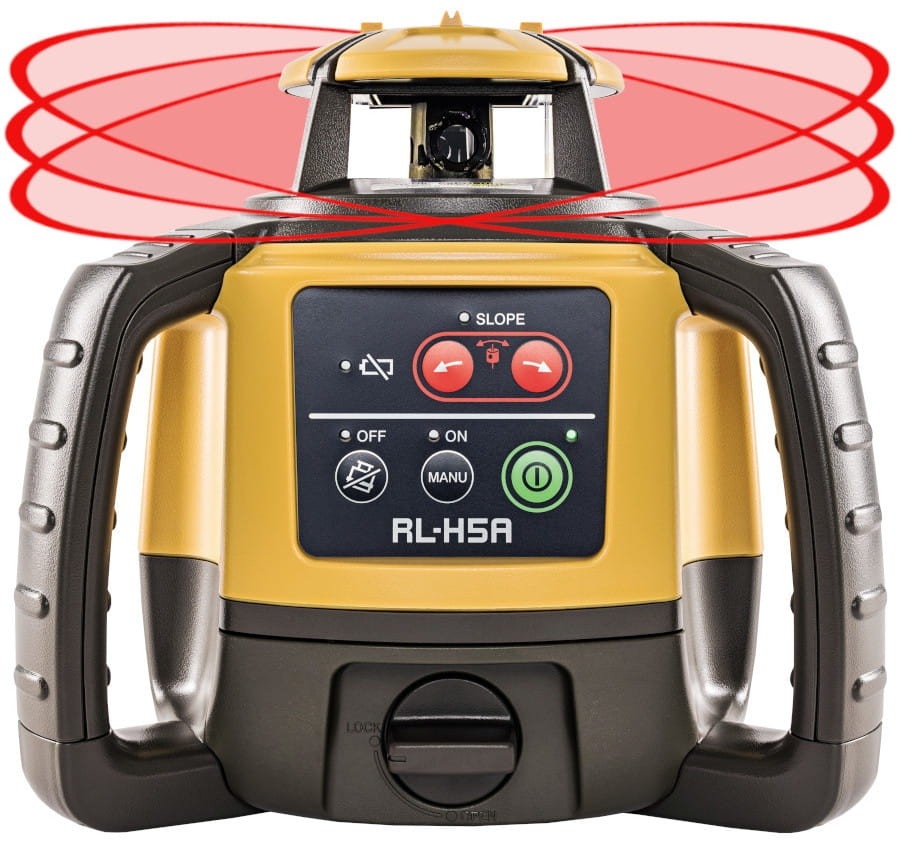

Topcon RL-H5A + LS-80X Construction Laser + Receiver – Professional Single Slope Construction Laser
Special Features
- High-accuracy long-range laser: With its long range and accuracy, the RL-H5 series is easy to use for checking heights.
- User-friendly: All you have to do with this electronic self-leveler is press the on/off button to get to work within a few seconds. If the RL-H5 becomes unbalanced during operation, it automatically levels itself. The self-leveling motors are accurate to within ±10 arc seconds.
- Large working range: Do you need to shoot up to 400 m in height from the laser? That is possible without problems. This instrument has the power and range to handle a work site with a diameter of 800 m.
- Long battery life: The RL-H5A gives you the option to work continuously for 60 hours with the rechargeable batteries or 100 hours with (4) dry-cell batteries.
- Reliable in all weather conditions: The RL-H5A is robust and suitable for all construction sites and can withstand dust, sudden showers and even downpours.
Strong points
- Fully automatic horizontal construction laser
- Accuracy: ±0.5 mm at 10 meters
- Working range: Up to 800 meters in combination with receiver (LS-80X or LS-100D)
- Rotation speed: 600 rpm – fast signal pickup
- Slope function: Manual single slope up to 5%
- Leveling: Automatic self-leveling
- Motion detection (TILT function): Switches Switches off upon disturbance
- Weatherproof: Dustproof and waterproof (IP66)
Benefits
- User-friendly: One-button operation, easy to use
- Reliable: Topcon tests every laser for dust, water, drops, vibrations, and temperature
- Safe: TILT mode prevents erroneous measurements in case of disturbances
- Efficient: Large working range prevents frequent repositioning on the construction site
- Long-lasting: Robust housing and NiMH battery for long-lasting use
- Smart receiver (LS-80X): Warns of displacement or low battery
Technical data
- Leveling type: Automatic (horizontal)
- Laser class: Class 2
- Slope: Manual, single-axis (max. 5%)
- Working range: Max. 800 m (diameter) with receiver
- Accuracy: ±0.5 mm/10 m
- Rotation speed: 600 rpm
- Battery life: Up to 100 hours
- Housing: IP66 (dust and water resistant)
- Warranty: 5-year Topcon manufacturer's warranty
Scope of delivery
- Topcon RL-H5A Construction Laser
- Topcon LS-80X Handheld Receiver with pole clamp (Holder 6)
- Battery pack BT-79Q (NiMH)
- Charger
- Case
