Topcon 314920474 RL-200-2S + LS-100D Construction Laser with Dual Slope 19070903

Sale price USD $160.00 Regular price USD $5384.50

Trust Icon

Order summary

Topcon 314920474 RL-200-2S + LS-100D Construction Laser with Dual Slope
160.00
Have a discount code?
Coupon code applied will be stored on your account

Subtotal
Shipping calculated at checkout.

OR

Buy With
Details

Topcon RL-200-2S + LS-100D Construction Laser with Dual Slope

Special Features

  • RL-200 Series The revolutionary RL-200 Series coding system from Topcon offers the highest repeatability, 7 arc seconds, of all other lasers. No one even comes close. Setup after setup, time after time, you are always exactly right.
  • Choose from two models, RL-200 1S with single slope or RL-200 2S with dual slope. The RL-200 1S offers single slopes from -5% to +25%. The RL-200 2S offers dual slopes up to ±10% in the X-axis, or up to a leading -5 to +25% in the Y-axis. Operate the RL-200 2S remotely. When the RL-200 2S is operating, the RC-400 (optional) displays all operating information up to 300 m away. Change the gradient, select menu settings, check the operational status, and even check the battery life, all without touching the laser.
  • Fully automatic dual slope: Save time and increase accuracy for complex slope work.
  • Extremely large working range: Ideal for large construction sites, foundations, or infrastructure projects.
  • Ease of use: Level at the touch of a button and easily adjustable slope functions via remote control.
  • Reliability: Thanks to automatic height monitoring, errors caused by vibrations or movement are avoided.
  • Robust and weather-resistant: Suitable for intensive use on the construction site, even in bad weather.

Strong points

  • 7 arc-second accuracy
  • Large slope range (up to 25% slope) without slope blocks
  • Battery life up to 100 hours
  • Range up to 1100 m
  • Full-function remote control (RL-200 2S)

Benefits

  • Fully automatic dual slope laser
  • X-axis: ±10%
  • Y-axis: –5% to +25%
  • Accuracy: ±7 arc seconds
  • Working range: up to 1100 meters (diameter)
  • Leveling range: ±5° motorized self-leveling
  • Slope setting: manual or via remote control
  • Rotation speed: adjustable to 300 / 600 / 900 rpm

Applications

  • Road construction and asphalt paving with slope
  • Hydraulic engineering and drainage applications
  • Earthmoving and foundation work
  • Construction of sports fields or sloped terrains
  • Construction of parking lots or industrial floors
  • Precision work in civil engineering (Ground, Road and Water Engineering)

Technical data

  • Accuracy 0.3 mm / 10 meters
  • Working range Ø (receiver) 1100 meters
  • Range (receiver) 550 meters
  • Visibility range (indoor) 0 meters
  • Self-leveling Yes
  • Leveling range ± 10°
  • Mechanism Servomotors
  • Slope 10% in X-axis and -5% to +25% in Y-axis
  • Slope mechanism Fully Automatic
  • Slope input Digital
  • Total slope 15% (total of the two axes)
  • Plumb line No
  • Rotation speed 300/600/900 rpm
  • Laser diode Class 2, 635nm, Red
  • Protection IP66
  • Operating time 90 hours
  • Power supply NiMH battery
  • Rechargeable Yes
  • Mains connection Yes
  • Operating temperature -20°C to +50°C
  • Weight 4.0 kg
  • Connection 5/8"
  • Dimensions LxWxH 217 x 168 x 253 mm
  • Warranty 5 Years

Scope of delivery

  • Topcon RL 200 2S Slope Laser

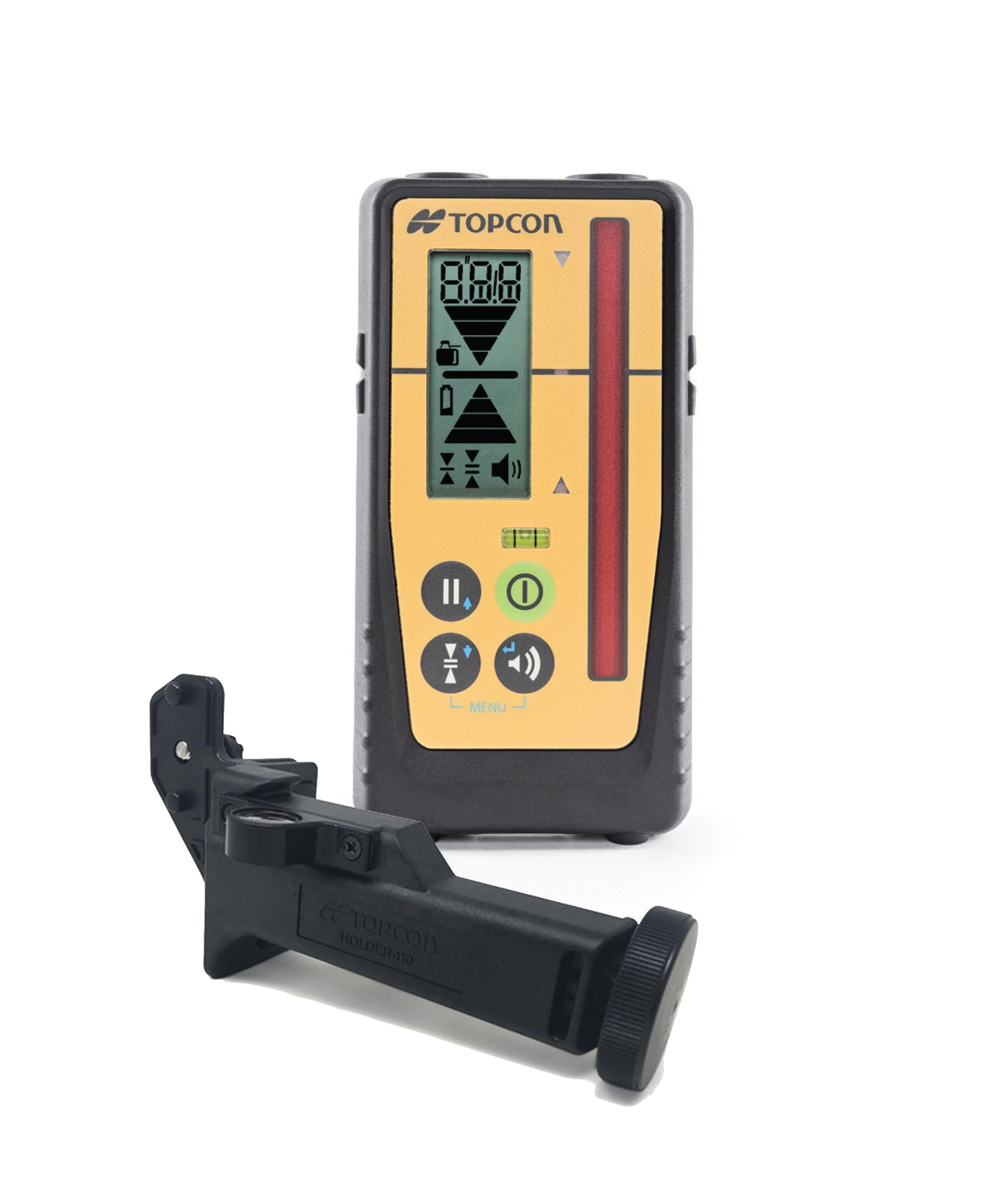

  • Topcon LS-100D handheld receiver
  • Topcon RC-400 Remote Control
  • TOP Construction Laser Calibration Report
  • Case
  • NiMH Battery
  • Charger
  • 5-year warranty
