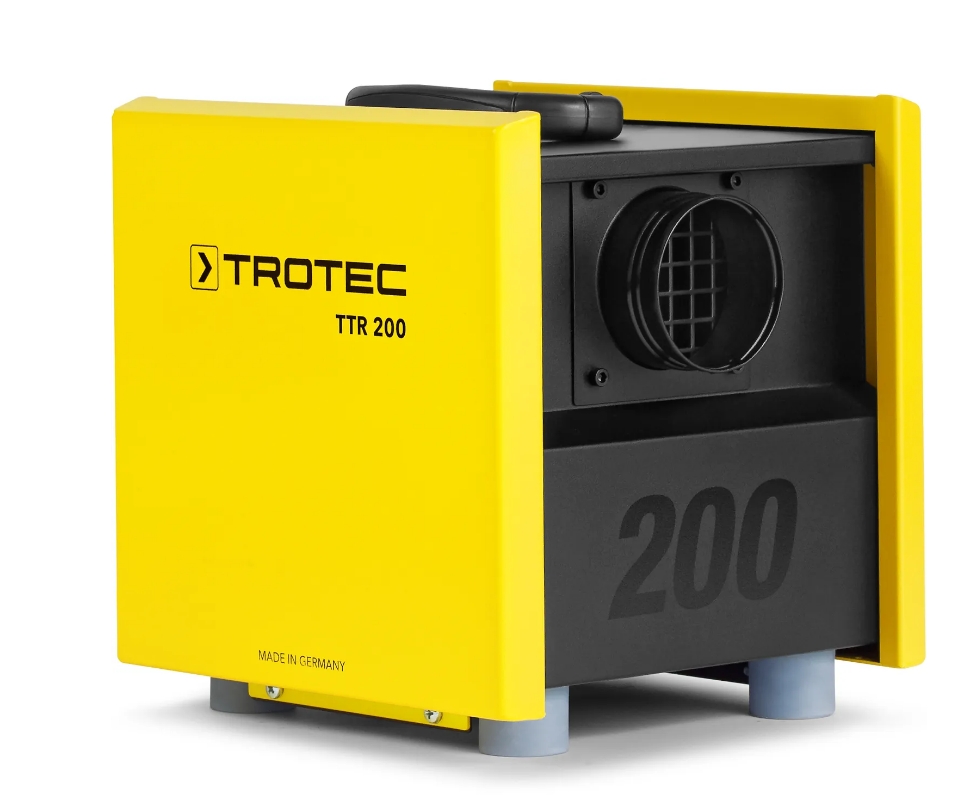

Trotec 110000010 TTR200 Adsorption Dehumidifier
Description
The TTR 200 offers professional quality "made in Germany" and is small, light, and amazingly powerful thanks to the practical German industrial design optimized for use.
- The continuously adjustable airflow control makes it possible to easily regulate the volume and power consumption in smaller rooms where only a small amount of air is required.
- The filter can be easily replaced by pulling it off, so time-consuming unscrewing is not necessary.
- A standard 4-pin socket for external switching enables flexible remote switching of the TTR 200 via an optional hygrostat.
This Adsorption dehumidifier already complies with the future fan directive ERP2015!
Practical benefits of the TTR 200 at a glance
- Air volume - infinitely adjustable
- Quick and easy filter change
- Extremely maintenance- and service-friendly construction
- Suitable for installation in suspended ceilings
- Sheet steel housing, galvanized and powder-coated
- Stackable to save space
- Lightweight and handy
- High-quality premium components
- Practical-optimized German industrial design - protected design
- Professional quality "Made in Germany"
- Hygrostat connection
- Durable, robust and reliable
Technical specifications
- Dry air (at intake air 20°C / 60%RH)
dehumidification [kg/24h] 8.4
dehumidification [kg/h] 0.35
air volume min. [m³/h] 40
air volume max. [m³/h] 120
nominal air volume [ m³/h] 80
external pressure [Pa] 50
inlet connection Ø [mm] 80
Exhaust connection Ø [mm] 80 - Regeneration air
Nominal air volume [m³/h] 15
External pressure [Pa] 30
Exhaust connection Ø [mm] 38/50 - Operating principle TTR-Bisorp-Mono
- Operating range
Temperature min. [°C] -15
Temperature max. [°C] 35
Humidity min. [% RH] 0
Humidity max. [% RH] 100 - Mains connection 230 V/50 - 60 Hz
- Nominal current consumption [A] 1.8
- Power consumption [kW] 0.45
- Heating power consumption [kW] 0.4
- Recommended fuse [A] 16
- Connection plug CEE 7/7
- Cable length [m] 2.5
- Noise levels at a distance of 1 m [dB(A)] 60
- Automatic dehumidification Non-stop dehumidification
- Length (without packaging) [mm] 305
- Width (without packaging) [mm] 260
- Height (without packaging) [mm] 285
- Weight (without packaging) [kg] 9
- Housing type metal/powder coating
- Mobility non-staining rubber feet / carrying / transport handle(s)
- Equipment
Air volume control
Operating hours counter
Ammeter
DIN connector for external ON/OFF
integrated heat recovery
self-regulating PTC electric heater - Heating regeneration type Electro-PTC
