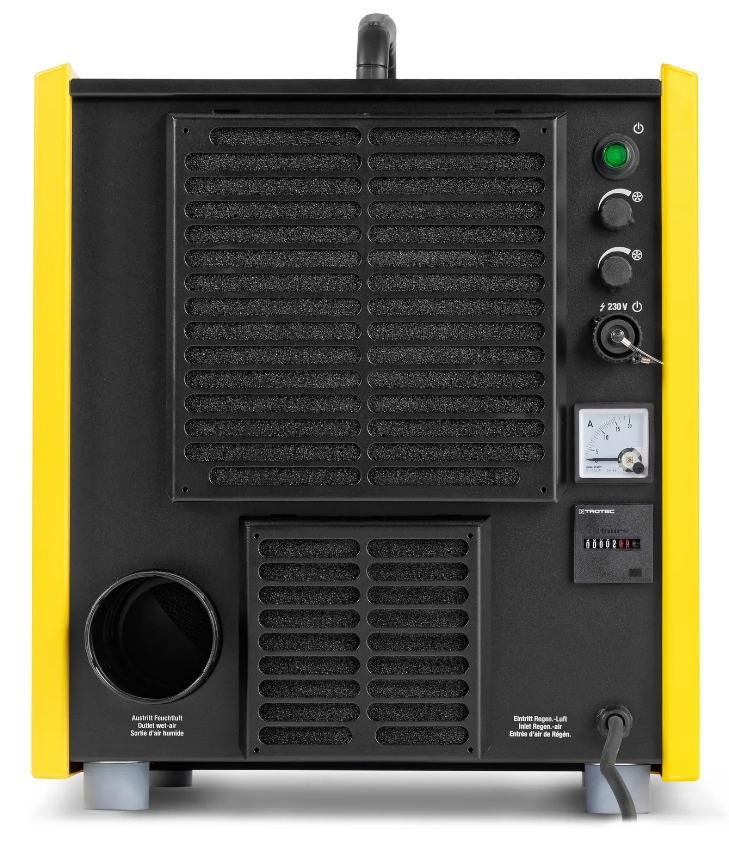

Trotec 1110000025 TTR 500 D Adsorption Dehumidifier
Description
The TTR 500 D offers professional quality "made in Germany" and is small, light, and amazingly powerful thanks to the practical German industrial design optimized for use.
- The continuously adjustable airflow control makes it possible to easily regulate the volume and power consumption in smaller rooms where only a small amount of air is required.
- The filter can be easily replaced by pulling it off, so time-consuming unscrewing is not necessary.
- A standard 4-pin socket for external switching enables flexible remote control of the TTR 500 D via an optional hygrostat.
- All TTR-D models are also equipped as standard with the advanced Duoventic air volume control, which allows both fans of the separate air circuits to be controlled electronically and steplessly, independently of each other.
Practical benefits of the TTR 500 D at a glance
- 2 fans with separate air ducts
- Air volume - steplessly adjustable
- Quick and easy filter change
- Extremely maintenance- and service-friendly design
- Suitable for installation in suspended ceilings
- Sheet steel housing, galvanized and powder-coated
- Stackable to save space
- Lightweight and handy
- High-quality premium components
- Practical optimization for real-world use - protected design
- Professional quality "Made in Germany"
- Hygrostat connection
- Durable, robust and reliable
Technical specifications
- Dry air (at inlet air 20°C / 60%RH)
- Dehumidification [kg/24h] 52.8
- Dehumidification [kg/h] 2.2
- Air volume min. [m³/h] 180
- max. air volume [m³/h] 550
- Nominal air volume [m³/h] 480
- external pressure [Pa] 150
- Inlet connection Ø [mm] 125
- Outlet connection Ø [mm] 125
- Regeneration air
Nominal air volume [m³/h] 80
External pressure [Pa] 80
Outlet connection Ø [mm] 80 - Operating principle TTR-Trisorp-Dual
- Operating range
Temperature min. [°C] -15
Max. temperature [°C] 35
Min. humidity [% RH] 0
Max. humidity [% RH] 100 - Mains connection 230 V/50 - 60 Hz
- Nominal current consumption [A] 9.2
- Power consumption [kW] 3
- Heating power consumption [kW] 2.7
- Recommended fuse [A] 16
- CEE 7/7 plug
- Cable length [m] 2.5
- Sound levels at a distance of 1 m [dB(A)] 74
- Automatic dehumidification Non-stop dehumidification
- Length (without packaging) [mm] 452
- Width (without packaging) [mm] 400
- Height (without packaging) [mm] 456
- Weight (without packaging) [kg] 25
- Housing type
metal
powder coating - Mobility
Stain-free rubber feet Carrying / transport handle(s) - Equipment
