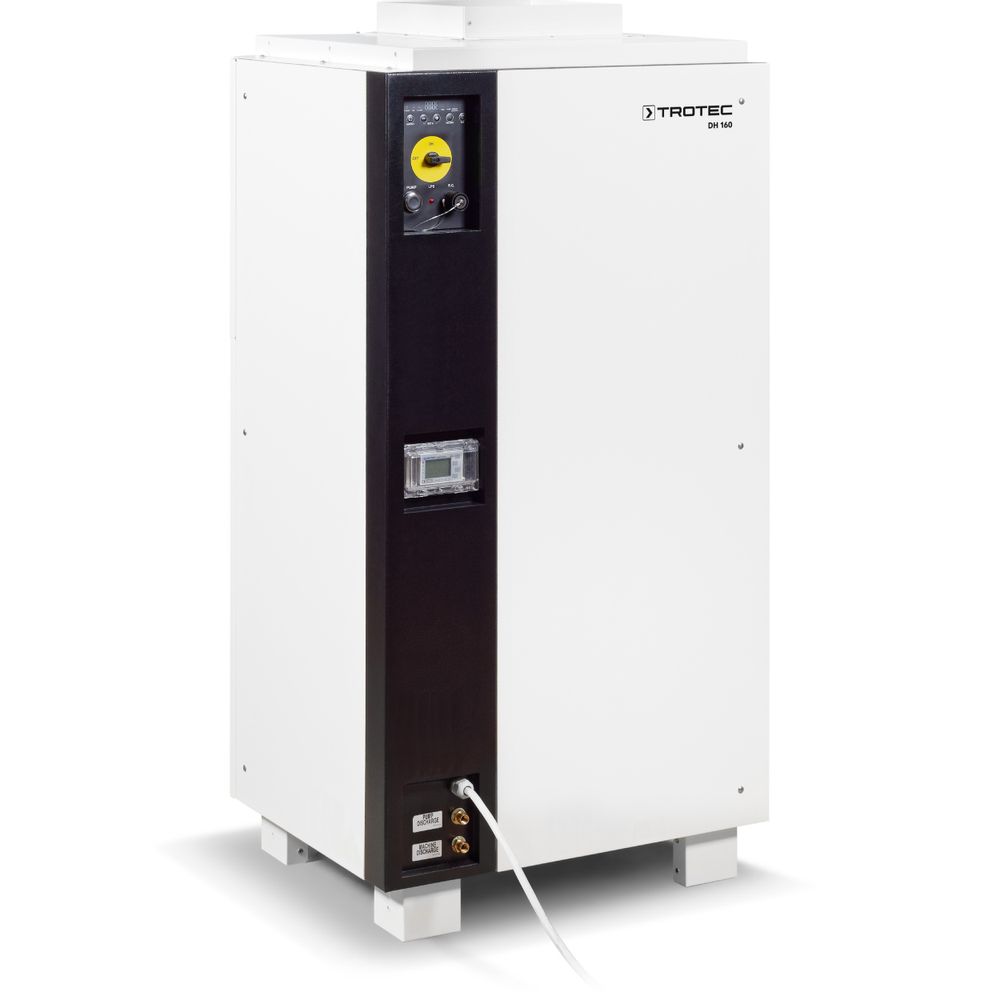

Trotec 1125000161 DH 160 BX industrial dehumidifier 245L/24H
Description
DRYING XXL
- The DH 160 industrial condenser dryer, which can also be supplied with a stainless steel housing, is characterized by its high dehumidification capacity, reliable continuous operation characteristics, and practical equipment options
- Designed for freestanding use, the device can also be installed on the wall or under the ceiling and connected to existing air duct systems without problems if the preparation is carried out on-site.
- The DH 160 dehumidifier features a smooth-running scroll compressor for constant, pulsation-free pressure for energy-efficient operation. cooling
- In combination with its self-regulating EC centrifugal fan, this robust industrial dryer ensures consistently high dehumidification capacity during continuous operation, even at low temperatures.
Easy installation and commissioning
- The DH 160 is an effective dehumidification solution that can be installed directly without additional construction work and can also be retrofitted to support existing air handling systems.
- Simple setup, connection to the mains, and laying the condensate drain hose – done.
- Unlike competing models in the same class, the DH 160 already features a built-in condensate pump as standard, allowing condensate to be easily discharged to higher areas.
HIGH PROFITABILITY
- In high air circulation mode, this industrial dryer removes the maximum amount of moisture from the air according to the target humidity level pre-selected by the hygrostat.
- The dual-flow, continuously variable self-regulating EC centrifugal fan and the powerful compression cooling system of the DH 160 ensure high efficiency.
- The dry air supplied to the room is simultaneously heated by the process, so that the use of conventional heat and ventilation energy can be noticeably reduced.
- With a COP of 2.9, the DH 160 is capable of generating 2.9 kW of heat from every kilowatt of energy consumed during dehumidification.
- Furthermore, the professional hot gas defrosting of the DH 160 operates with automatically controlled cycle reversal.
- In this process, the refrigerant circuit is heated via a Four-way valve briefly reversed to keep the evaporator ice-free, so that the previously cold evaporator now becomes a hot condenser and vice versa.
- Compared to hot gas bypass defrosting, cycle inversion ensures faster defrosting, improving efficiency and thereby increasing the net OEE of this dehumidifier.
VARIOUS APPLICATIONS
- Without effective control, humidity can lead to a variety of problems in production processes and in inventory, furniture, or stored goods.
- Optimal humidity control not only protects against rust, rot, material decomposition, or reduced quality during the processing and storage of goods, but mold formation can also be reliably prevented.
- The robust design with high dehumidification performance and simple installation options make the DH 160 an effective universal solution for a wide range of applications, for example:
- Keeping production facilities and storage areas with specific humidity requirements dry
- Corrosion protection in ship engine rooms and optimal storage atmosphere for
