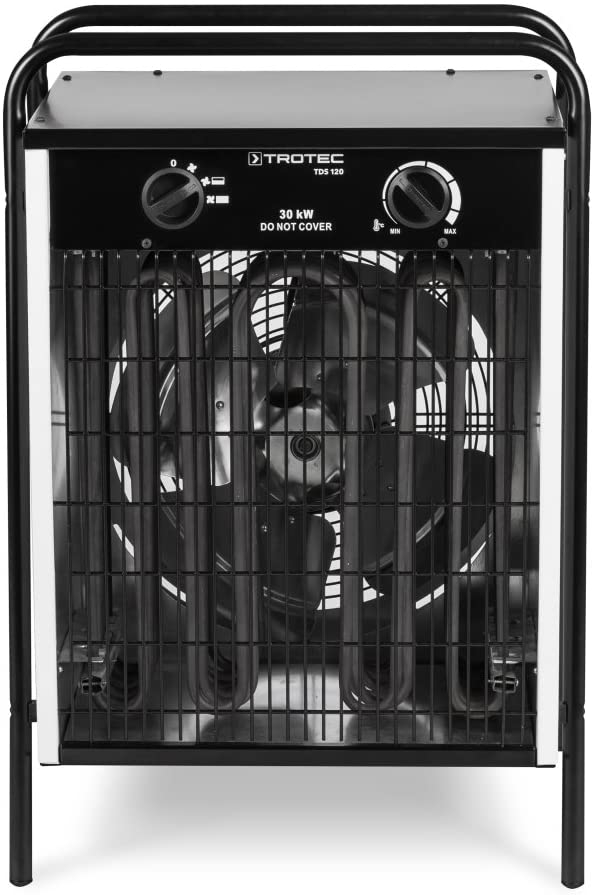

Trotec 1410000032 TDS 120 Electric Heater 30 kW 400 Volt
Description
The combined heat and power unit among the TDS electric air heaters
- With a total heating capacity of 30 kW, the TDS 120 is the undisputed number 1 among Trotec's popular TDS electric air heaters and offers comfortable capacity reserves for the continuous heating of larger spaces or for temperature control of large building areas.
- Thanks to the integrated thermostat control, the generated warm airflow can be continuously adjusted to the desired temperature and dosed as needed via the two-stage power control for room-filling temperature regulation.
- And because our logo is applied in relief on the outside, we have also Distinctive extras have been added to the inside that make the decisive difference compared to conventional standard electric air heaters.
- In addition to standard features such as overheat protection or a fan motor with thermal protection, which can also be used in fan mode without the heating function, the TDS 120 electric air heater also features practical equipment, for example, an integrated air guide that optimally directs the warm airflow outwards and initiates maximum efficiency – or via trapezoidally mounted carrying handles, on which the electric air heater can be stacked multiple times.
Here are some practical advantages at a glance:
100% TROTEC - development, design, production
- Multi-level temperature control
- Integrated thermostat for constant heat airflow
- overheating protection
- Fan motor with thermal protection
- Condensation-free heat - no oxygen consumption - therefore ideal for indoor heating
- Wall or ceiling mounting possible - bracket available as an accessory
- fan function
Possible application areas
- construction container
- garages
- gastronomy
- greenhouses
- market stalls
- storage and workshops
- boat shed
- workshops
- shipbuilding
- and much more..
Technical specifications
- Heat output stage 1: fan only
- Heat output level 2: 15 kW
- Heat output level 3: 30 kW (25,795 kcal)
- Air volume: 1980 m³/h
- Nominal current consumption: 44 A
- Recommended fuse: 50 A
- Connection voltage: 400 V / 50 Hz
- Power connection: CEE 63 A, 5-pin
- Connection cable: accessories
- Thermostat: integrated
- Mobility: portable
- Noise level: 73 dB (A)
- Overheating protection: yes
- Protection class: IPX 4
- Dimensions L x W x H: 485 x 450 x 665 mm
- Weight: 25 kg
Scope of delivery
- In box
