Trotec1410000101 Electric heater TDE 25 V2
For over 25 years, professional users have appreciated the extremely robust TDE 25 electric heater as a long-proven heating solution for clean heat on construction sites, in workshops and construction containers, or in sales, storage, and exhibition spaces.

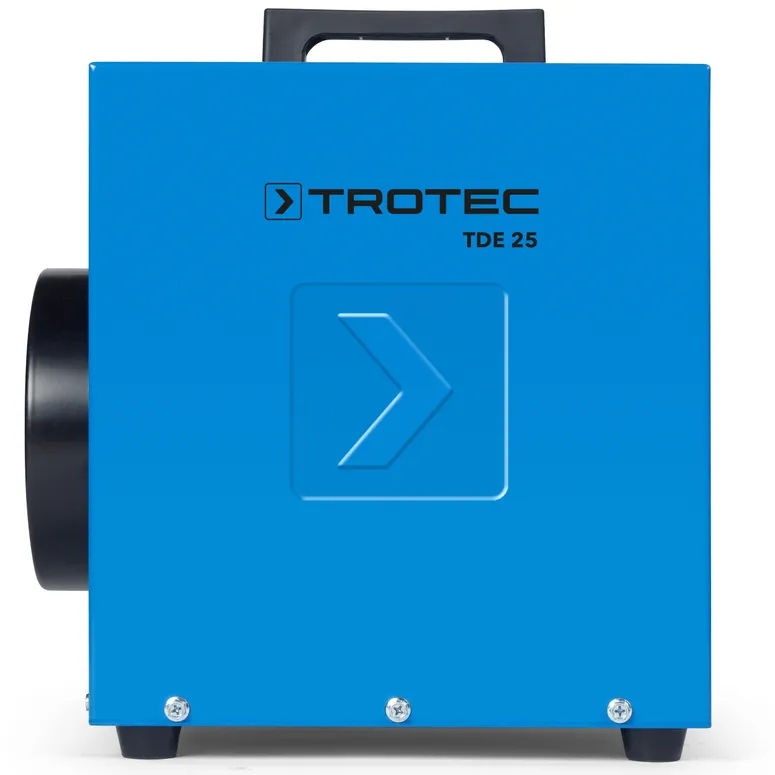

Now, this successful model has been revised with a view to the future, clearly recognizable by the distinctive logo print on the side panels of this electric heater, which characterizes the TDE 25 at first glance as a distinctly solid heater of 100% Trotec brand quality.
For although the TDE 25 is pleasantly small, it is anything but fragile: its housing features an extremely robust double wall made of 1.5 mm thick Zincor steel with a hardened protective layer for durable protection against corrosion, even if the coating is damaged.
The double-wall construction of the TDE 25 reliably prevents the outer casing from heats up. Without radiation losses, the powerful axial fan can dissipate heat into the room and direct the warm airflow through the galvanized outlet grille—if desired, also via a connectable warm air duct in remote rooms that do not require ventilation, as no oxygen is consumed during electric heating with the TDE 25.
Its high reliability, long service life, and trouble-free continuous operation make the plug-in TDE 25 the first choice for rental professionals and all users who require a virtually indestructible heating solution in an easy-to-transport compact format.
Special features
- Development, design, production: 100% Trotec
- Extremely robust design—ideal for rental and frequent changes of location
- Double-walled construction—no heating of the outer casing
- Galvanized air outlet grille

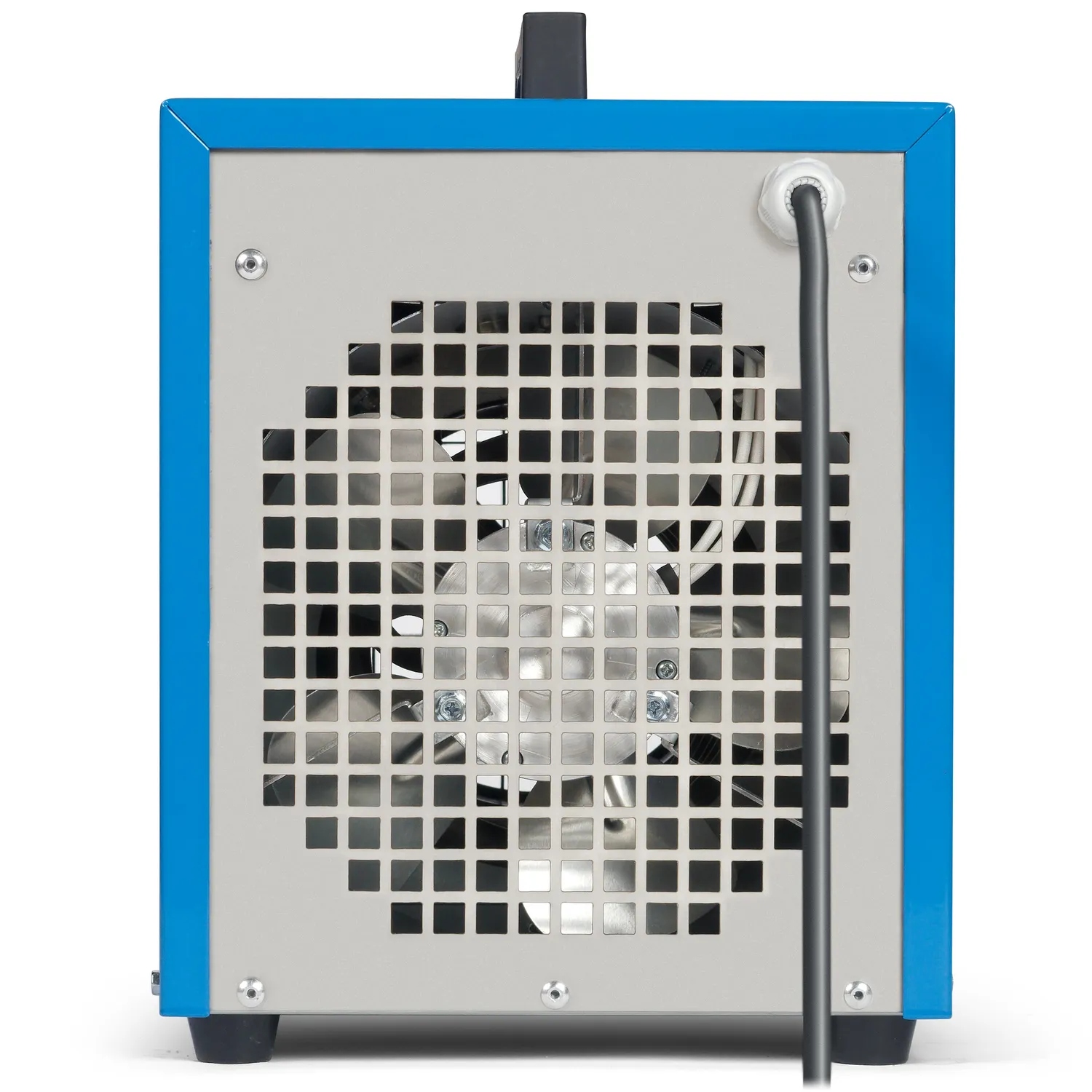

- Stainless steel air intake grille
- Connection option for a hot air hose
- Overheating protection for high operational reliability
- Condensation-free heat - no oxygen consumption, therefore suitable for use in enclosed spaces
Technical data
- Weight: 10 kg
- Hose connection diameter: 155 mm
- Housing: Metal
- Fan type: Axial
- Heating element: Stainless steel heating coil
- Functional principle: Electric
- Mobility: Carrying/transport handles, Stand feet
- Nominal current consumption: 13 A
- Mains voltage and frequency: 230 V, 50 Hz
- Cable length: 2.7 m
- Plug: Included
- Overheating protection: Yes
- Temperature overheating protection: 85 °C
- Minimum operating/storage temperature: –15 °C
- Maximum operating/storage temperature: 25 °C
- Air volume: 206 m³/h
- Heating capacity level 1: 3 kW
- Heating capacity max: 3 kW
- Maximum temperature increase: 43 °C
- Sound level at 1 m distance: 65 dB(A)
