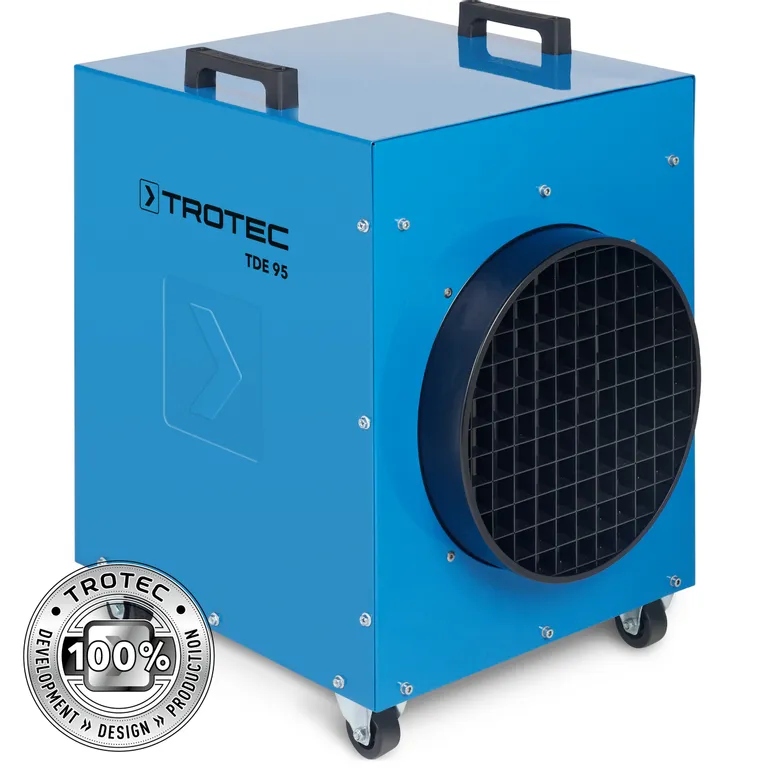

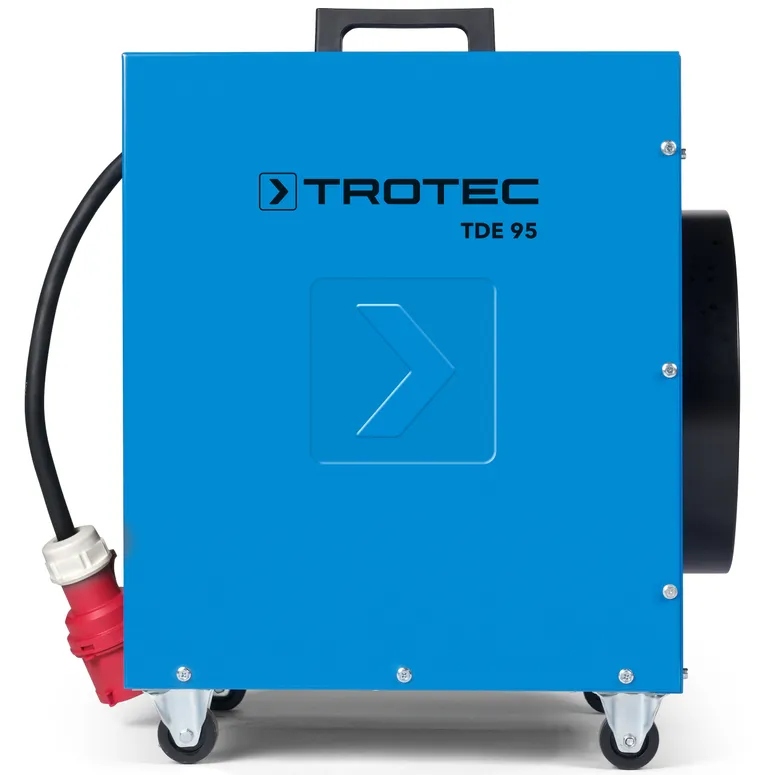

Trotec1410000121Electric heater TDE 95 V2
The TDE 95 electric heater has always impressed with its remarkable appearance. Always recognizable by its impressive continuous heating capacity of up to 18 kW, and now also by the striking embossed logo on the side panels of this latest generation of TDE devices. Simply a rock-solid, high-class heater of 100% Trotec brand quality.
Designed for trouble-free continuous use, this electric heater produces more than 1,000 cubic meters of clean warm air hour after hour, which can also be transported to remote areas if necessary via a connectable air hose. Transporting this electric heater from one construction site to another is just as easy, as it is equipped with two sturdy handles made of non-heat-conducting material and four robust fixed swivel casters.
And because the TDE 95 has been developed without compromise for areas with extreme demands, such as rental or frequently changing construction sites, it features a practically indestructible double-walled housing made of 1.5 mm thick Zincor steel with a hardened protective coating, a stainless steel air intake plate, and a galvanized air outlet grille for directing the warm airflow.
Thanks to the high heating output, adjustable in three settings, the TDE 95 can also quickly heat large spaces that, moreover, do not need to be ventilated, since no oxygen is consumed during electric heating with the TDE 95. The condensation-free heat with a large volume makes this robust electric heater the optimal support device for dehumidifiers to accelerate the dehumidification of buildings.
Special features
- Development, design, production: 100% Trotec
- Extremely robust design - ideal for rental and frequent changes of location
- Double-walled construction - no heating of the outer casing
- Galvanized air outlet grille
- Stainless steel air intake grille
- Connection option for a hot air hose
- Overheating protection for high operational reliability
- Condensation-free heat - no oxygen consumption, therefore suitable for use in enclosed spaces
Technical data
- Weight: 30 kg
- Hose connection diameter: 300 mm
- Fan stages: 1
- Heating element: Stainless steel heating coil
- Cable length: 0.45 m
- Nominal current consumption: 27 A
- Mains voltage and frequency: 400 V, 50 Hz
- Minimum operating/storage temperature: –15 °C
- Maximum operating/storage temperature: 25 °C
- Overheating protection: Yes
- Overheating protection temperature: 80 °C
- Fan type: Axial
- Functional principle: Electric
- Housing: Metal
- Mobility: Carrying/transport handles, Metal wheels with rubber treads
- Plug: Included
- Air volume: 1074 m³/h
- Heating capacity level 1: 0.1 kW
- Heating capacity level 2: 9 kW
- Heating capacity level 3: 13.5 kW
- Heating capacity level 4: 18 kW
- Heating capacity max: 18 kW
- Maximum temperature increase: 49 °C
- Sound level at 1 m distance: 65 dB(A)
