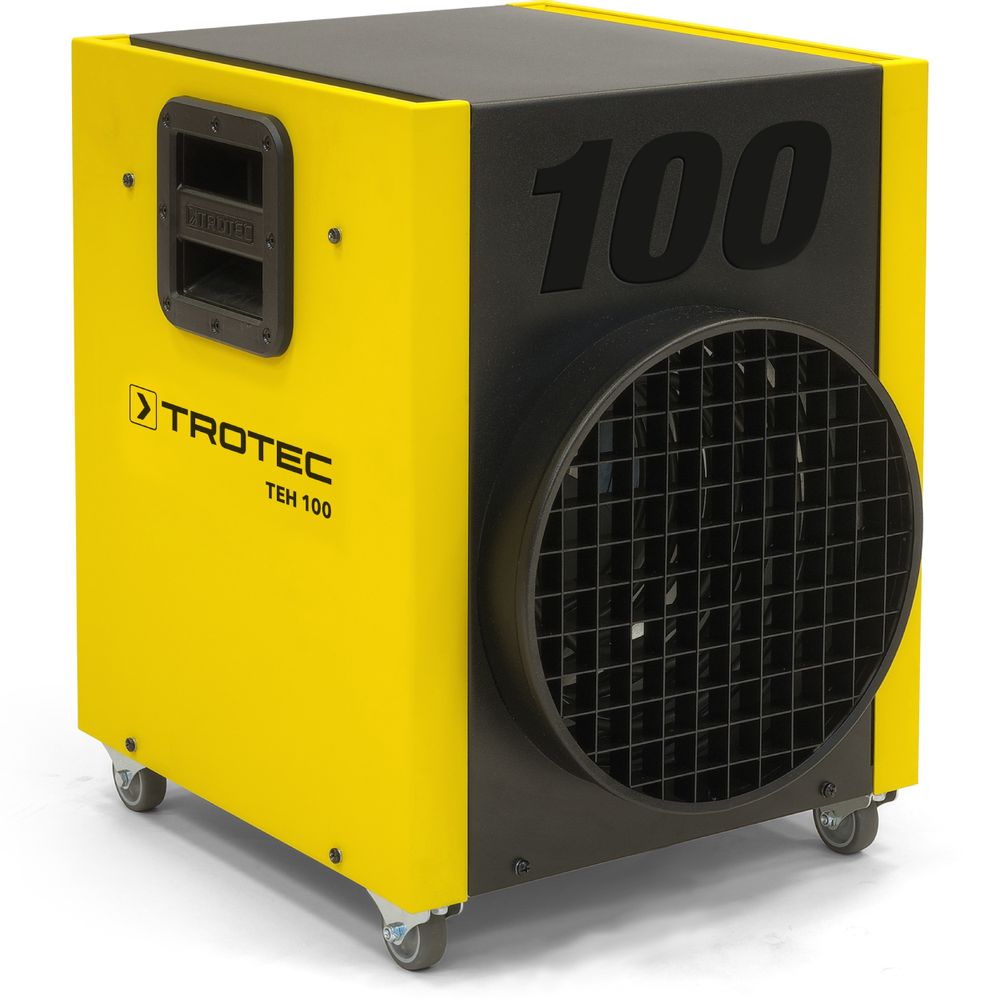

Trotec 1410000220 TEH 100 Electric Heater 18 kW
Description
Absolutely top-notch, not only in terms of condensation-free heat
- If you are looking for the perfect mobile heating solution for construction sites, industry, and agriculture, or for heating unventilated spaces with heat generated without condensation, we can wholeheartedly recommend our most powerful professional electric heater from the TEH series.
- The first-class impression when viewing the practical German industrial design, which is protected as a utility model, is impressively confirmed when we look at the inner values of this powerful electric heater:
- A specially developed chassis is hidden beneath the protective coated sheet metal construction of the TEH 100. This chassis is extensively flow-optimized for maximum system efficiency, allowing targeted warm air to flow over hose sections of up to 15 m without turbulence losses.
- Thanks to the targeted hot air flow and the high fan power of up to 1,785 m³/h, even large spaces are heated very quickly in a short time.
- To ensure that the connected hot air hose is always securely fastened given the extreme performance values of the TEH 100, the heater features an additional heat-insulated connector with a special hose support ring.
- The air outlet grille integrated into the socket also forces a targeted flow of warm air.
- Thanks to the robust stepped switching of the TEH 100, the heating power can be dosed as needed for every application.
- Step one activates the fan and stages two to four increase the heating power in three stages to the maximum value of 18 kW.
- For storage or transport, the multi-stackable electric heater can be flexibly stacked with models of the same dimensions, such as the TEH 70, in any combination to save space thanks to the identical stacking groove, and individual heating structures can be implemented during use, for example 180-degree chimney installations for combined air transport in multiple directions.
- The transport wheels of the TEH 100, which rotate all around, make changing location quick and easy.
- Once reassembled in the stack and locked in the stacking groove with the roller stop lock, the wheels once again provide a secure hold.
Here are some practical advantages at a glance:
- Particularly wear-resistant sheet metal construction with wear-resistant protective layer
- Flow-optimized chassis for a directed, turbulence-free flow of warm air
- Practical stacking groove for stable, space-saving storage and transport
- Minimal heating of the outer jacket due to double-walled housing design
- Extremely low-maintenance design
- Robust Trotec Ergo recessed handles with internal grip clip offer optimal support during carrying
- Practical-optimized German industrial design - protected design
- Multiple stacks with models of the same dimensions
Technical specifications
- Heating capacity:
- Level 1 [kW] 0
- Level 2 [kW] 9
- Level 3 [kW] 13.5
- Level 4 [kW] 18
- Max. level [kW] 18
- Max. level [kcal] 15,400
- max. air volume [m³/h] 1,785
