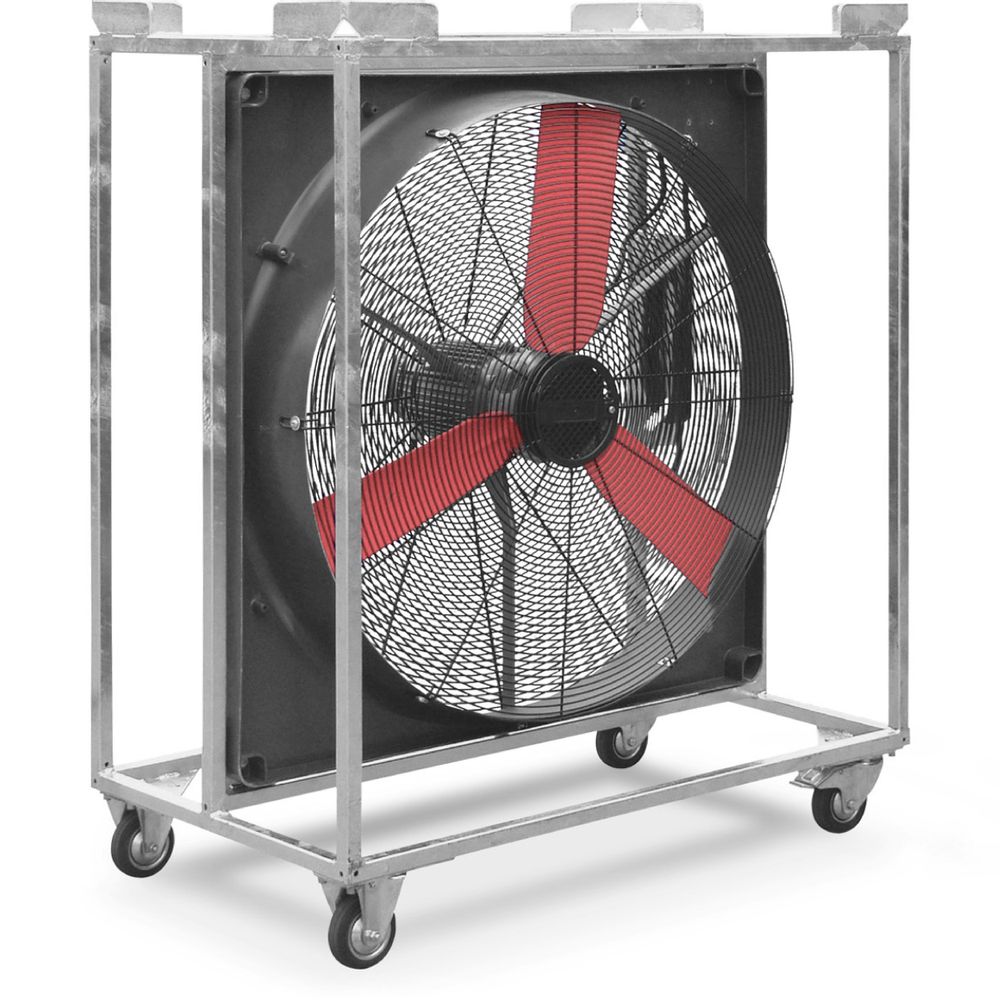

Trotec 1510001020 TTW 20000 Fan
Description
Housed in an extremely robust frame construction with protective grilles on the suction and discharge sides and high-quality transport rollers with parking brakes, this powerful axial fan is as robust and reliable as it is durable and stable in value.
- Therefore, the fan, which is flexible and mobile in use, is suitable for both indoor and outdoor use and an ideal aid in all situations where a high capacity for air circulation and ventilation is required.
- In commercial and industrial companies, the TTW 20000 fan can be ideally used for cooling machines and interiors or for cross-ventilation.
- And for film and photo productions or event agencies, this continuously adjustable Fan the first choice when it comes to effective ventilation:
Because the TTW 20000 is not only stackable multiple times in the warehouse, but also during operation!
In this way, real "storm fronts" can be installed quickly and easily - and with impressive amounts of air!
Practical benefits
100% Trotec - development, design, production
- Powerful axial fan - manufactured to high industrial standards
- Extremely robust for professional continuous use, even under the harshest conditions or for rental
- High air circulation capacity
- Robust device also for harsh operating conditions
- Multi-stack capability for installation of ventilation stacks and space-saving storage
- Easy to use
- Quick relocation thanks to transport rollers
Technical specifications
- Air volume: 0 - 20,000 m³/h (infinitely adjustable)
- Airflow: blow-out
- Air outlet velocity: 8.8 m/s (31.69 km/h)
- Max. air pressure: 110 Pa
- Max. power consumption: 0.79 kW
- Power connection: Schuko / CEE 7/7
- Connection: 230 V / 50 Hz
- Max. current consumption: 3.8 A
- Plug: safety plug (CEE 7/7)
- Throwing distance indoors/outdoors: 58 m / 15 m
- Transport temperature max.: 45 °C
- Fuse: 10 A
- Protection class: IP55
- Noise level (distance 3 m): 50 - 80 dB (A)
- Length: 1,070 mm
- Width: 600 mm
- Height: 1,300 mm
- Weight: 52 kg
