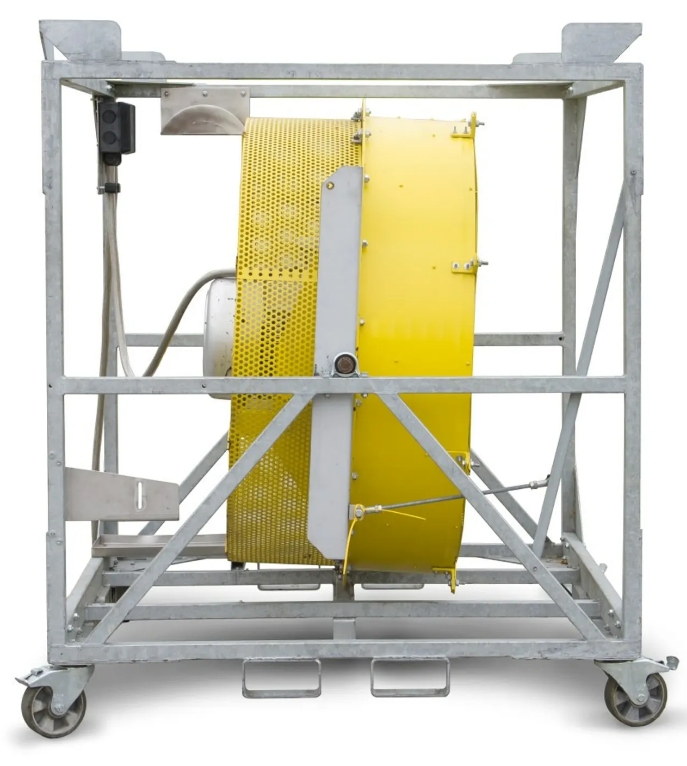

Trotec 1510001060 TTW 100000 Wind Machine
Description
The TTW 100000 wind machine is a high-quality device made entirely in Germany, featuring an extremely robust transport frame construction and high-quality mechanical and electronic components.
- This makes it practically indestructible and ideally suited for mobile air circulation for machine rental companies, industry, and entertainment.
- Thanks to the standard frequency converter, the enormous power of this unit can be regulated precisely and steplessly.
- And with protection class IP55, the wind machine can be used flexibly both indoors and outdoors.

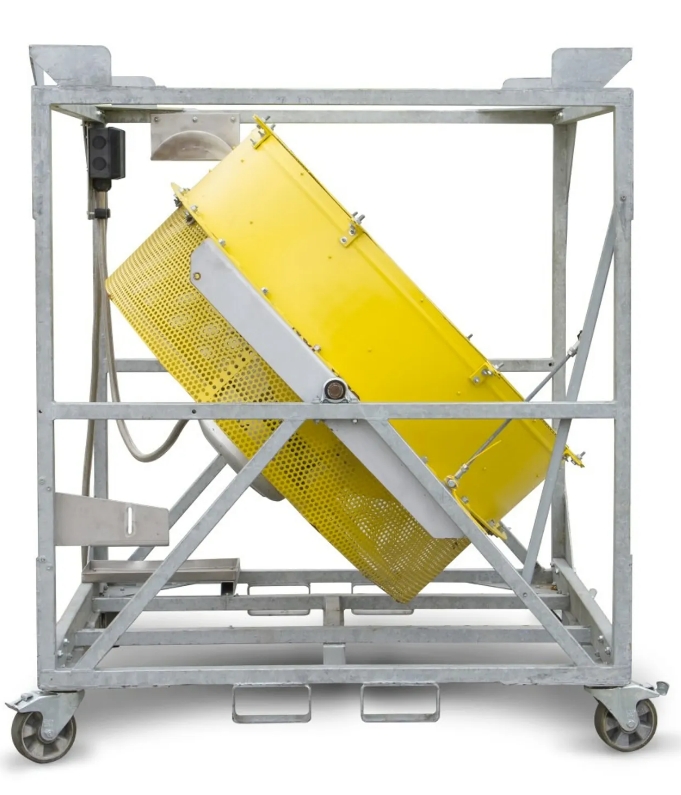

- The TTW 100000 wind machine, which is also available in an explosion-proof version, is equipped with a steplessly adjustable tilting device for the fan.
- Thanks to the adjustable flow direction, the airflow can also be directed to high wall or ceiling areas.
Practical benefits
- Professional quality "made in Germany" - original Trotec production
- Extremely robust construction, ideal for rental
- Infinitely adjustable flow direction angle
- Infinitely variable air volume
- Also available as an explosion-proof version
Technical specifications
- max. Free-blowing air volume: 109,000 m³/h
- Airflow: blowing
- Air outlet velocity: 24.6 m/s (88.56 km/h)
- Throwing distance outside/inside: 120 m / 400 m
- Fan speeds: continuously adjustable
- Max. air pressure: 600 Pa
- Max. transport temperature: 60 °C
- Connection voltage: 400 V / 50 Hz
- Power consumption: 20 kW
- Fuse: 63 A
- Plug: CEE 63 A
- Protection class: IP55
- Noise level (distance 3 m): 86 dB (A)
- Dimensions L x W x H: 1,500 x 1,500 x 1,500 mm
- Weight: 580 kg
- Airflow: blowing
