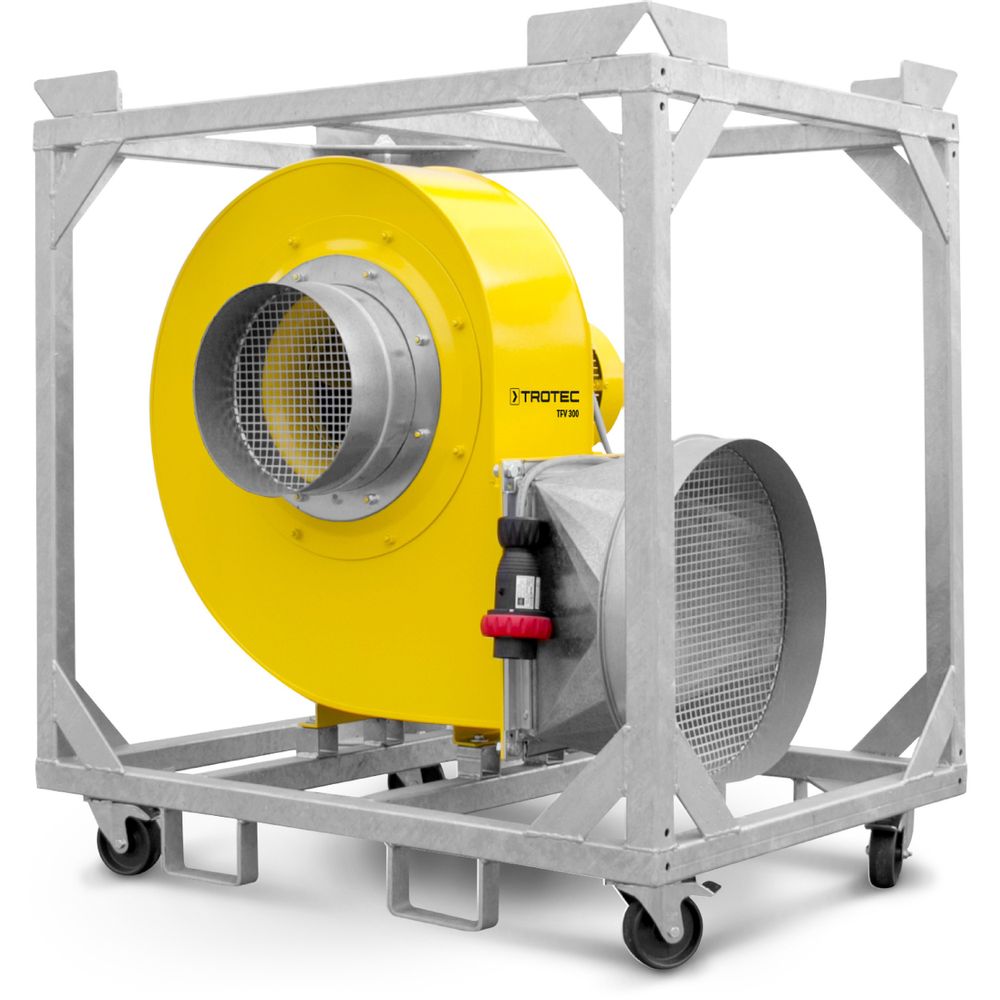

Trotec 1510002030 TFV300 Radial fan
Special features TFV300
- Mobile radial fan suitable for hoses with a diameter of 300 mm on both the intake and exhaust sides.
- Can also be used for dust extraction in combination with the Dryfast dust bag.
Technical data
- Air output 5,200 m³/hour
- Max. Air pressure 2,000 Pa
- Connection voltage 230 / 50 V / Hz
- Current consumption 9.56 A
- Recommended fuse 16 A
- Power consumption 2.2 kW
- Motor speed 2,800 rpm.
- Mobility: Wheeled
- Hose connection suction / discharge Ø 300 mm
- Dimensions L x W x H 630 x 580 x 970 mm
- Weight 38 kg
- Protection class IP55
- Noise level 78 dBA @ 1 m
Scope of delivery
- Supplied without the wheeled frame shown (can be ordered separately as an option)
