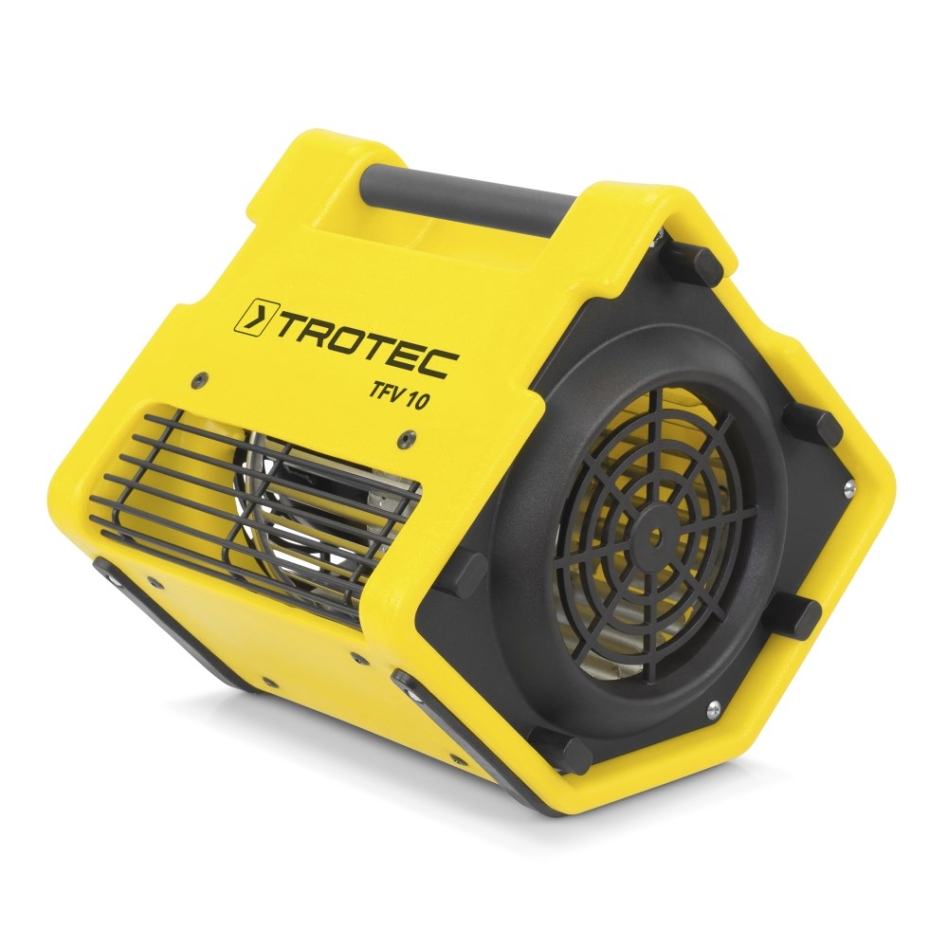

Trotec 1510003021 TFV 10 Turbo Fan
Description
Equipped with dual-flow centrifugal fans with an extra-large special shaft and specially shaped air outlet ducts, the drying speed is noticeably increased
- The room air is optimally distributed via a wide airflow generated close to the floor, which helps with damp screeds or wet floor coverings.
- Especially in the field of carpet cleaning, accelerated drying offers a decisive advantage – in addition to saving time: the natural fibers deform significantly less and the formation of waves is prevented.
- Compared to conventional turbo fans, the TFV 10 offers a 10 percent higher flow rate and 3 times higher pressure. The standard built-in operating hours counter provides information on the elapsed operating hours.
- Naturally requires the released energy also to ensure a good grip
- Thanks to the all-round, non-slip guides, this is always the case - even at full power and, of course, in one of the three variable installation positions
- The base plate can be dried without worry after driving with the classic car.
- All functions are packed into the striking cube-shaped design
- Storage and transport are convenient and space-saving - the turbo fan can also be stacked
- With the integrated cable holder, the handy handle, the rubber stop pads, and the protective recessed control panel, the housing naturally offers even more advantages in terms of transport and storage - as well as comfort and safety.
Practical benefits
- Development, design, production: 100% Trotec
- Strong yet lightweight polyethylene construction
- Dual-flow centrifugal fans with extra-large special shaft
- Round-running, non-slip runners
- Multi-stage blower
- Operation and storage possible at multiple angles
- High energy efficiency, therefore equally powerful and energy-saving
- Stackable
- Motor with high-quality ball bearings - no uneven load on the shaft
- Practical-optimized German industrial design - protected design
Technical specifications
- Air volume level 1: 310 m³/h
- Air volume level 2: 380 m³/h
- Airflow: blow-out
- Fans speeds: 2
- Max. air pressure: 150 Pa
- Max. transport temperature: 60°C
- Connection voltage: 230 V / 50 Hz
- Power consumption: 0.09 kW
- Plug type: CEE 7/7
- Cable length: 3m
- Required fuse: 10 A
- Hour meter
- Noise level (distance 3 m): 61.5 dB(A)
- Mobility: portable / stackable
- Protection class: IP22
- Dimensions (L x W x H): 235 x 247 x 237 mm
- Weight: 4.95 kg
Scope of delivery
- In the box
