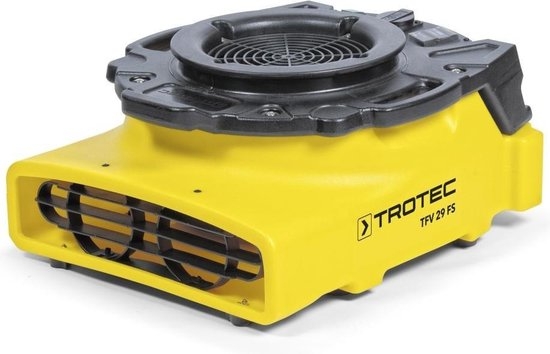

Trotec 1510003025 TFV 29 FS Radial Fan
Description
The ingenious design of this radial fan with optimally shaped, robust metal blades ensures a high air output at maximum pressure while simultaneously maintaining a minimal overall height.
- Therefore, the TFV 29 FS, manufactured in a space-saving, slim design, is extremely powerful despite its low height and achieves noticeably shorter drying times.
- The center of gravity and shape of the TFV 29 FS are designed for four different installation positions: close to the ground, at an angle, vertically, and laterally, allowing you to optimally utilize this turbo dryer for every task.
- Thanks to the flexible installation options, floor surfaces as well as walls and ceilings, or entire stairwells, can be dried faster through accelerated air exchange. and this moist air can be fed into an additional condenser dryer.
- Even in very confined spaces, the TFV 29 FS finds optimal space.
- In addition to the splash-proof operating switch and a standard operating hours counter, the control panel of the TFV 29 FS also features a service socket, allowing multiple devices to be connected in combination with the long connection cable of the TFV 29 FS. conveniently connected in series to just one socket.
- The drying job with the TFV 29 FS is just as quick and easy as it is transportable: a low weight and carrying handles on both sides make this possible, and the integrated cable holder creates order without the risk of tripping.
- In the service trolley or warehouse, the TFV 29 FS can then be stacked multiple times to save space.
Four drying settings, countless uses
- With the TFV 29 FS, you are always well prepared
tilt position
- The stand integrated into the floor can be folded out to tilt the TFV 29 FS, thus making Drying ventilation of stair or wall surfaces and entire stairwells is possible.
Ground position
- With this configuration, all extracted air is distributed at high speed into a wide airflow directly above the floor, resulting in significantly faster drying of the surface.
Vertical position
- For targeted drying of ceilings.
Upright
- Ideal for drying small spaces or drying large surfaces.
Practical benefits
- Robust compact housing in a slim design
- Four adjustment positions to accelerate drying depending on the situation
- Lightweight construction, easy to handle
- Can be stacked multiple times to save space during storage and transport
- Integrated service connection
- Standard hour meter
- MID-compliant dual meter for operating hours and energy consumption (optional)
- Multiple units can be connected in series to just one socket (daisy chain connection)
Technical data
- Air volume: 1,150 m³/h
- Fan speeds: 1
- Air pressure: 290 Pa
- Mains connection: 230V/50Hz
- Nominal current consumption: 0.74 A
- Current consumption: 0.17 kW
- Cable length: 5m
- Connection plug: CEE 7/7
- IP protection class
