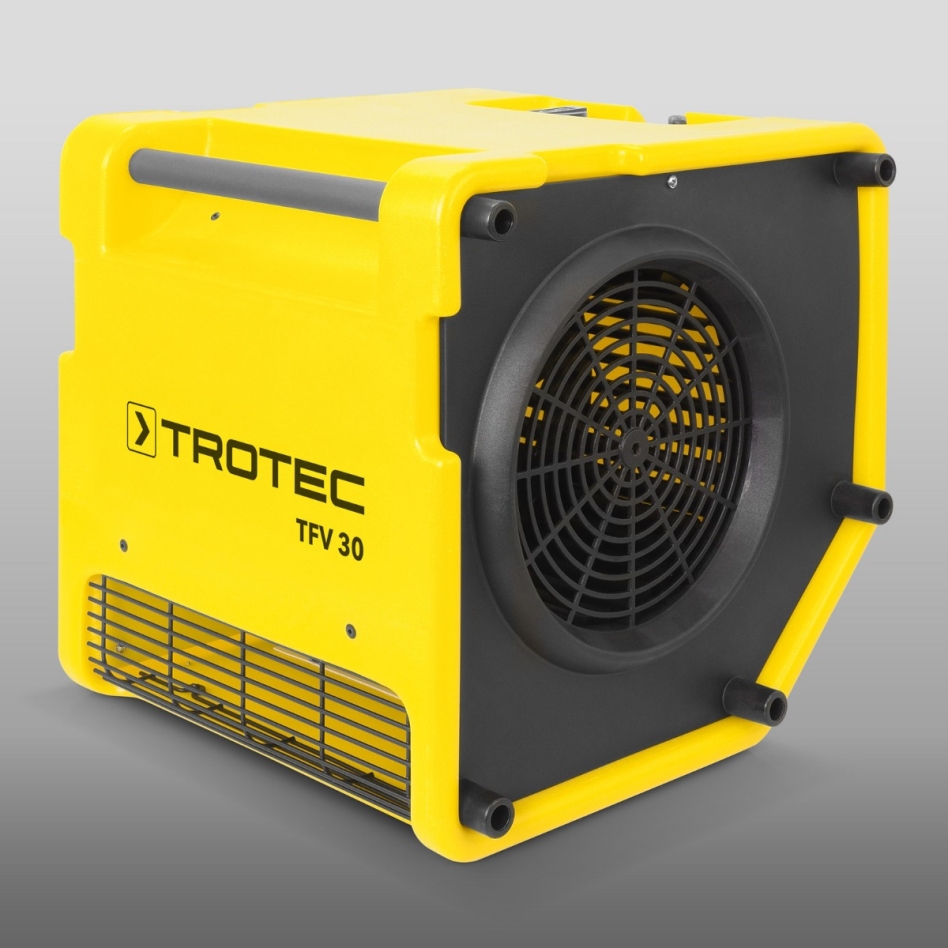

Trotec 1510003041 TFV 30 Turbo Fan
Equipped with dual-flow centrifugal fans featuring an extra-large special shaft and specially shaped air outlet ducts, the drying speed is noticeably increased
Description
- The room air is optimally distributed via a wide airflow generated close to the floor, which helps with damp screeds or wet floor coverings.
- Especially in the field of carpet cleaning, accelerated drying offers a decisive advantage – in addition to saving time: the natural fibers deform significantly less and the formation of waves is prevented.
- Compared to conventional turbo fans, the TFV 30 offers a 10 percent higher volume flow and 30 percent higher pressure with 30 percent lower power consumption. The standard built-in dual meter provides information on the number of operating hours and energy consumption.
- Naturally, the released energy also requires a good grip
- Thanks to the all-round, non-slip guides, this is always the case – even at full power and, of course, in one of the three variable installation positions.
- The base plate can be dried without worry after driving out with the classic car.
- All functions are packed into the striking cube-shaped design
- Storage and transport are convenient and space-saving – the turbo fan can also be stacked
- With the integrated cable holder, the handy handle, the rubber stop pads, and the protective recessed control panel, the housing naturally offers even more advantages in terms of transport and storage – as well as comfort and safety.
Practical benefits
- Development, design, production: 100% Trotec
- Strong yet lightweight polyethylene construction
- Dual-flow centrifugal fans with extra-large special shaft
- Round-running, non-slip runners
- Multi-stage blower
- Operation and storage possible at multiple angles
- High energy efficiency, therefore equally powerful and energy-saving
- Stackable
- Motor with high-quality ball bearings - no uneven load on the shaft
- Practical-optimized German industrial design - protected design
- MID-compliant dual counter for operating hours and energy consumption
Technical specifications
- Air volume stage 1: 1,600 m³/h
- Air volume stage 2: 1,850 m³/h
- Air volume stage 3: 2,200 m³/h
- Airflow: blow-out
- Fans settings: 3
- Max. air pressure: 425 Pa
- Max. transport temperature: 60°C
- Connection voltage: 230 V / 50 Hz
- Power consumption: 0.85 kW
- Plug type: CEE 7/7
- Cable length: 4m
- Required fuse: 10 A
- Service socket
- Dual meter for operating hours and energy consumption (MID-compliant)
- Noise level (distance 3 m) Level 1: 73.5 dB (A)
- Noise level (distance 3 m) Level 2: 80.8 dB (A)
- Noise level (distance 3 m) Level 3: 86.2 dB(A)
- Mobility: portable / stackable
- Protection class: IP22
- Dimensions (L x W x H): 442 x 426 x 429 mm
- Weight: 18.5 kg
Scope of delivery
- TFV 30 Turbo Fan
- Integrated operating hours counter
- Dual counter for operating hours and energy consumption (MID-compliant*)
- Radial fan
- Carrying and transport handles
