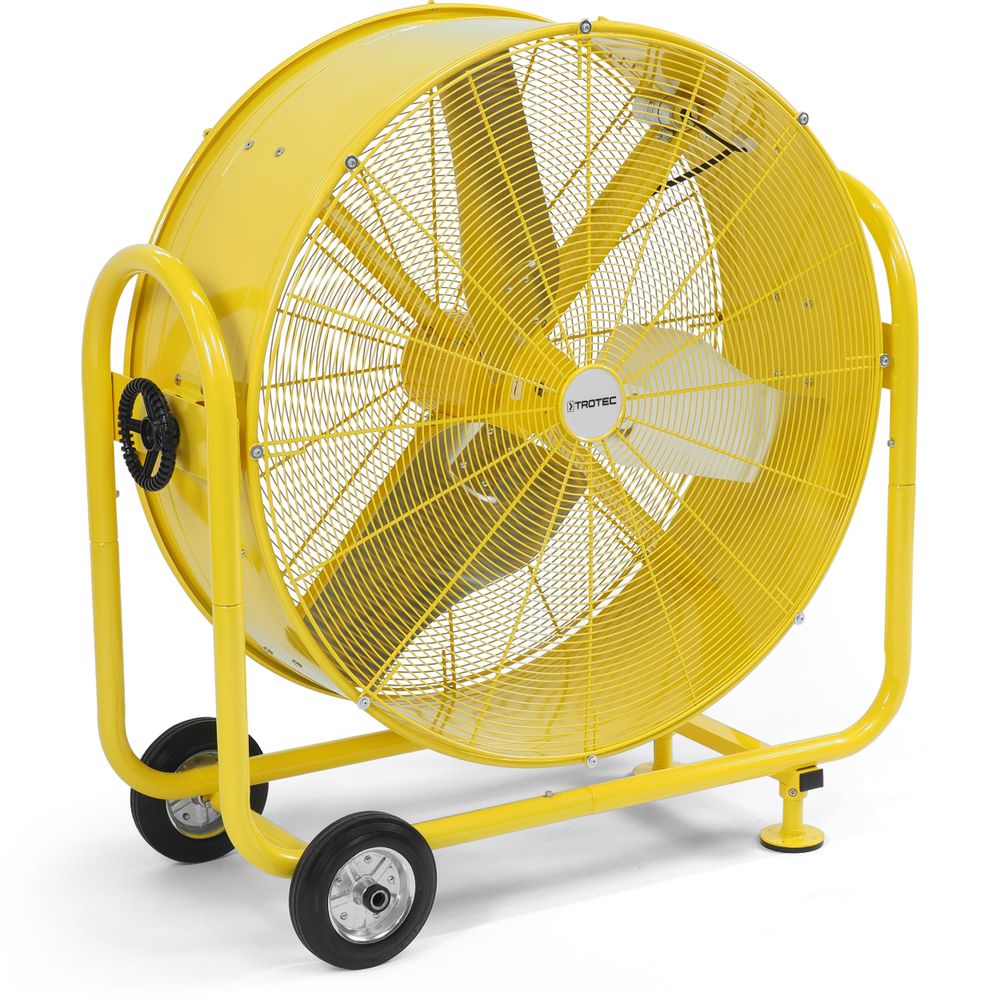

Trotec 1510004020 TTW 25000 S Drum Fan
Description
The TTW 25000 S fan is an ideal choice for all ventilation tasks in production environments, agriculture, or storage areas, where high air exchange rates must also be possible with minimal investment.
- Thanks to the two-stage adjustable air output of up to 27,600 m³/h, the required air exchange rates can be achieved even in large rooms or halls with this robust drum fan.
- Thanks to the mobile frame, the galvanized steel housing is easy to transport and features a tiltable fan drum for variable alignment of the fan to a vertical flow position.
- In this way, the airflow can also be directed towards high walls. or ceiling areas are directed, which also makes the TTW 25000 S wind machine a flexible solution for effective ventilation of stages, film and photo sets.
Practical benefits
- Budget-friendly option for semi-professional ventilation applications
- Air circulation capacity up to 27,600 m³/h
- Ready-to-use device with simple operation
- Adjustable tilt angle of the flow direction from horizontal to vertical position
- Flexible relocation thanks to trolley construction
Technical specifications
- Air volume level 1: 21,000 m³/h
- Air volume stage 2: 27,600 m³/h
- Rotor speed max.: 685 rpm
- Power stage 1: 0.52 kW
- Power stage 2: 0.65 kW
- Noise level 1: 65 dB (A)
- Noise level 2: 75 dB (A)
- Airflow: blow-out
- Fans: 2
- Connection voltage: 230 V / 50 Hz (2.9 A)
- Power consumption max.: 0.65 kW
- Electrical connection: CEE 7/7
- Fuse: 16 A
- Mobility: mobile
- Dimensions L x W x H: 1,060 x 525 x H 1,140 mm
- Weight: 44 kg
