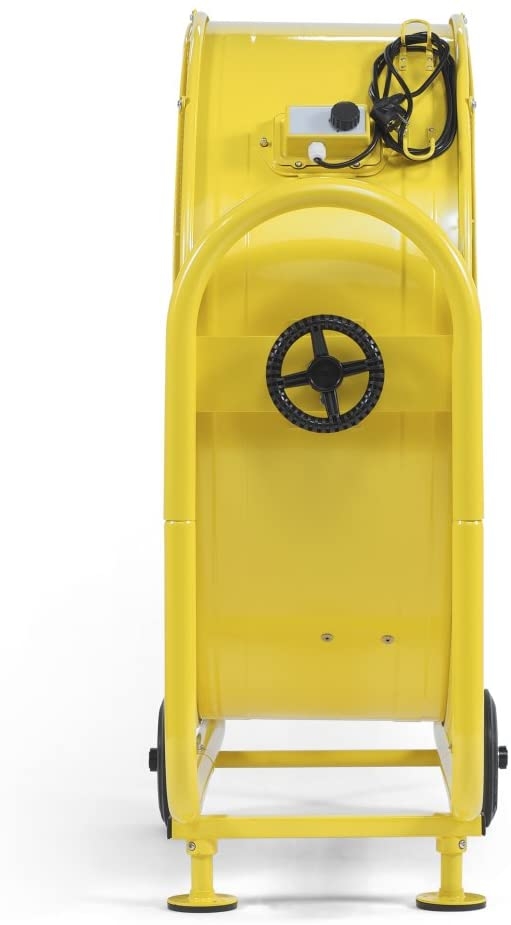

Trotec 1510004025 TTW 35000 S Drum Fan
Description
The TTW 35000 S fan is an ideal choice for all ventilation tasks in production environments, agriculture, or storage areas, where high air exchange rates must also be possible with minimal investment.
- Thanks to the two-stage adjustable air output of up to 32,400 m³/h, the required air exchange rates can be achieved even in large rooms or halls with this robust drum fan.
- Thanks to the mobile frame, the galvanized steel housing is easy to transport and features a tiltable fan drum for variable alignment of the fan to a vertical flow position.
- In this way, the airflow can also be directed towards high walls. or ceiling areas are directed, which also makes the TTW 35000 S wind machine a flexible solution for effect ventilation for stages, film and photo sets.
Practical benefits
- Budget-friendly option for semi-professional ventilation applications
- Air circulation capacity up to 32,400 m³/h
- Ready-to-use device with simple operation
- Adjustable tilt angle of the flow direction from horizontal to vertical position
- Flexible change of location thanks to carriage construction
Technical specifications
- Air volume stage 1: 24,600 m³/h
- Air volume stage 2: 32,400 m³/h
- Rotor speed max.: 850 rpm
- Power stage 1: 0.62 kW
- Power stage 2: 0.75 kW
- Noise level 1: 65 dB (A)
- Noise level 2: 75 dB (A)
- Power connection: 16 A
- Connection voltage: 230 V / 50 Hz
- Plug: CEE 7/7
- Mobility: mobile
- Dimensions (length x height x width): 1230 x 525 x 1140 mm
- Weight: 49kg
Scope of delivery
- In box
