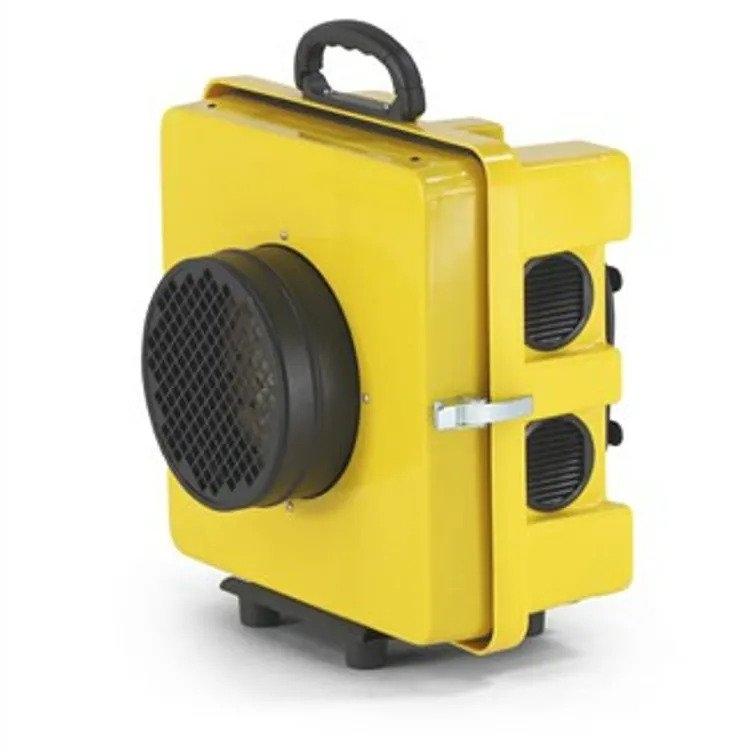

Trotec 1580000101 TAC 750 E air purifier
Description
- Whether it concerns remodeling, renovation, or remediation – wherever construction is taking place, the air quickly becomes burdened with harmful substances that endanger the health of employees and residents and pollute adjacent spaces.
- The lightweight TAC 750 E is the ideal solution for controlling harmful substances on smaller construction projects and preventing air pollution in adjacent spaces.
- Due to its compact dimensions, this machine can be transported anytime and by anyone.
- By using different filter types in a variety of combinations, this negative pressure device is suitable for spaces with different types of dust loads and can be used multifunctionally.
- As the lightest air purifier in its class, the TAC 750 E is easy to transport from one construction site to another and is then again easy to put into operation.
- The stepless control of the air volume enables energy-efficient adjustment of the fan capacity to achieve the required number of air changes per application.
- With the available range of filters, you can easily adapt the TAC 750 E for controlling construction dust in various situations or use it for extracting paint mist during airless or compressed air paint application.
- In addition to the standard connection for 203 mm hoses, thinner 127 mm air hose can also be connected to the TAC 750 E using the optional hose adapter.
- This ensures that the ideal hose connection is available for every application, whether for spot extraction or creating negative pressure.
practical benefits
- Professional quality, manufactured in Germany – original Trotec product
- Equipped with powerful fan
- Air volume infinitely adjustable
- Impact-resistant and robust ABS housing, 100% recyclable
- Easy to maintain, with quick-release fasteners for easy filter replacement

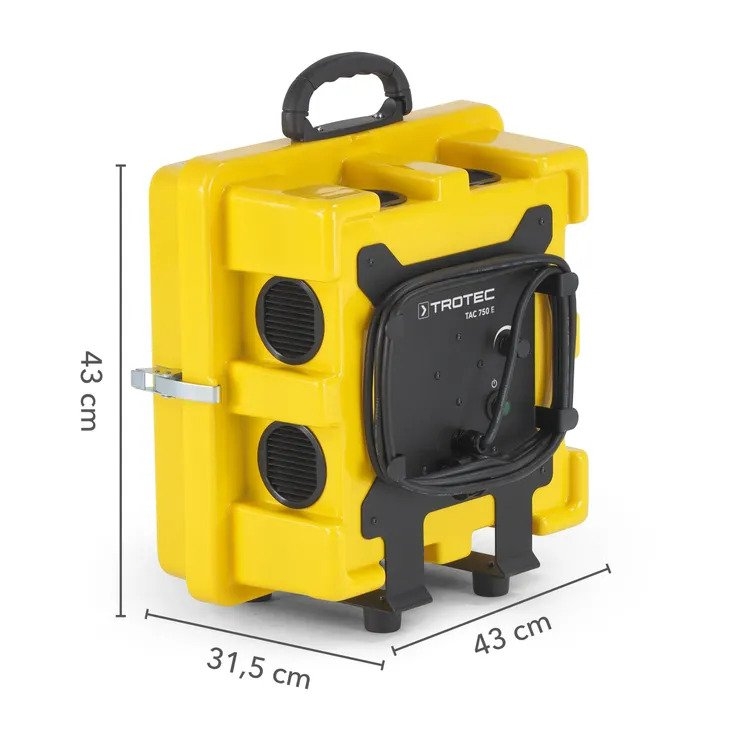

- Compact dimensions fit easily in a car trunk
- Two different hose diameters possible
- Practical cable storage option for storage and transport
Technical specifications
- Dust class according to DIN EN 60335-2-69 H
- Air volume Max. air flow rate [m³/h] 750
- Static negative pressure [Pa] 720
- Recommended air volume for filter classes H [m³/h] 290
- Mains connection 230 V/50 - 60 Hz
- Power consumption [kW] 0.12
- Nominal current consumption [A] 1
- Recommended fuse [A] 6
- Electrical connection Connector plug CEE 7/7, H05RN-F
- Air transport hose connection Suction side Ø [mm] 200
- Noise levels Distance 1 m [dB(A)] 77
- Filter combination Coarse dust (<= 3 LW/h) G4 suitable for rooms up to Coarse dust (<= 3 LW/h) [m³] 250
- Filter combination Fine dust (<= 3 LW/h) G4 suitable for rooms up to Fine dust (<= 3 LW/h) [m³] 250
- Filter combination Suspended dust (>= 10 LW/h) G4 + H13 suitable for rooms up to Suspended dust (>= 10 LW/h) [m³] 25
- Filter combination Hygiene range (>= 15 LW/h) G4 + H13 suitable for rooms up to Hygiene range (>= 15 LW/h) [m³] 16
- Carrying/transport handle(s)
- Non-marking rubber feet
- Stackable
Scope of delivery
- In cardboard box
