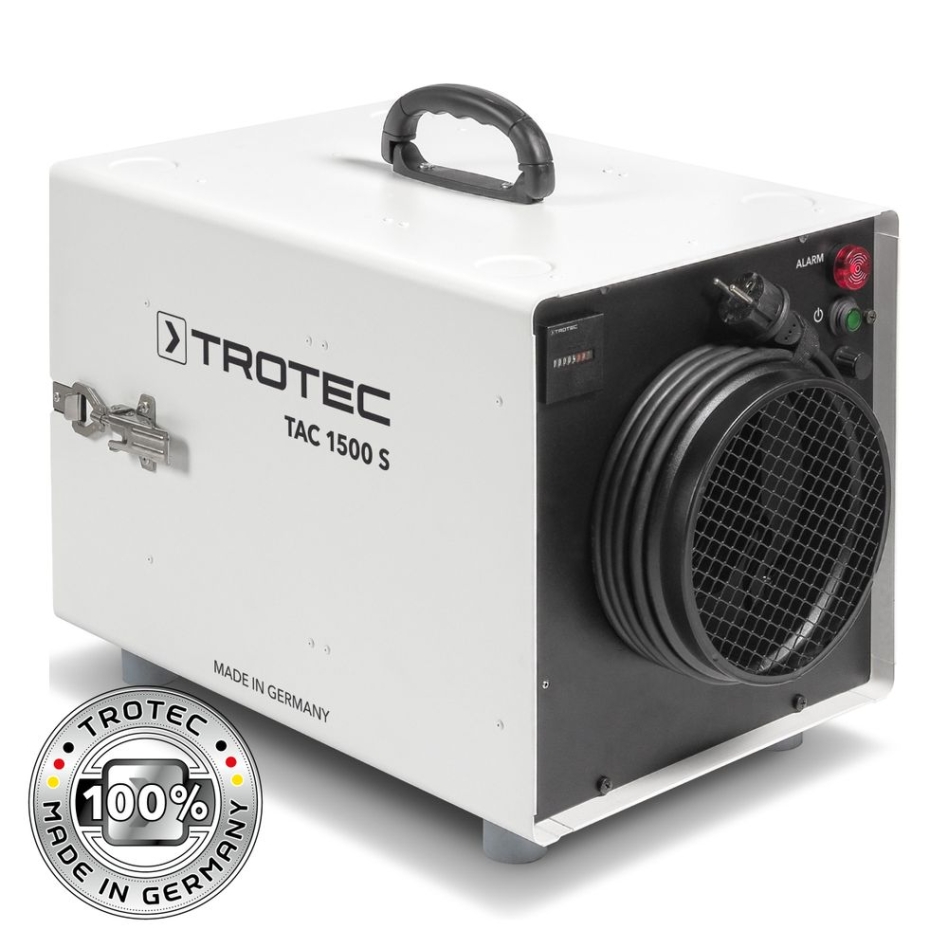

Trotec 1580000104 TAC 1500 S air purifier
Description
The TAC 1500 S is the economical solution for all users who do not want to miss out on the performance benefits of the professional TAC 1500 air purifier when used on construction sites and renovation projects, but do not want to use the device in hygienic or cleanroom environments.
- In addition to paint mist extraction for spray coatings or airless applications, the TAC 1500 S air purifier is suitable for dust extraction during construction work according to dust class M (OEL ≥ 0.1 mg/m³) or dust extraction for renovation work according to dust class H (OEL < 0.1 mg/m³)
- Thanks to the Monoventic control, you can - depending on your needs - continuously adjustable air volumes and variable filter combinations for every construction site situation.
With the TAC 1500 S air purifier, you filter coarse and fine dust or paint spray just as reliably as concrete dust, fine sanding or plaster dust, or highly hazardous quartz dust or asbestos fibers.
- The filter mounting frame can be flexibly equipped with one or two filter elements, for example with a G4 filter or an additional F7 filter, so that, together with the HEPA filter, a two- or three-stage air purification according to dust class H can be carried out.
- For effective paint mist extraction when using compressed air or airless systems, we recommend the option of installing Trotec paint mist filters.
Application-specific filter combinations and corresponding suitability of the room size:
- Coarse dust (3 air changes per hour) with filter G4: 75 m² / 220 m³
- Fine dust (3 air changes per hour) with filter G4 + F7: 37 m² / 110 m³
- Suspended dust (10 air changes per hour) with filter G4 + H13: 17 m² / 50 m³
Practical benefits
- Professional quality made in Germany - original Trotec manufacturing
- Flexible filter system for dust or paint mist extraction
- Dust class H, approved for asbestos removal according to TRGS 519
- Extremely robust and stackable metal housing
- Powerful premium fan
- Monoventic controller for precise, steplessly adjustable airflow
- Optical and acoustic filter change indicator
- Hour counter
- Stacking bins for space-saving storage and easy transport
- Robust clamping lock with movably mounted clamping hook for high vibration-resistant holding force and easy filter change
- Hose connections on both sides with the same diameter for greater flexibility
- Robust metal housing for air purification applications in harsh construction site environments
- Optional: dual counter for operating hours and kilowatt-hours (MID-compliant)
- Optional: H13 or H14 filter for filtering pollen, mold spores, fine dust, bacteria and viruses suitable for a wide range of applications.
Technical specifications
- Dust class (according to DIN EN 60335-2-69): dust class H
- Recommended air volume for dust class H: 500 m³/h
- Max. air volume flow: 1000 m³/h
- Static negative pressure: 900 Pa
- Stepless adjustment of air volume
- Filter change indicator: optical and acoustic
- Hour counter
- Motor power: 175 W
- Connection voltage: 230 V / 50-60 Hz
- Current
