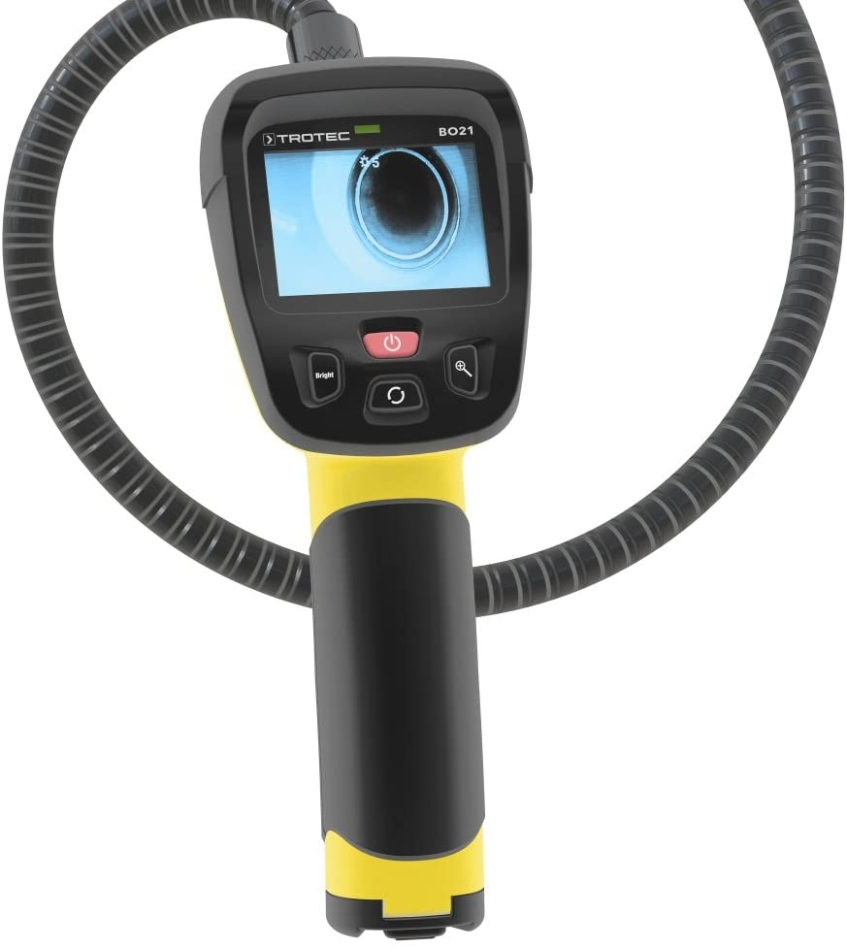

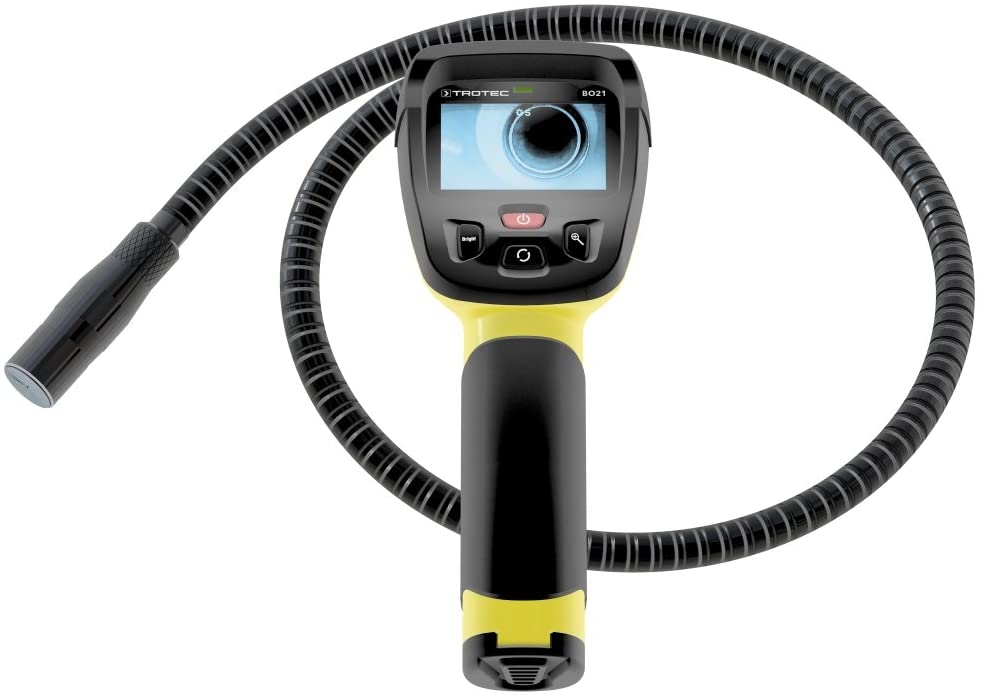

Trotec 3510009121 BO21 Videoscope
Description
The BO21 is a videoscope that is universally applicable for quick endoscopic visual inspections of hard-to-see areas or holes.
- A waterproof color camera with adjustable illumination is integrated into the tip of the bendable gooseneck probe.
- The powerful quadruple LED illumination of the user-friendly BO21 enables optimally illuminated inspection images in any situation, which are displayed in brilliant detail on the BO21's color LCD monitor.
- Thanks to the 180° image rotation function, inspection images are possible in a nearly upright position, even in very oblique areas.
Practical:
The BO21’s scope of delivery includes handy tools that allow you to further expand the application area of your BO21, for example as a salvage instrument for loose parts or for taking samples.
Practical benefits
- Ready for immediate use – just switch it on and get started
- Robust videoscope probe with fixed focus lens and waterproof camera head (IP67 protection class)
- Four high-intensity LED illumination with lighting controller
- 180° image rotation function
- Flexible, shape-stable gooseneck probe
- Mobile, network-independent use
- Automatic shutdown function
- Includes side mirror, hook, and magnetic mount
- Optimal price-performance ratio
- Various interchangeable probes optionally available as accessories
Technical specifications
- Probe: Ø 17 mm / length 1,000 mm
- Focusing range: 50 - 150 mm
- Illumination type: Quad LED
- Field of view: 68°
- Screen (resolution): 2.4 inch LCD (480 x 234 pixels)
- Zoom: 2x
- Operating/storage temperature: -10 °C to +50 °C
- Functions: brightness control, 180° image rotation function, automatic shutdown
- Power supply: 4x LR6 AA 1.5 V
- Weight: 580g
Scope of delivery
- Measuring device including battery
- Side mirror
- Hook and magnetic mounting
- Quick user manual
