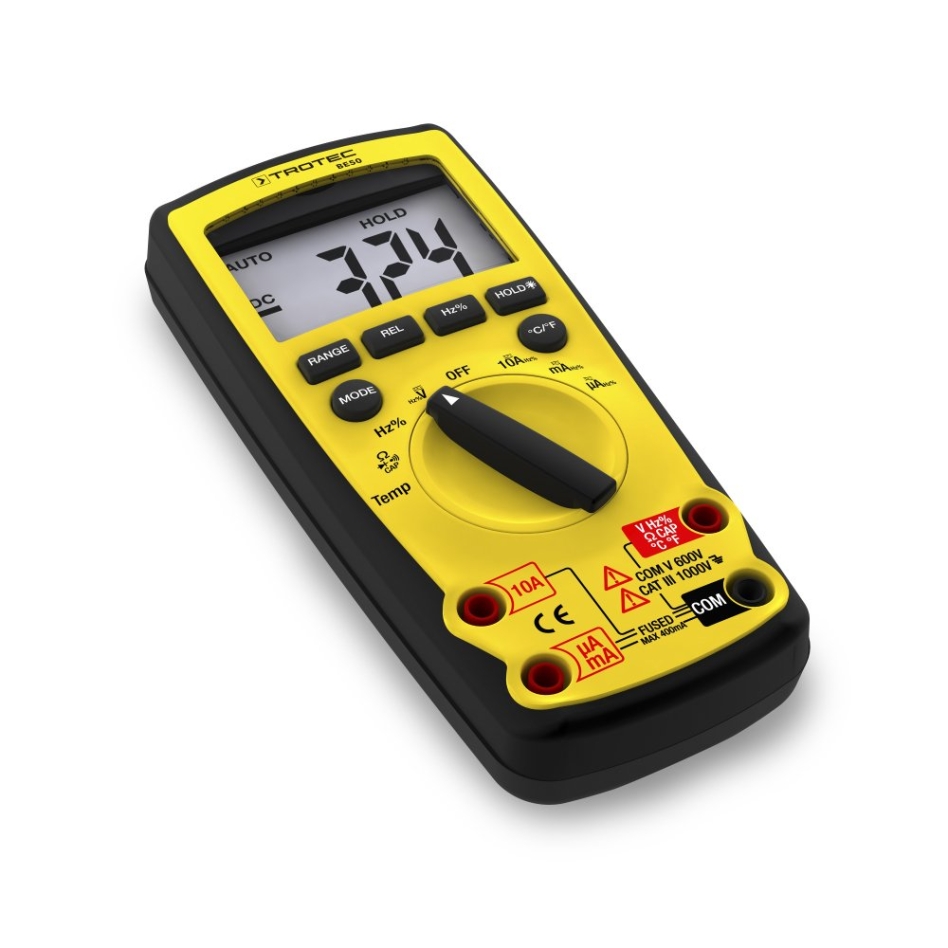

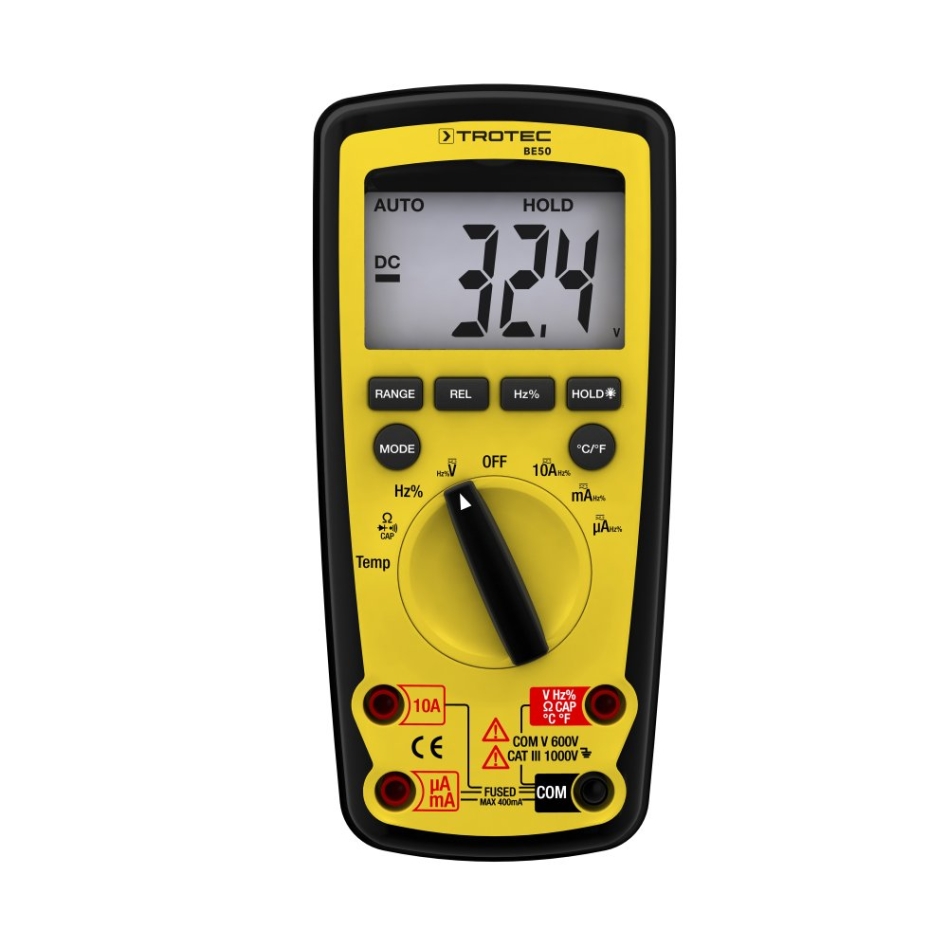

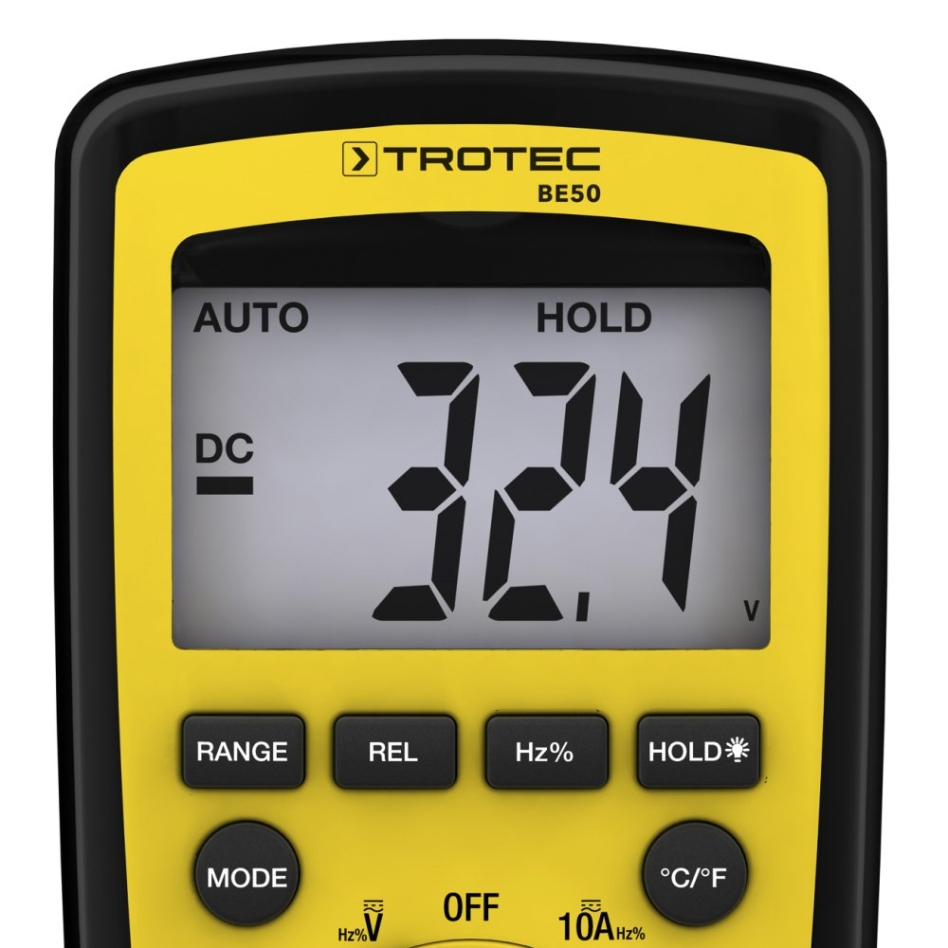

Trotec 3510205250 BE50 Digital Multimeter
Description
With a total of eleven measurement functions, automatic range selection, temperature measurement with type K contact sensor, hold function, and display illumination, this measuring device is suitable for a wide range of applications in the commercial or semi-professional sector.
- In addition to the fully practical features, the BE50 impresses with its IP67 protection class thanks to excellent workmanship and robustness:
- The measuring device and test leads are double-insulated and meet protection class II
- Moreover, this digital multimeter is extremely shock-resistant and absolutely dust- and waterproof – making it ideally suited for heavy daily use!
Benefits for the practice
- Contactless voltage test
- Digital multifunctional measuring device with eleven measuring functions
- Particularly wear-resistant and efficient
- Automatic range selection
- CAT III 1000V / CAT IV 600V
- Impact-resistant housing
- Protection class IP67 - dust and water-resistant
- Insulation protection class II for meter and test leads
- Temperature measurement with type K contact sensor
- hold function
- display illumination
- Optimal price-performance ratio
Technical specifications
- Display: LCD with four-digit readout
- Measurement range (accuracy) voltage: 0.1 mV to 1,000 V (UDC ± 1.2%, UAC ± 2%)
- Measurement range (accuracy) current: 100 nA to 10 A (DC ± 1.5%, AC ± 2.5%)
- Measurement range (accuracy) capacitance: 10 pF to 100 µF (± 3%)
- Measurement range (accuracy) resistance: 0.1 Ω to 10 meters (± 1.2%)
- Measurement range (accuracy) Frequency: 1 MHz to 10 MHz (± 1.2%)
- Temperature measurement range (accuracy): -20 °C to +760 °C (± 3%)
- Duration measurement range (accuracy): 0.1% to 99.9% (± 1.2%)
- Functions: measurement of voltage, current, capacitance, resistance, frequency, contact temperature, duty cycle; Continuity test, diode test, automatic range selection, hold function, illuminated display, autom
- Battery test, automatic shutdown
- Measuring circuit category: CAT III 1,000 V / CAT IV 600 V
- Safety: EN 61326, EN 61010-1, EN 6100-02-031
- Insulation: protection class II
- Protection degree: IP67
- Dimensions: 182 x 82 x 55 mm
- Weight: 320g
Scope of delivery
- Meter
- Testing leads
- Contact sensor type K
- Battery
- Manual
