Unior 624137 1011CEV4 Filled 127-piece Tool Trolley
Special Features
- The Unior 624137 1011CEV4 filled 127-piece tool trolley is a professional tool trolley, designed for workshops and garages that require a comprehensive and organized set of tools. This trolley offers a complete range of 127 high-quality tools, neatly stored in a robust and mobile tool trolley.
Advantages
- Coated with eco-color according to Qualicoat quality standard
- Opening and closing drawers is very easy thanks to the uniform design – the drawer handle on the top allows users to grasp and open a drawer synchronously.
- Drawer locking mechanism prevents unwanted opening of drawers
- Drawers with non-slip synthetic lining
- Central locking with lock and folding key
- Lock with key included and foam keychain
- Fully extendable drawers with top-quality ball-bearing runners
- Oil- and acid-resistant wheels with a diameter of 125 mm, one of which has a brake, which prevents the wheel from turning and swiveling blocks
- Dynamic load capacity of carriages: 500 kg
Technical data
- Static load capacity of carriage without wheels: 1600 kg
- Maximum capacity of each drawer: 45 kg
- 7 drawers (5x L 563 x W 365 x H 70mm, 2x L 563 x W 383 x H 150mm)
- Basic dimensions with handle and wheels L 800 x W 440 x H 923mm
- Total capacity of the drawers: 140 liters
- Drawers compatible with SOS tool drawers 1/3, 2/3, 3/3
Scope of delivery

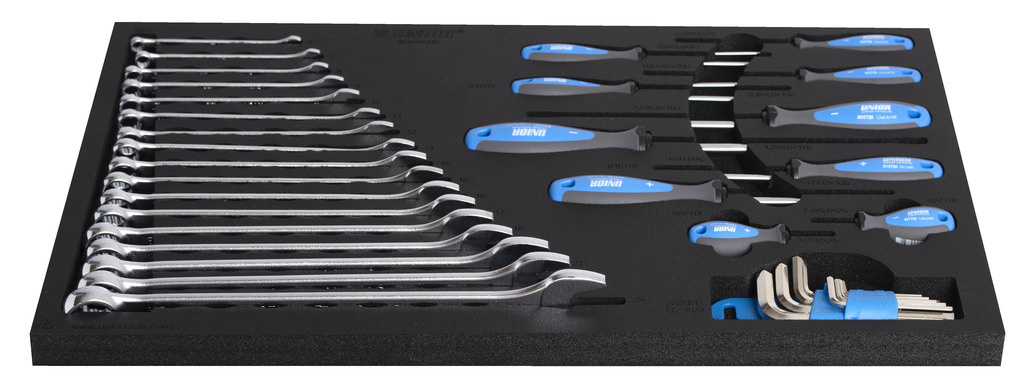

- Key and screwdriver set 964/46SOS in SOS module consists of:
- 17x long combination wrench (item 120/1) sizes 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24
- 9x Allen wrench (item 220/3) sizes 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 on plastic clip
- 6x flat screwdriver TBI (item 605TBI) size 0.4x2.5x75, 0.5x3.0x80, 0.6x3.5x100, 0.8x4.0x100, 1.2x6.5x150, 1.2x8.0x175
- 2x Phillips screwdriver TBI (item 615TBI) size. PH 1x80, PH 2x100
- 1x short flat screwdriver TBI (item 627TBI) dim. 1.0x5.5x25
- 1x short Phillips screwdriver (PH) TBI (item 626TBI) dim. PH 2x25
- SOS tool drawer for 964/46SOS
- Socket set 964/47SOS in SOS module consists of:
- 11x socket wrench 1/4", 12-point (item 188/2 12P) sizes 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14
- 18x screwdriver socket 1/4"; hexagon (item 187/2HX size 3, 4, 5, 6, 7), TX profile (item 187/2TX size TX8, TX10, TX15, TX20, TX25, TX27, TX30, TX40), cross head (item 187/2PH size PH 1, PH 2), flat (item 187/2SL size 0.8x4, 1.0x5.5, 1.2x7)
- 1X Reversible ratchet 1/4"
- accessories 1/4"; 1x sliding T-handle, 2x extension bar (55, 150mm), 1x universal joint
- 1x spinner handle 1/4"
- 20x socket wrench 1/2", hexagon (item 190/1 6P) sizes 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32
- 1X Reversible ratchet 1/2"
- accessories 1/2"; 1x sliding T-handle, 2x extension bar (125, 250mm), 1x universal joint
- 4x pin punch (item 641/6) size 3, 4, 5, 6
- 1x center punch (item 642/6) in size 5
- 2x flat chisel (item 660/6) in sizes 150, 200
- SOS tool drawer for 964/47SOS

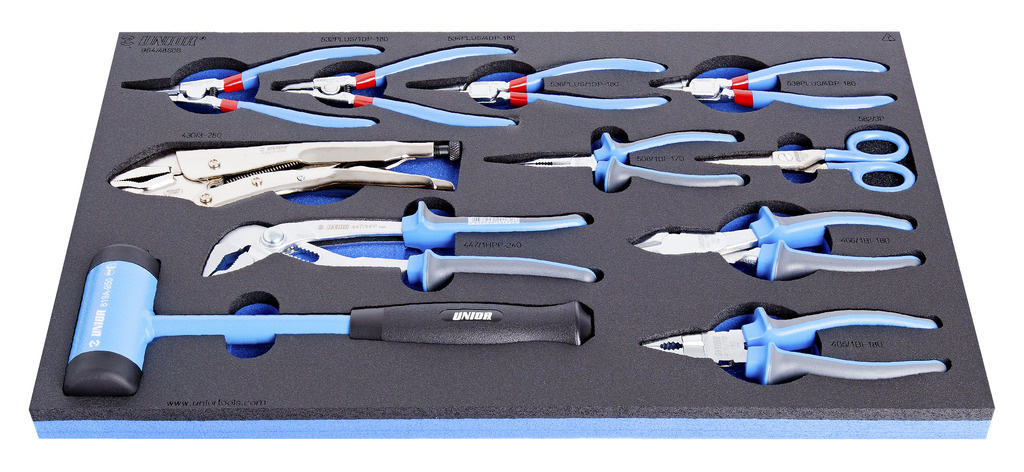

- BI pliers and hammer set 964/48SOS in SOS module consists of:
- 1x combination pliers (item 406/1BI) size 180
- 1x locking pliers (item 430/3) size 250
- 1x water pump pliers (item 447/1HPP) size 240
- 1x heavy-duty side cutting pliers (item 466/1BI) size 180
- 1x straight long-nosed pliers with side cutters and pipe grip (item 508/1BI) size 170
- 2x external circlip pliers, straight and curved, size 180
- 2x internal circlip pliers, straight and curved, size 180
- 1x Electrician's shears (item 582/3P) size 145
- 1x impact hammer (item 819A) size 45
- SOS tool drawer for 964/48SOS
- Tool set 964/49SOS in SOS module consists of:
- 1x tape measure (item 710P) size 3m
- 1x utility knife (item 556A) size 160x18
- 1x saw (item 753P) size 150
- file with handle, semi-smooth, size 200 mm; 1x flat, 1x half-round, 1x triangular, 1x square, 1x round
- 1x locksmith's hammer (item 812) size 400
- 1x plastic hammer (item 820) size 32
- 1x tire lever with handle (item 300/2C) v size 320
- 1x feeler gauge (item 701) v size 0.05 - 1x20
- 1x brush for cleaning disc brake pads (item 2035)
- 1x flexible pick-up tool with magnet (item 2087)
- SOS tool drawer for 964/49SOS
