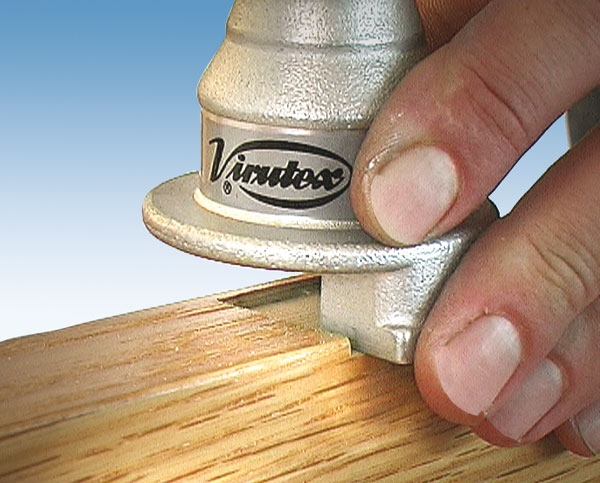

Virutex FR129VB/250 Door Hinge Milling Machine
Special milling cutter for door hinges and all types of hardware for door frames and doors. Fits easily without measuring and without leaving any marks.
Special Features FR129VB
- Special cutter for door hinges and all types of hardware for door frames and doors.
- With larger clamping opening!
- Fits easily without measuring and without leaving any marks.
- Equipped with HSS cutter and guide ring for 9.5 cm door hinges.
- Guide rail provided for routing three or four hinges + carrying case included.
Technical data FR 129 VB
- Motor: 1000 W
- Rotation speed: 14,000 - 27,000/min
- Clamping sleeve: 8 mm
- Max. cutter diameter: 32 mm
- Max. trim diameter (with 16mm diameter cutter): 165x74 mm
- Max. trimming depth: 11 mm
- Max. trimming depth (with concealed hinge kit): 40 mm
- Maximum clamp opening: 250 mm
- Minimum clamp opening: 33 mm
- Weight: 4.3 kg
Standard accessories included
- Machine standard equipped with template, HM cutter (1140059) and guide ring 2950105, two guide rails for three or four hinges, operating keys, tool case.
