Virutex FR292R Tilting Edge Router
The only router capable of finishing the edges of panels, straight or at an angle, without replacing the cutter.
Special Features FR292FR
- Its wide base provides good guidance and allows you to route easily.

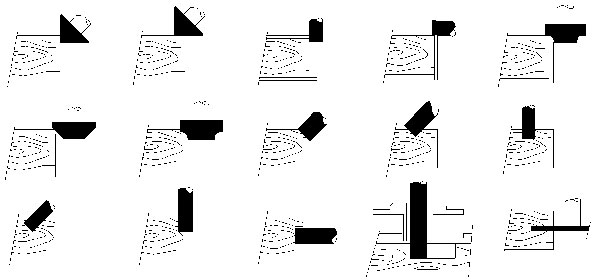

- It offers you a whole range of additional routing possibilities, thanks to the unique tilting and adjustment system.
- Equipped with a powerful 750 W motor with electronic speed control and constant torque control for a constant motor speed during operation. External dust connection.
- Easier and more accurate milling with the special 90° cutter:

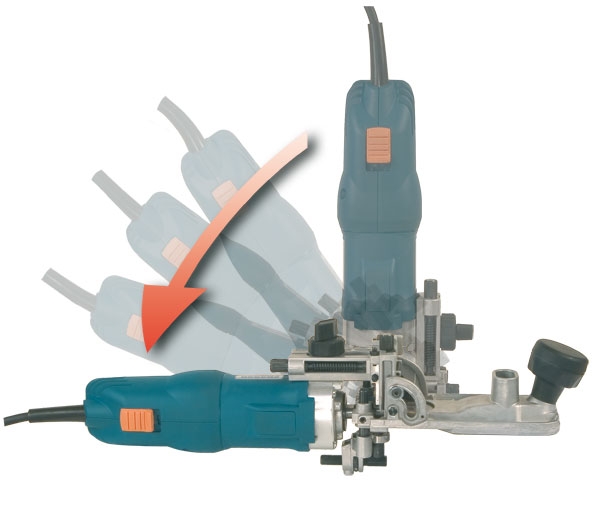

- The machine body can be tilted to approximately 46.5° so that the edge of the cutter is at 1.5° relative to the surface, thus avoiding damage when milling edges.
- Once you have milled the protruding edges from the top and bottom of the panel, you can trim the attached edges with a simple adjustment of the machine, and if you tilt the machine at 45°, you can chamfer flush.
- Milling with the straight cutter: The tiltable motor allows you to mill straight edges with the straight cutter (included as standard) as well as the protruding edges.
- Excess panel material is milled with the body in a vertical position and the edges with the body tilted at 91.5°, i.e., 1.5° below the surface. to avoid damage.
Technical data FR 292 FR
- Double insulation Input power: 750 W
- Max. Cutter diameter: 25 mm
- Collet 8 mm
- Short speed: 14,000-30,000 / min
- Weight: 2.2 kg
Standard included:
- 90 º Cutter for trimming and creasing (1140087)
- Straight Cutter Ø 18 mm for trimming and creasing (1140016)
- Collet 8 mm
- Copier probe with ball bearing
- Guide
- Case
