Vogt VTS 60-80 L Turbo Spade Pneumatic Gardener Garden
Special Features
- There are machines for all outdoor tasks, but they all have one problem: the delicate, the small, the last corner. At this point, it is important to use the right garden tool to achieve the right result. Devices like the VOGT TurboSpade replace the shovels, pickaxes, small compactors, or hand tampers that are otherwise used. The six-kilogram pneumatic shovel is a garden tool that uses only a 230 V compressor, which offers advantages, especially on construction sites in beautifully landscaped gardens: precision work instead of damage to the land. The ergonomic VOGT TurboSpade fits in a case with the most important tools: the shovel blade loosens clay and compacted gravel, the compactor plate reaches the last corner, can be guided precisely, and achieves compaction levels like large machines. A chisel for rocks and foundations, a ram for small posts – that is normally all you need. Whether it concerns reinforcing banks, clearing land, or creating outdoor facilities: the right garden tool is a powerful help. Thanks to strong compaction, edges, outdoor steps, and borders can be secured frost-free and cost-effectively with gravel, entirely without concrete. With an injection hose, it becomes a VOGT ventilation lance. It shoots a large volume of air deep into the ground. Without damaging the vegetation, the compressed air expands the capillaries and allows waterlogging to drain away, creating space for the roots to continue growing. Even fertilizer and granules can be added in a targeted manner. The VOGT lance, which can be used with construction compressors starting from 3.5 cubic meters per minute, blows at up to two and a half times the speed of sound and is used to quickly and effectively expose roots and supply lines. Thanks to the specially swirled, ‘gentle’ air, no damage whatsoever occurs. Thanks to a whole range of handy accessories, the VOGT lance is universally applicable.
- With the right garden tools, the work becomes easier and excellent results are achieved. All our techniques are of professional quality and therefore an effective solution for a wide range of tasks.
Advantages
- Fast tool change
- Wide range of possible applications
- Effective working thanks to high impact force
- Energy-saving, ergonomic way of working
- Durable quality product - made in Germany
- Various lengths with a large selection of tools
- Low air consumption allows the use of
- 230 volt or petrol compressors
- Body-friendly work thanks to low weight and vibration damping
Applications
- Excavating shrubs
- Digging in heavy soil
- Root penetration
- Excavation for foundations
- Creating narrow and deep head holes
- Compacting dry stone walls and edges
- Breaking up stony and frozen ground
- Precise compaction work, even in narrow spaces
- Emission-free excavation and compaction work with a single device
Technical data
- Model VTS 60-80
- Vibration dampened No
- Length 80 cm
- Weight 7.1 kg
- Max. Number of strokes 1,960/min
- Air consumption 255 l/min/6 bar
- Operating pressure 3.0-6.0 Bar
- Tool holder taper 18 mm
- Sound pressure emission level LPA 105 dB (+3 dB on.) / 6 bar
- Sound power level LWA 105 dB (+3 dB on.) / 6 bar
- Vibration value 4.6 m/s²
- Uncertainty 1.0 m/s²

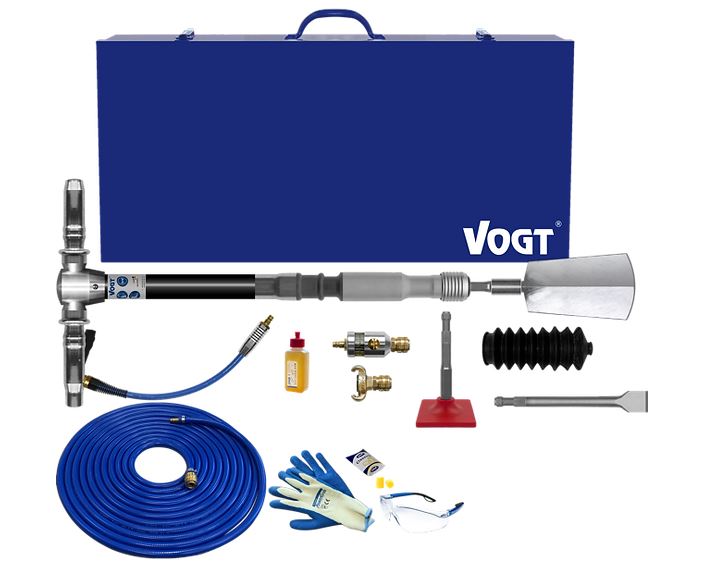

Scope of delivery
- 1 Digging spade GA 140.18 H
- 1 Wide chisel M 340.18
- 1 Compressor plate V 1120.18
- 1 Adapter 3/4 inch to standard connection Z 200
- 1 Precision linseed oil gun Z 300
- 1 Compressed air hose 10 m
- 1 Dirt remover
- 1 VOGT special oil 0.1 l
- 1 Pair of work gloves
- 1 Safety glasses
- 1 Earplugs
- 1 Metal transport case
- 1 User manual
