Vogt VTS 60-80 T XL Turbo Spade Pneumatic Civil Engineering Services Road Construction
Special Features
- VOGT is also your point of contact when it comes to equipment for pipeline construction or civil engineering. With a variety of different equipment, you are guaranteed to find exactly the civil engineering equipment you need.
- The VOGT Turbo Spade with T-handle, on the other hand, is shaped downwards for ergonomic working. It breaks asphalt, compacts gravel or frozen ground, compacts narrow trenches, and tamps concrete edges. This means it replaces both pickaxes and shovels and even uses the compressed air from the truck. However, a construction compressor is usually also present.
Advantages
- Fast tool change
- Wide range of possible applications
- Effective work thanks to high impact force
- Energy-saving, ergonomic way of working
- Durable quality product - made in Germany
- Various device lengths with a wide selection of tools
- Low air consumption enables the use of 230-volt compressors
- Body-friendly work thanks to low weight and vibration damping
Applications
- Foundation and shaft connection work
- Manual digging in heavy, stony soil
- Excavation for foundations and house connections
- Breaking up concrete, stone, asphalt, and icy soil
- Precise compaction work, even in narrow spaces
- Digging up perennials, penetrating roots
- Driving in road guides and snow poles
- Loosening and loosening cohesive and compacted soil
- Compacting between skid bars and road caps
Technical data
- Model VTS 60-80
- Vibration dampened Yes
- Length 80 cm
- Weight 7.1 kg
- Max. Number of strokes 1,960/min
- Air consumption 255 l/min/6 bar
- Operating pressure 3.0-6.0 Bar
- Tool holder taper 18 mm
- Sound pressure emission level LPA 105 dB (+3 dB on.) / 6 bar
- Sound power level LWA 105 dB (+3 dB on.) / 6 bar
- Vibration value 4.6 m/s²
- Uncertainty 1.0 m/s²

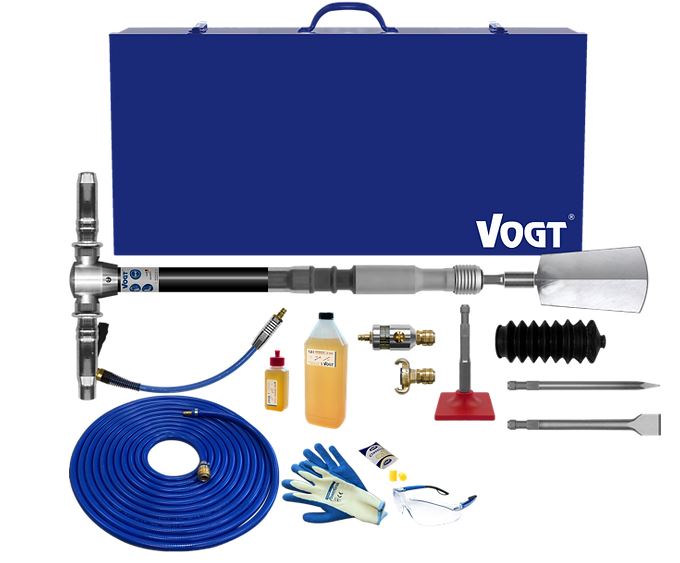

Scope of delivery
- 1 Digging spade GA 140.18 H
- 1 Point chisel M 100.18
- 1 Wide chisel M 340.18
- 1 Compressor plate V 1120.18 H
- 1 Adapter 3/4 inch to standard connection Z 200
- 1 Precision linseed oil gun Z 300
- 1 Compressed air hose 10 m
- 1 Dirt repellent
- 1 VOGT special oil 0.1 l
- 1 Pair of work gloves
- 1 Safety glasses
- 1 Earplugs
- 1 Metal transport case
- 1 User manual
