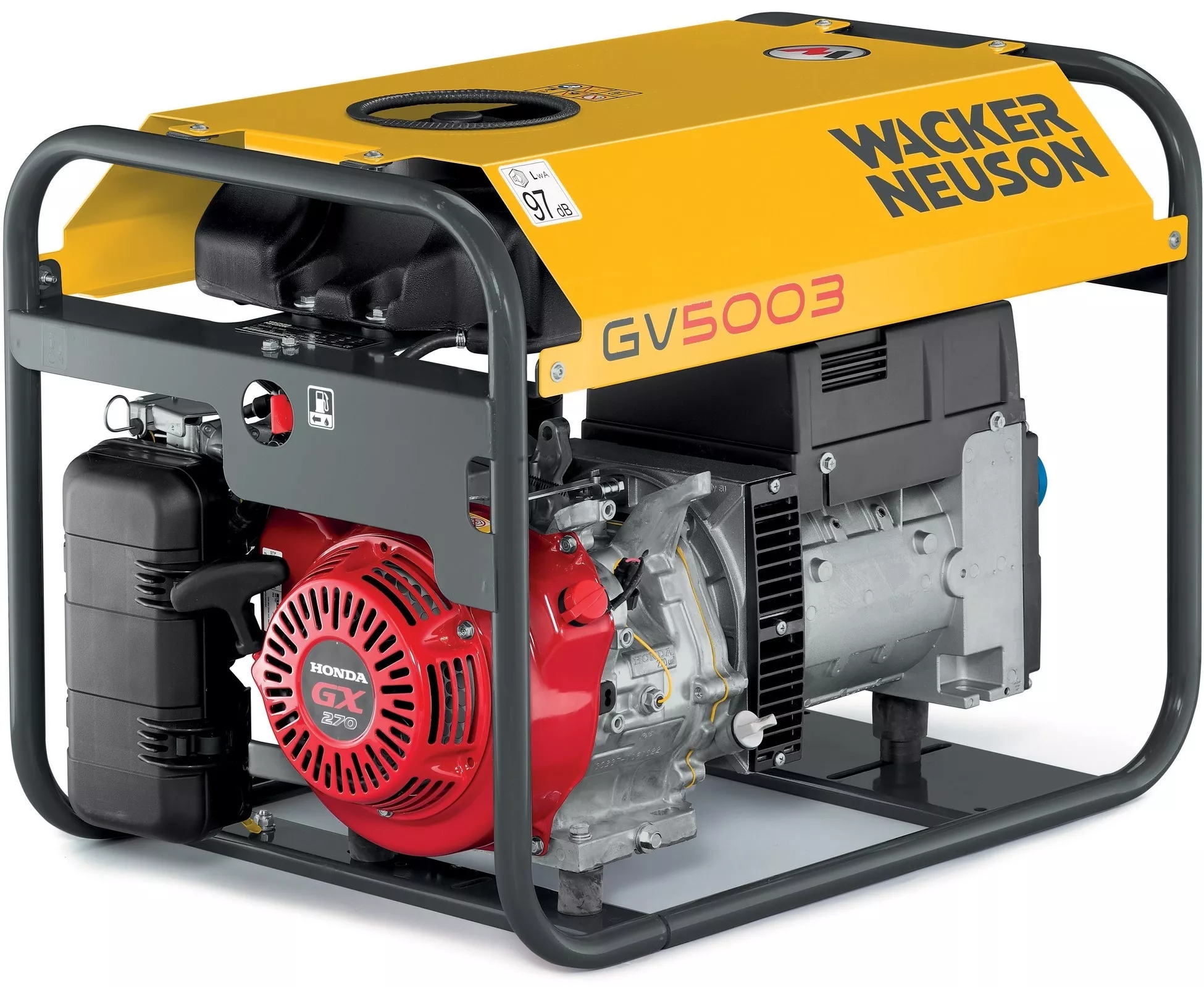

Wacker-Neuson 5100002154 GV5003A Petrol Generator 4200 Watts
Special features
- Reliable power supply in three power classes.
- The generators from the GV series are efficient synchronous generators that offer an uninterrupted and reliable power supply, even during continuous use.
- The GV series includes models in three different power classes, as well as AC and three-phase versions.
- In addition to use on construction sites, these portable generators are equally suitable for industrial and commercial applications and for agriculture.
Highlights
- Robust safety frame
- Large tank with long run time
- Compact dimensions
- Honda 4-stroke engine
- No grounding required
Technical data
- Aggregator continuous power 1~ (COP) 3.2 kW
- Aggregator continuous power 3~ (COP) 4.2 kW
- Aggregator maximum power (MAX) 4.3 kW
- Length 729.0 mm
- Width 500.0 mm
- Height 536.0 mm
- Operating weight 80.0 kg
- Generator type NSM T100 SC
- Output current 1~ 14.1 A
- Output voltage 400.0 V
- Output frequency 50.0 Hz
- Efficiency factor 1~ 0.9 cos π
- Nominal speed 3,000.0 1/min
- Efficiency factor 3~ 0.8 cos π
- Phase 3.0 ~
- Grounding Protected separation
- Output current 3~ 8.0 A
- Protection degree IP23M
- Sound power LWA, guaranteed 97.0 dB(A)
- Main circuit breaker speed 10.0 A
- Available voltage 3~ 400.0 V
- Available voltage 1~ 230.0 V
- Socket type CEE 3P 32A 6h 230V 50Hz
- Number of sockets 3.0
